COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06734		Well Classification: OW Status: PR - 9/1/2025
Well Name/No:STATE #1-26
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2025
FacilityID:204649LocationID:320721
County:ARAPAHOE #005Location:NESW 26 4S62W 6
Field:SIDEWINDER - #77458Elevation:5572 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2130FSL  1864 FWLLat/Long: 39.671916 / -104.296881Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.672269 / -104.297199Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

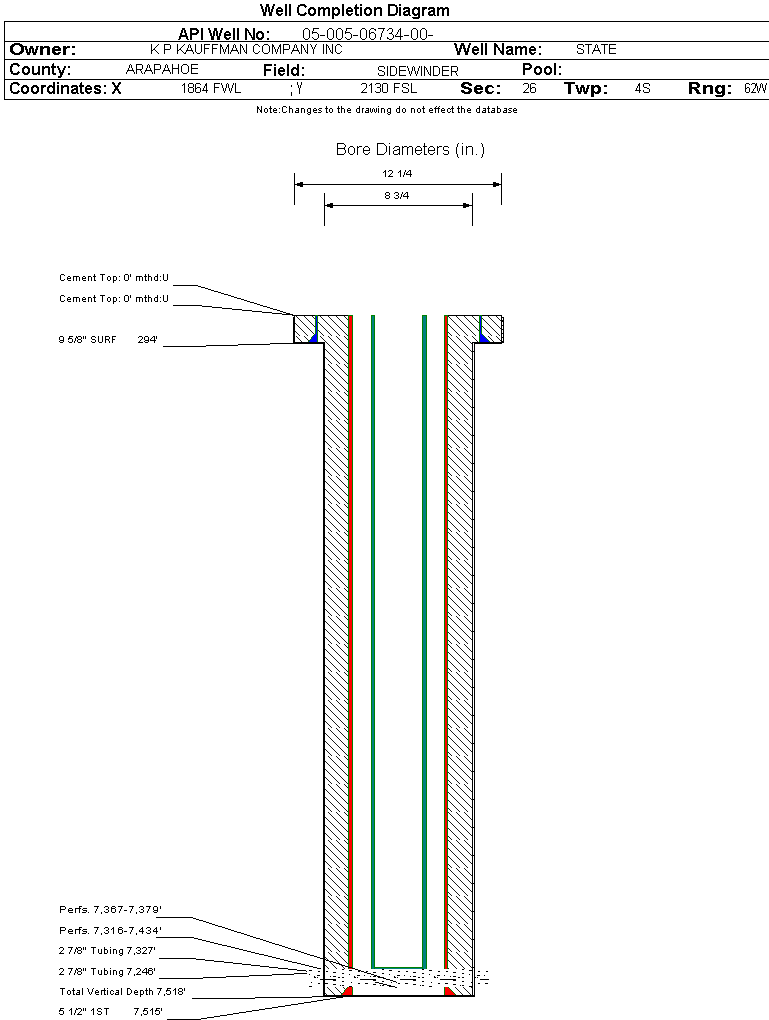

Wellbore #00             Wellbore Classification: OW             Status: PR - 9/1/2025             Measured TD: 7518 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 9/1/2025
Wellbore Permit
Permit #:19760849 Expiration Date:9/14/1977
Proposed Depth/Form:7500 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 80, Drill Unit: E2SW
Wellbore Completed
Completion Date:9/5/1984
Spud Date:9/23/1976Spud Date Is:ACTUAL
Measured TD:7518 ft.Measured PB depth:7331 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:INDUCTION ELEC. LOG BOREHOLE COMPENSATED SONIC LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 294 ft., Weight: 40 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 7515 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6566 ft.
FORT HAYS6900 ft.
CARLILE6934 ft.
GREENHORN7007 ft.
GRANEROS7062 ft.
BENTONITE7223 ft.
D SAND7315 ft.
J SAND7366 ft.
SKULL CREEK7509 ft.

Formation JSND                     Formation Classification:  OW                     Status:  CM - 12/26/1984                Interval Top: 7367 ft.    Interval Bottom: 7379 ft.

 Completed Information for Formation J SAND
1st Production Date:6/14/1977Choke Size:0.000 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:9/5/1984
Treatment Summary:SEE SCAN DOCUMENT # 420573
Tubing Size:2.875 in.Tubing Setting Depth:7246 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/23/1976Test Method:FLOWING
Hours Tested:0.75Gas Type:
Gas Disposal:
Test TypeMeasure
CALC_MCF_GAS 4.8
MCF_GAS 1.5
TUBING_PRESS 685
Perforation Data:
Interval Top:7367 ft.# Of Holes:
Interval Bottom:7379 ft.Hole Size:

Formation DSND                     Formation Classification:  OW                     Status:  PR - 9/1/2025                  Interval Top: 7316 ft.    Interval Bottom: 7434 ft.

 Completed Information for Formation D SAND
1st Production Date:10/6/1984Choke Size:
Formation Name:D SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:9/5/1984
Treatment Summary:SEE SCAN DOCUMENT # 420562
Tubing Size:2.875 in.Tubing Setting Depth:7327 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/26/1984Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 2
BBLS_OIL 17
MCF_GAS 35
Perforation Data:
Interval Top:7316 ft.# Of Holes:
Interval Bottom:7434 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)26
Total Gas Produced (MCF)47
GOR1807
GOR DeterminationBOE
Average BOE per Day0.089
Average MCFE per Day0.554

 Federal Financial Assurance  i

 Tribal Well  i No
