COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-005-06556		Well Classification: OW	Status: TA - 1/1/2017
Well Name/No:	STATE OF COLORADO 'W' #1 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	RENEGADE OIL & GAS COMPANY LLC - 74165 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	70/8032-S
Facility Status:	TA	Status Date	1/1/2017
FacilityID:	204471	LocationID:	320689
County:	ARAPAHOE #005	Location:	SWSE 24 5S65W 6
Field:	LOWRY - #52075	Elevation:	5872 ft.
Basin:	DENVER (DJ) BASIN
Planned Location:	660FSL 1980 FEL	Lat/Long: 39.596655 / -104.611230	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.596720 / -104.611200	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: OW Status: TA - 1/1/2017 Measured TD: 8560 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: OW TA - 1/1/2017
Wellbore Permit
Permit #:	19720691	Expiration Date:	8/23/1973
Proposed Depth/Form:	8575 ft.
Surface Mineral Owner Same:	Not available
Mineral Owner:	STATE	Surface Owner:	STATE
Unit:		Unit Number:
Formation And Spacing:	Code: JSND , Formation: J SAND , Order: , Unit Acreage: 80, Drill Unit: S2SE

Wellbore Completed
Completion Date:	9/8/1972
Spud Date:	8/27/1972	Spud Date Is:	ACTUAL
Measured TD:	8560 ft.	Measured PB depth:	8512 ft.
True Vertical TD:		True Vertical PB depth:
Log Types:	Induction Electric - SP (9/7/1972), Compensated Formation Density - GR (9/7/1972), GR-CCL (9/11/1972), CBL (7/28/2003), CBL (7/7/2017)
Log Types:	IES, FDC-GR.

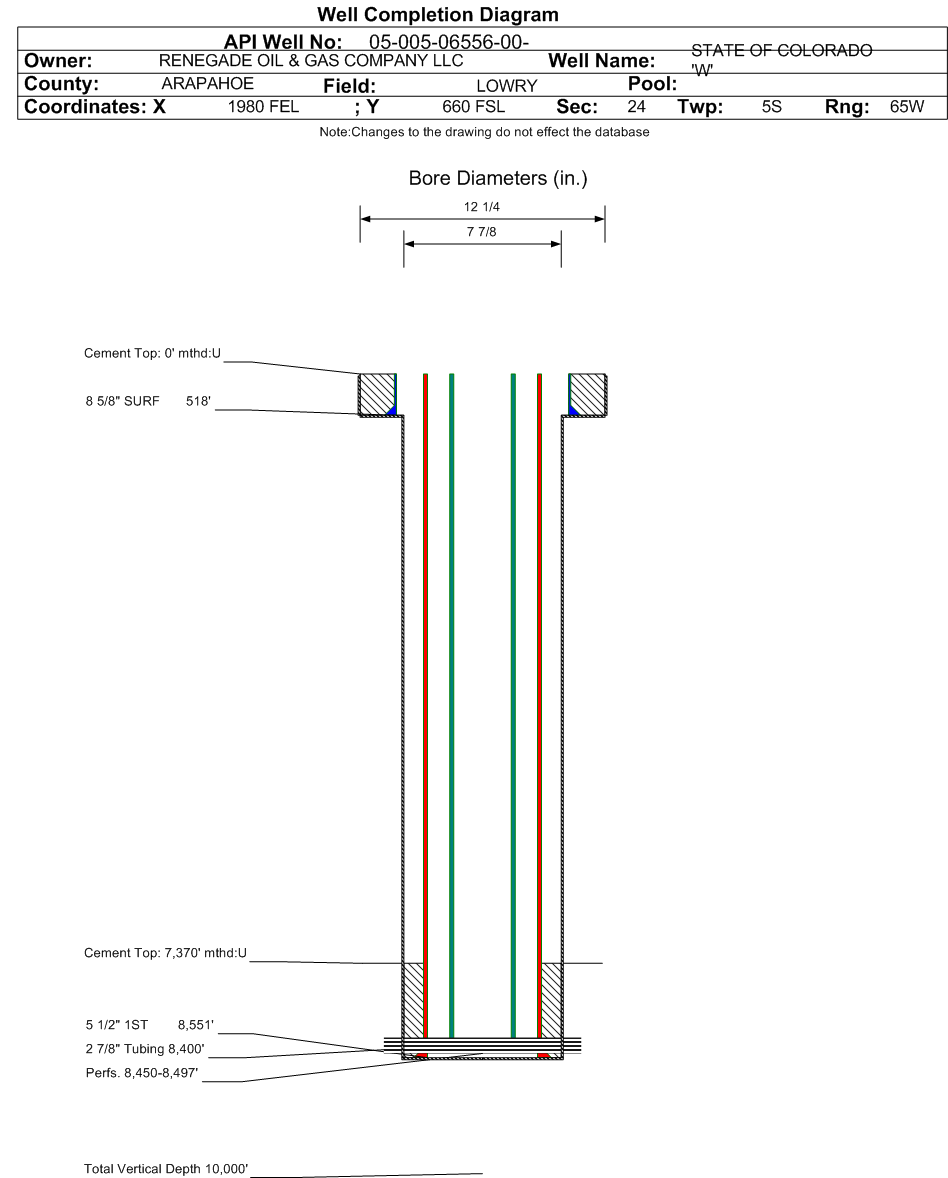

Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 518 ft., Weight: 24 , Citings Type: ACTUAL
Cement:	Sacks: 375, Top: 0 ft., Bottom: 518 ft., Determination Method: VISU
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8551 ft., Weight: 15.5 & 17, Citings Type: ACTUAL
Cement:	Sacks: 350, Top: 7370 ft., Bottom: 8551 ft., Determination Method: CBL
Casing:	String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 2114 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:	String Type: S.C. 1.1 , Top: 1680 ft., Depth: 2114 ft., Bottom: 2122 ft., Sacks: 400, Method: DV TOOL
Formation	Interval Top	Log Bottom	Cored	DSTs
FOX HILLS	1875 ft.
HYGIENE	3047 ft.
NIOBRARA	7694 ft.
FORT HAYS	8012 ft.
D SAND	8415 ft.
J SAND	8448 ft.
J-2 SAND	8480 ft.

Formation JSND Formation Classification: GW Status: TA - 1/1/2017 Interval Top: 8450 ft. Interval Bottom: 8497 ft.

Completed Information for Formation J SAND

1st Production Date:	9/30/1972	Choke Size:
Formation Name:	J SAND	Commingled:	No
Production Method:	PUMPING
Open Hole Completion:

Formation Treatment
Treatment Date:	9/30/1972
Treatment Summary:	SEE SCANNED DOCUMENT # 00393292

Test Type	Measure
Tubing Size:	2.875 in.	Tubing Setting Depth:	8400 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	10/2/1972	Test Method:	PUMPING
Hours Tested:	24	Gas Type:
Gas Disposal:	VENTED
BBLS_OIL	51

Perforation Data:
Interval Top:	8450 ft.	# Of Holes:	58
Interval Bottom:	8497 ft.	Hole Size:

All Designations		Date
Primary Well Designation: Defined Inactive i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive (TA )	Y	Defined Inactive 01/01/2017
Low Producing	Y	Production Period 12/2024 - 11/2025

December 2024 - November 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	0
Total Gas Produced (MCF)	0
GOR
GOR Determination
Average BOE per Day	0.000
Average MCFE per Day	0.000

Federal Financial Assurance

Tribal Well
