COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06240		Well Classification: OW Status: PA - 6/1/1971
Well Name/No:JEFFRIES, JAMES M 32-11 #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ANADARKO E&P ONSHORE LLC - 2800
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/1/1971
FacilityID:204156LocationID:377786
County:ARAPAHOE #005Location:SWNE 11 4S62W 6
Field:BYERS - #9550Elevation:5400 ft.
Planned Location:1980FNL  1800 FELLat/Long: 39.718675 / -104.290541Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 6/1/1971             Measured TD: 7376 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 6/1/1971
Wellbore Permit
Permit #:19710281 Expiration Date:4/19/1972
Proposed Depth/Form:7350 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 80, Drill Unit: SWNE
Wellbore Completed
Completion Date:6/1/1971
Spud Date:4/21/1971Spud Date Is:ACTUAL
Measured TD:7376 ft.Measured PB depth:7340 ft.
True Vertical TD:True Vertical PB depth:
Log Types:I-ES, FDC W/MICROLOG

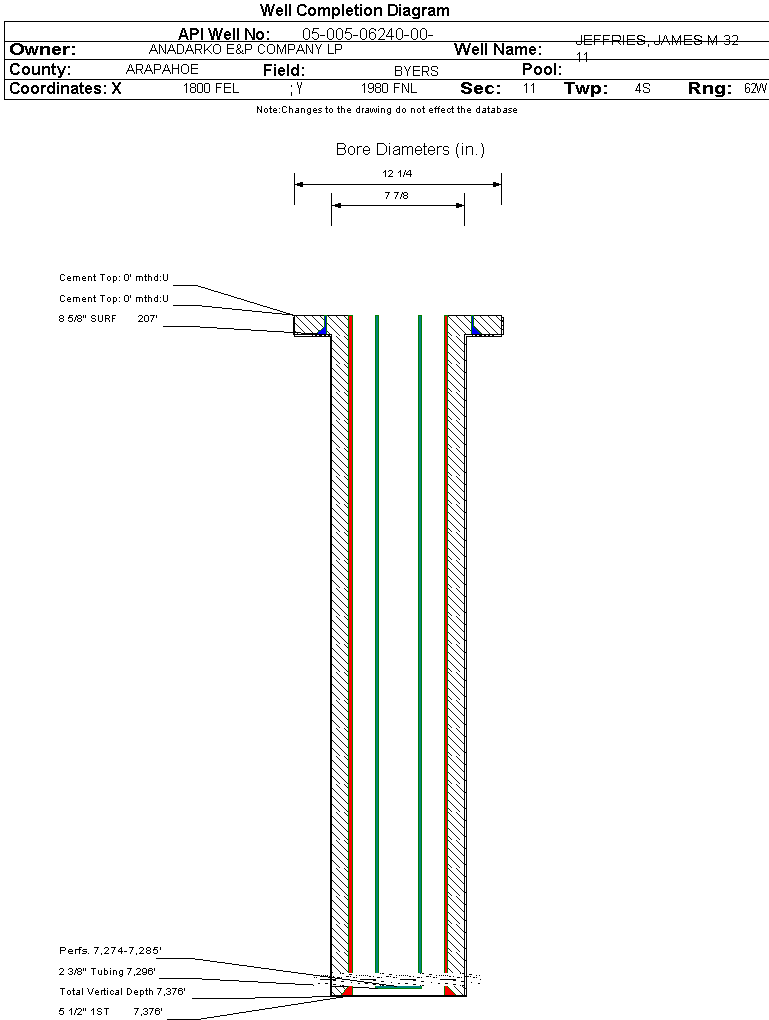

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 207 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7376 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
BENTONITE7072 ft.
D SAND7165 ft.
J SAND7213 ft.
SKULL CREEK7360 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/1/1971                  Interval Top: 7274 ft.    Interval Bottom: 7285 ft.

 Completed Information for Formation J SAND
1st Production Date:6/1/1971Choke Size:0.000 in.
Formation Name:J SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/1/1971
Treatment Summary:SEE SCAN DOCUMENT # 424283
Tubing Size:2.375 in.Tubing Setting Depth:7296 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/1/1971Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 21
BBLS_OIL 121
CALC_BBLS_H2O 21
CALC_BBLS_OIL 121
CALC_GOR 314
CALC_MCF_GAS 38
CASING_PRESS 425
MCF_GAS 38
TUBING_PRESS 75
Perforation Data:
Interval Top:7274 ft.# Of Holes:
Interval Bottom:7285 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/01/1971
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
