COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06235		Well Classification: OW Status: PR - 5/1/2022
Well Name/No:PEORIA J-SAND UNIT #56
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TYLER ROCKIES EXPLORATION LTD - 41550
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2022
FacilityID:204151LocationID:320635
County:ARAPAHOE #005Location:SWNE 5 5S60W 6
Field:PEORIA - #68350Elevation:5218 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1900FNL  1800 FELLat/Long: 39.647387 / -104.123255Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.647360 / -104.123170Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 5/1/2022             Measured TD: 6570 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 5/1/2022
Wellbore Permit
Permit #:19710244 Expiration Date:4/7/1972
Proposed Depth/Form:6600 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 80, Drill Unit: S2NE
Wellbore Completed
Completion Date:4/23/1971
Spud Date:4/7/1971Spud Date Is:ACTUAL
Measured TD:6570 ft.Measured PB depth:6540 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: I-ES, FDC W/MICROLOG

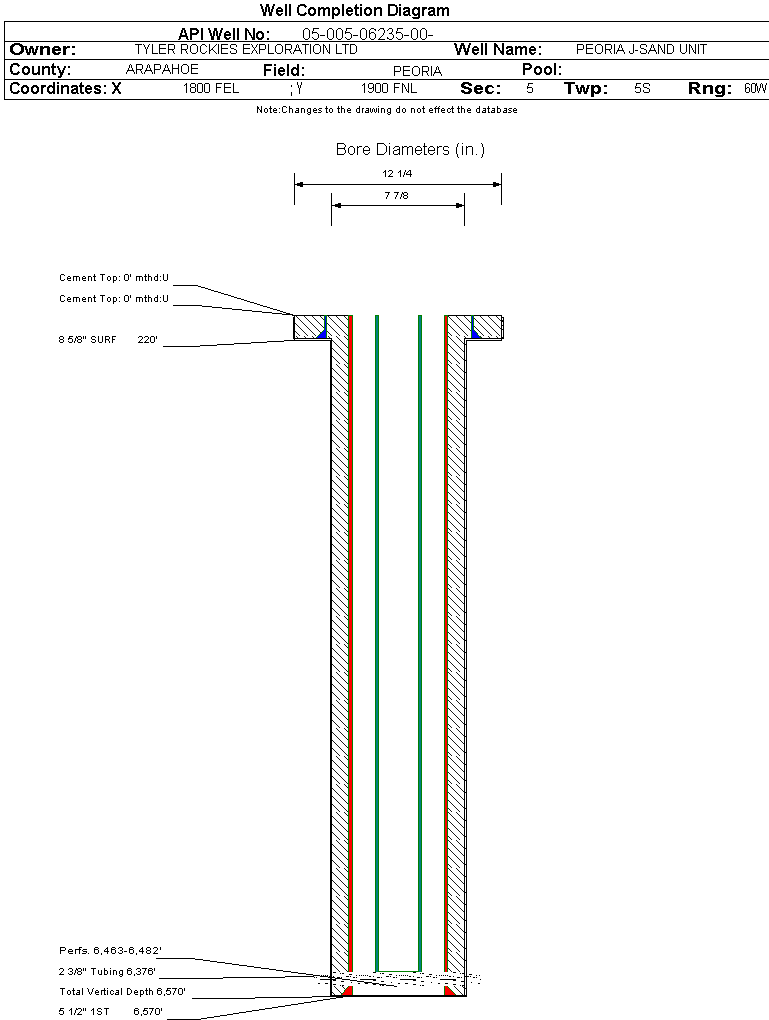

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 220 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6570 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
BENTONITE6299 ft.
D SAND6394 ft.
J SAND6434 ft.

Formation JSND                     Formation Classification:  OW                     Status:  PR - 5/1/2022                  Interval Top: 6463 ft.    Interval Bottom: 6482 ft.

 Completed Information for Formation J SAND
1st Production Date:4/22/1971Choke Size:0.281 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:6376 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/24/1971Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 273
CALC_BBLS_OIL 273
CALC_GOR 901
CALC_MCF_GAS 246
CASING_PRESS 350
GRAVITY_OIL 43.1
MCF_GAS 246
TUBING_PRESS 225
Perforation Data:
Interval Top:6463 ft.# Of Holes:20
Interval Bottom:6482 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)512
Total Gas Produced (MCF)451
GOR880
GOR DeterminationBOE
Average BOE per Day1.613
Average MCFE per Day9.335

 Federal Financial Assurance  i

 Tribal Well  i No
