COGIS

Facility Detail

COGIS - WELL SCOUT CARD

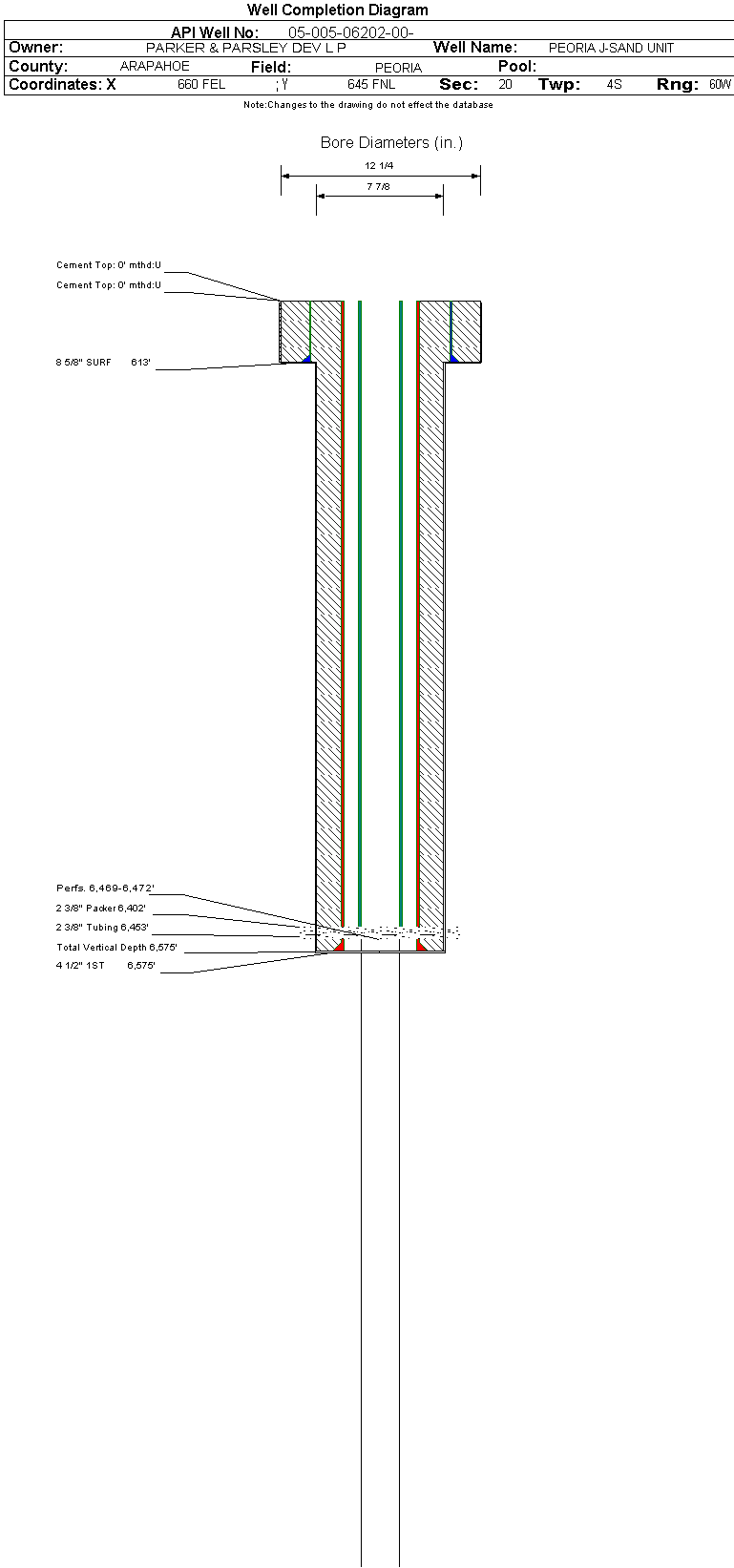

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-005-06202		Well Classification: ERIW Status: PA - 11/27/1990
Well Name/No:PEORIA J-SAND UNIT #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PARKER & PARSLEY DEV L P - 67270
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/27/1990
FacilityID:204118LocationID:377755
County:ARAPAHOE #005Location:NENE 20 4S60W 6
Field:PEORIA - #68350Elevation:5138 ft.
Basin:DENVER (DJ) BASIN
Planned Location:645FNL  660 FELLat/Long: 39.694116 / -104.118305Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 11/27/1990             Measured TD: 6575 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 11/27/1990
Wellbore Permit
Permit #:19710056 Expiration Date:1/28/1972
Proposed Depth/Form:6650 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Wellbore Completed
Completion Date:2/15/1971
Spud Date:1/31/1971Spud Date Is:ACTUAL
Measured TD:6575 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION ELECTROLOG, DENSILOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 613 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6575 ft., Weight: 9.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5665 ft. N
FORT HAYS5915 ft. N
CARLILE5950 ft. N
GREENHORN6038 ft. N
D SAND6376 ft. N
J SAND6425 ft.YN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 11/27/1990                Interval Top: 6469 ft.    Interval Bottom: 6472 ft.

 Completed Information for Formation J SAND
1st Production Date:2/14/1971Choke Size:0.375 in.
Formation Name:J SANDCommingled:No
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:2/15/1971
Treatment Summary:NONE
Tubing Size:2.375 in.Tubing Setting Depth:6453 ft.
Tubing Packer Depth:6422 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/15/1971Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 91
CALC_GOR 22000
GRAVITY_OIL 42.1
MCF_GAS 2002
TUBING_PRESS 800
Perforation Data:
Interval Top:6469 ft.# Of Holes:6
Interval Bottom:6472 ft.Hole Size:0.48 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/27/1990
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
