COGIS - WELL SCOUT CARD

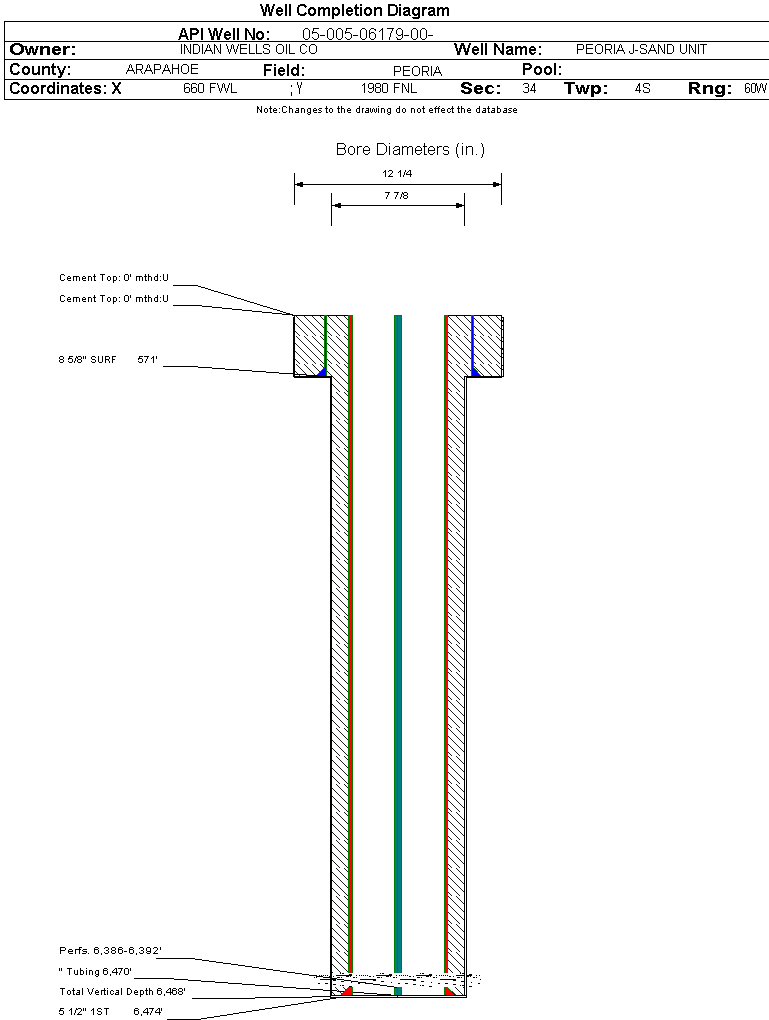

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06179		Well Classification: ERIW Status: PA - 12/15/1987
Well Name/No:PEORIA J-SAND UNIT #35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:INDIAN WELLS OIL CO - 42870
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/15/1987
FacilityID:204095LocationID:377734
County:ARAPAHOE #005Location:SWNW 34 4S60W 6
Field:PEORIA - #68350Elevation:5173 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  660 FWLLat/Long: 39.661717 / -104.095394Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 12/15/1987             Measured TD: 6468 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 12/15/1987
Wellbore Permit
Permit #:19700748 Expiration Date:12/23/1971
Proposed Depth/Form:6400 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Wellbore Completed
Completion Date:1/4/1971
Spud Date:12/23/1970Spud Date Is:ACTUAL
Measured TD:6468 ft.Measured PB depth:6440 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES-FDC/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 571 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6474 ft., Weight: 14&15.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5452 ft.NN
CARLILE5892 ft.NN
GREENHORN5978 ft.NN
BENTONITE6196 ft.NN
D SAND6291 ft.NN
J SAND6334 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 12/15/1987                Interval Top: 6386 ft.    Interval Bottom: 6392 ft.

 Completed Information for Formation J SAND
1st Production Date:1/18/1971Choke Size:0.171 in.
Formation Name:J SANDCommingled:No
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:1/4/1971
Treatment Summary:NONE
Tubing Size:Tubing Setting Depth:6470 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/22/1971Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 10
CALC_GOR 133600
CASING_PRESS 1460
GRAVITY_OIL 58
MCF_GAS 1336
TUBING_PRESS 1370
Perforation Data:
Interval Top:6386 ft.# Of Holes:24
Interval Bottom:6392 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/15/1987
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
