COGIS - WELL SCOUT CARD

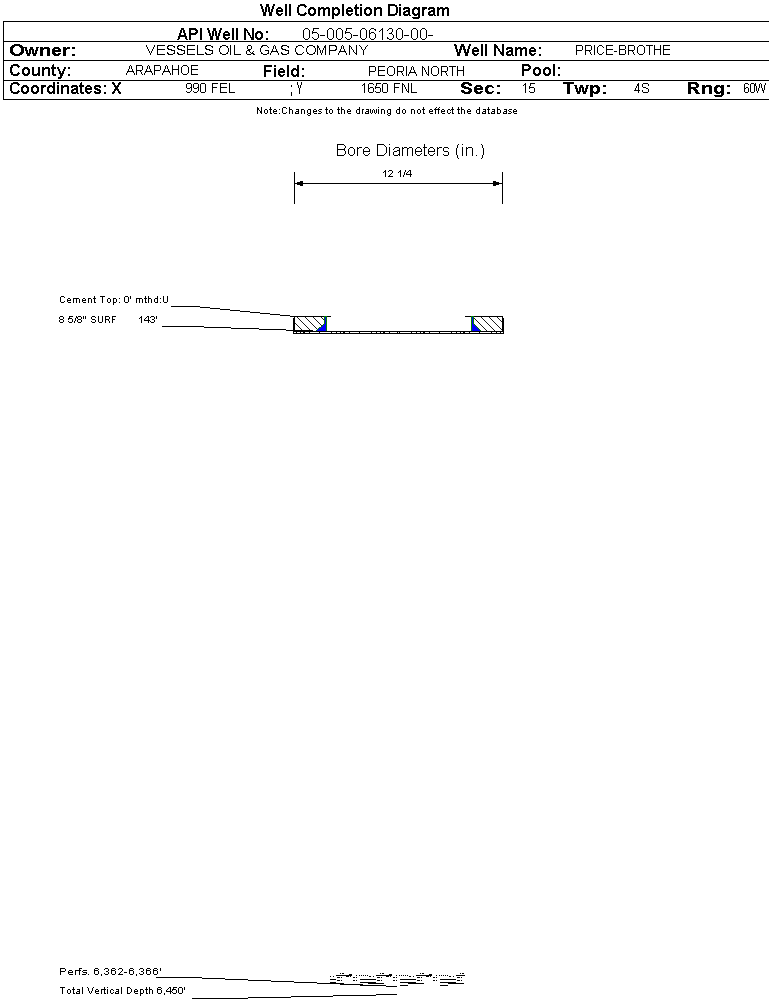

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06130		Well Classification: OW Status: PA - 8/30/1984
Well Name/No:PRICE-BROTHE #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:VESSELS OIL & GAS COMPANY - 93200
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/30/1984
FacilityID:204046LocationID:377687
County:ARAPAHOE #005Location:SENE 15 4S60W 6
Field:PEORIA NORTH - #68375Elevation:5081 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1650FNL  990 FELLat/Long: 39.706056 / -104.081874Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 8/30/1984             Measured TD: 6450 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 8/30/1984
Wellbore Permit
Permit #:19700559 Expiration Date:10/21/1971
Proposed Depth/Form:6400 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Wellbore Completed
Completion Date:11/12/1970
Spud Date:10/18/1970Spud Date Is:ACTUAL
Measured TD:6450 ft.Measured PB depth:6413 ft.
True Vertical TD:True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 143 ft., Weight: 28 , Citings Type: ACTUAL
Cement:Sacks: 325, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5427 ft.
CARLILE5853 ft.
GREENHORN5937 ft.
BENTONITE6157 ft.
D SAND6257 ft.
J SAND6301 ft.YY

Formation JSND                     Formation Classification:  GW                     Status:  AB - 8/30/1984                 Interval Top: 6362 ft.    Interval Bottom: 6366 ft.

 Completed Information for Formation J SAND
1st Production Date:11/12/1970Choke Size:
Formation Name:J SANDCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/12/1970
Treatment Summary:NONE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/2/1970Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_H2O 20
BBLS_OIL 100
CALC_GOR 2200
CASING_PRESS 20
GRAVITY_OIL 38
MCF_GAS 220
TUBING_PRESS 20
Perforation Data:
Interval Top:6362 ft.# Of Holes:16
Interval Bottom:6366 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/30/1984
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
