Wellbore #00 Wellbore Classification: GW Status: PA - 6/30/1976 Measured TD: 6438 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PA - 6/30/1976 | | Wellbore Permit | | | Permit #: | 19700546 | Expiration Date: | 10/15/1971 | | Proposed Depth/Form: | 6300 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | |
| | |

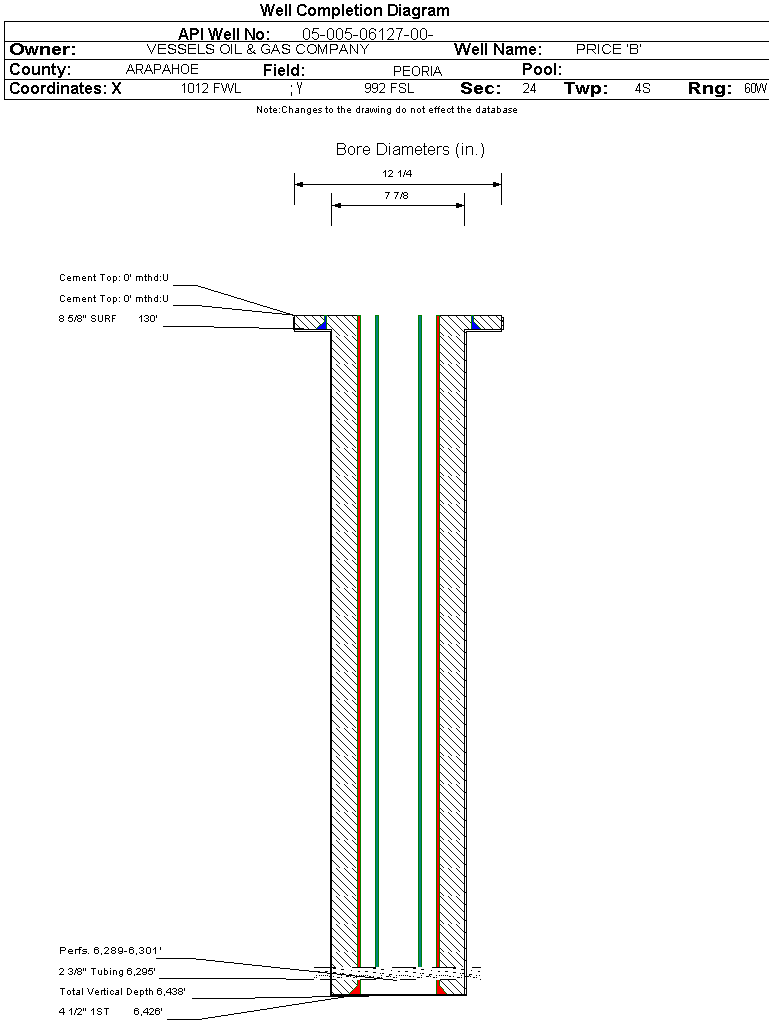

| Wellbore Completed | | Completion Date: | 11/9/1970 | | Spud Date: | 10/9/1970 | Spud Date Is: | ACTUAL | | Measured TD: | 6438 ft. | Measured PB depth: | 6394 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | IES - FDC/GR | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 130 ft., Weight: 28 , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: , Bottom: , Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6426 ft., Weight: 11.6&10.5, Citings Type: ACTUAL | | Cement: | Sacks: 200, Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | NIOBRARA | 5398 ft. | | | | | CARLILE | 5834 ft. | | | | | GREENHORN | 5918 ft. | | | | | BENTONITE | 6142 ft. | | | | | D SAND | 6243 ft. | | | | | J SAND | 6375 ft. | | Y | Y |
Formation JSND Formation Classification: GW Status: AB - 6/30/1976 Interval Top: 6289 ft. Interval Bottom: 6301 ft.| Completed Information for Formation J SAND | | 1st Production Date: | 11/9/1970 | Choke Size: | 0.281 in. | | Formation Name: | J SAND | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 11/9/1970 | | Treatment Summary: | SEE SCANNED DOCUMENT #00419809 |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6295 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/6/1970 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | VENTED | |
| Test Type | Measure |
|---|
| BBLS_OIL | 18 | | CALC_GOR | 128840 | | CASING_PRESS | 1090 | | GRAVITY_OIL | 48 | | MCF_GAS | 2265 | | TUBING_PRESS | 1020 |
| | Perforation Data: | | Interval Top: | 6289 ft. | # Of Holes: | 25 | | Interval Bottom: | 6301 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/30/1976 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
