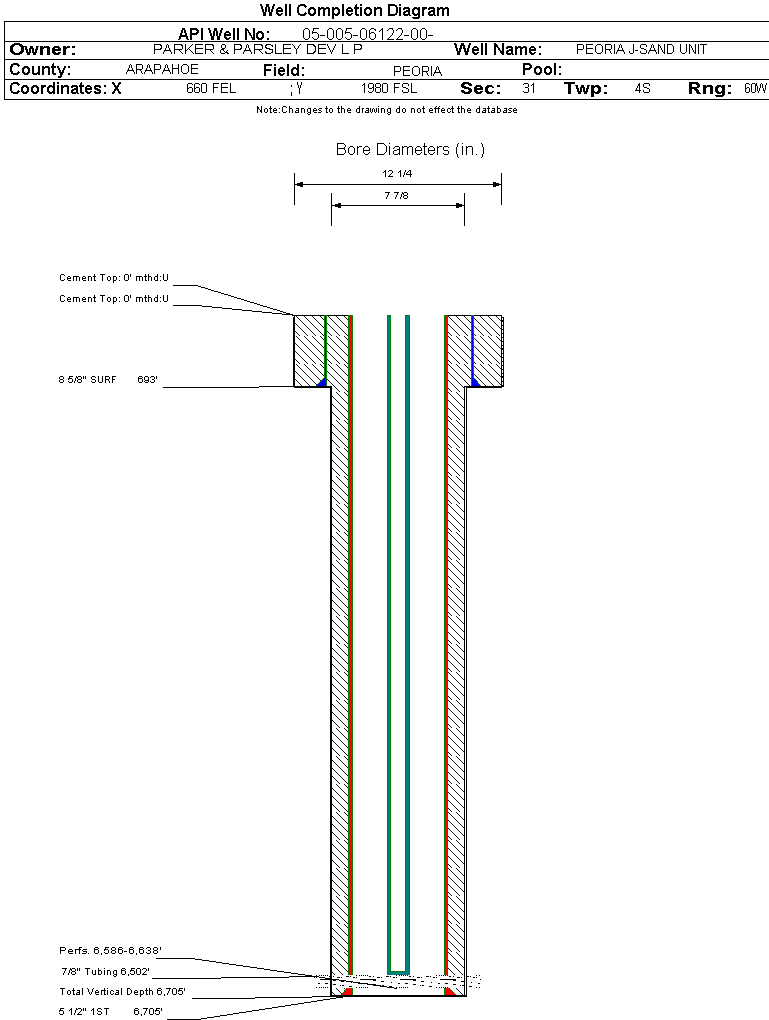

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-005-06122		Well Classification: ERIW Status: PA - 6/25/1990
Well Name/No:PEORIA J-SAND UNIT #41
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PARKER & PARSLEY DEV L P - 67270
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date6/25/1990
FacilityID:204038LocationID:377679
County:ARAPAHOE #005Location:NESE 31 4S60W 6
Field:PEORIA - #68350Elevation:5262 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  660 FELLat/Long: 39.657977 / -104.137466Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 6/25/1990             Measured TD: 6705 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 6/25/1990
Wellbore Permit
Permit #:19700530 Expiration Date:10/8/1971
Proposed Depth/Form:6670 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 226&226-2 , Unit Acreage: 80, Drill Unit: N2NW
Wellbore Completed
Completion Date:12/2/1970
Spud Date:10/14/1970Spud Date Is:ACTUAL
Measured TD:6705 ft.Measured PB depth:6628 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, GR DENSITY X CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 693 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6705 ft., Weight: 14&15.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
D SAND6502 ft.NN
J SAND6548 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 6/25/1990                 Interval Top: 6586 ft.    Interval Bottom: 6638 ft.

 Completed Information for Formation J SAND
1st Production Date:11/15/1970Choke Size:
Formation Name:J SANDCommingled:No
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:12/2/1970
Treatment Summary:SEE SCANNED DOCUMENT # 00419960
Tubing Size:0.875 in.Tubing Setting Depth:6502 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/2/1970Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 19
BBLS_OIL 105
CALC_GOR 722
MCF_GAS 76
Perforation Data:
Interval Top:6586 ft.# Of Holes:36
Interval Bottom:6638 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY06/25/1990
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
