COGIS - WELL SCOUT CARD

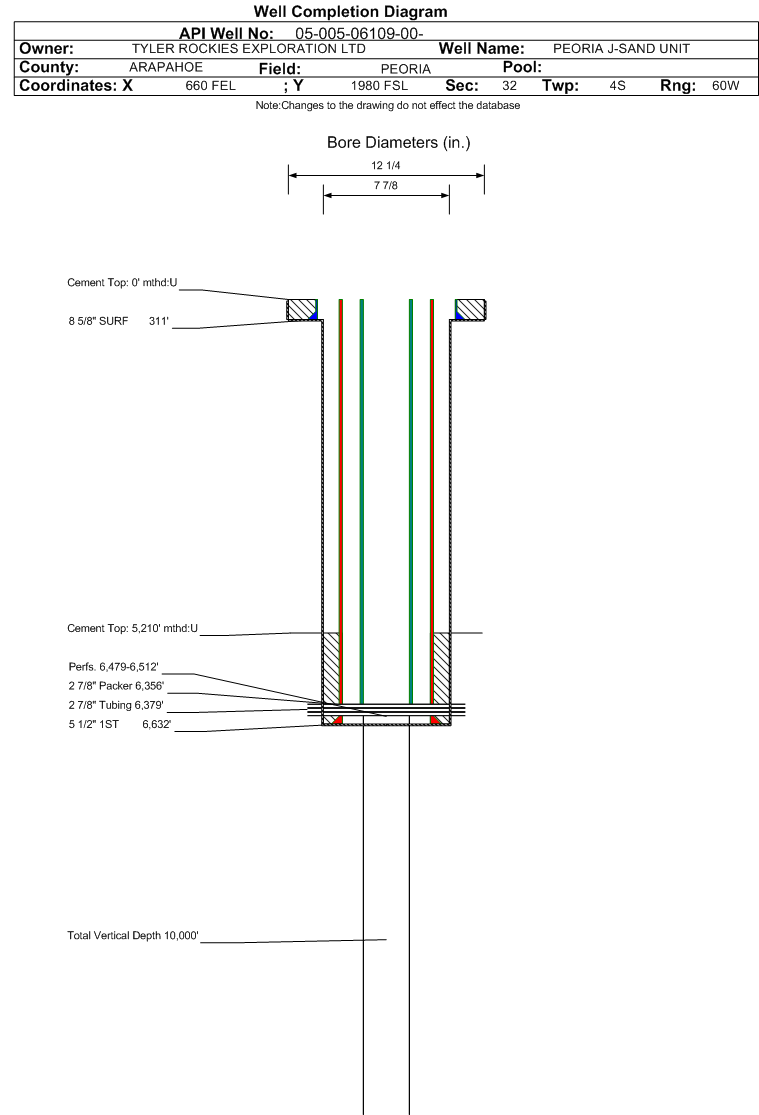

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06109		Well Classification: ERIW Status: IJ - 6/1/2020
Well Name/No:PEORIA J-SAND UNIT #43
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TYLER ROCKIES EXPLORATION LTD - 41550
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:IJStatus Date6/1/2020
FacilityID:204026LocationID:320627
County:ARAPAHOE #005Location:NESE 32 4S60W 6
Field:PEORIA - #68350Elevation:5244 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  660 FELLat/Long: 39.658047 / -104.118785Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.658170 / -104.118690Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: IJ - 6/1/2020             Measured TD: 6635 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        IJ - 6/1/2020
Wellbore Permit
Permit #:19700504 Expiration Date:9/21/1971
Proposed Depth/Form:6740 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Wellbore Completed
Completion Date:10/8/1970
Spud Date:9/24/1970Spud Date Is:ACTUAL
Measured TD:6635 ft.Measured PB depth:6605 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CORRELATION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 311 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: 311 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6632 ft., Weight: 15.5&14 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 5210 ft., Bottom: 6632 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5676 ft.NN
FORT HAYS5978 ft.NN
CARLILE6010 ft.NN
GREENHORN6098 ft.NN
GRANEROS6152 ft.NN
BENTONITE6315 ft.NN
MUDDY D6410 ft.NN
MUDDY J6465 ft.NN

Formation JSND                     Formation Classification:  OW                     Status:  IJ - 6/1/2020                  Interval Top: 6479 ft.    Interval Bottom: 6512 ft.

 Completed Information for Formation J SAND
1st Production Date:10/8/1970Choke Size:0.750 in.
Formation Name:J SANDCommingled:No
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:10/8/1970
Treatment Summary:SEE SCANNED DOCUMENT # 00420055 & 00420047
Tubing Size:2.875 in.Tubing Setting Depth:6379 ft.
Tubing Packer Depth:6376 ft.Tubing Multiple Packer:N ft.
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/9/1970Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 1077
CALC_GOR 800
GRAVITY_OIL 42.2
MCF_GAS 861
TUBING_PRESS 220
Perforation Data:
Interval Top:6479 ft.# Of Holes:66
Interval Bottom:6512 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
