COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06096		Well Classification: DA Status: PA - 10/7/1970
Well Name/No:FRANK H CARLSON #41-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:UNION PACIFIC RAILROAD CO - 91108
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date10/7/1970
FacilityID:204013LocationID:377656
County:ARAPAHOE #005Location:NENE 29 4S60W 6
Field:PEORIA - #68350Elevation:5193 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  660 FELLat/Long: 39.679906 / -104.118595Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 10/7/1970             Measured TD: 6618 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 10/7/1970
Wellbore Permit
Permit #:19700456 Expiration Date:9/14/1971
Proposed Depth/Form:6650 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Wellbore Completed
Completion Date:10/7/1970
Spud Date:9/28/1970Spud Date Is:ACTUAL
Measured TD:6618 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Log Types:I-ES, CFD-MICROLOG

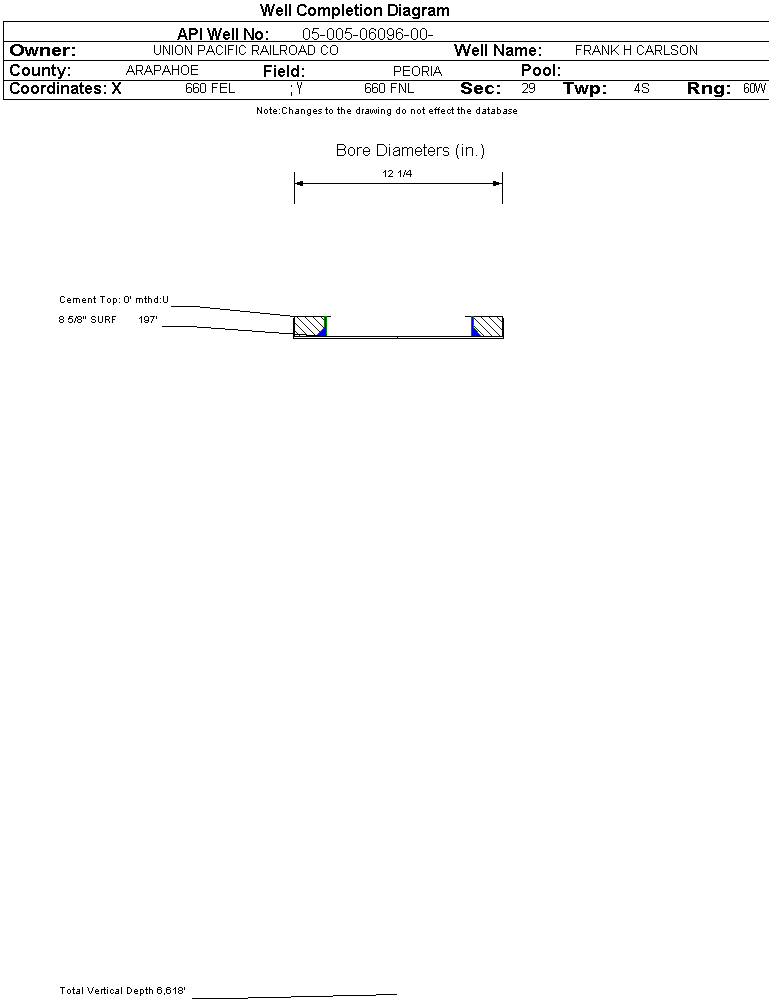

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 197 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
D SAND6416 ft.
J SAND6462 ft.YY
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY10/07/1970
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
