COGIS - WELL SCOUT CARD

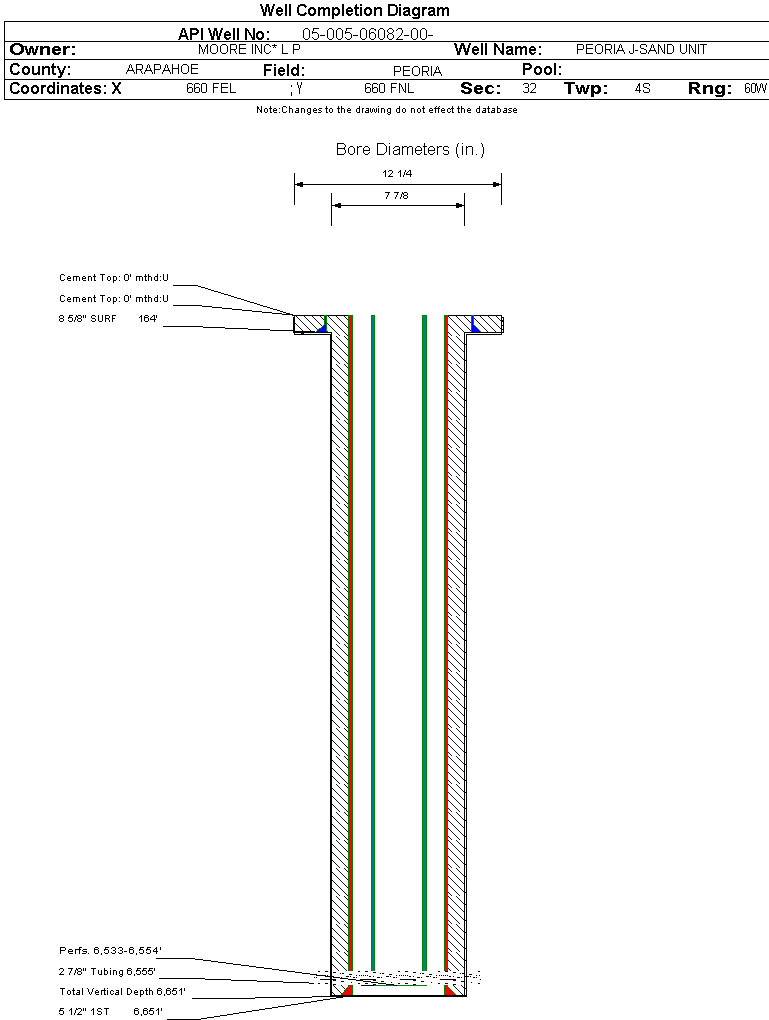

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-005-06082		Well Classification: ERIW Status: PA - 2/25/1994
Well Name/No:PEORIA J-SAND UNIT #32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MOORE INC* L P - 59920
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/25/1994
FacilityID:203999LocationID:377645
County:ARAPAHOE #005Location:NENE 32 4S60W 6
Field:PEORIA - #68350Elevation:5244 ft.
Planned Location:660FNL  660 FELLat/Long: 39.665377 / -104.118715Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 2/25/1994             Measured TD: 6651 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 2/25/1994
Wellbore Permit
Permit #:19700404 Expiration Date:8/20/1971
Proposed Depth/Form:6600 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Wellbore Completed
Completion Date:9/4/1970
Spud Date:8/24/1970Spud Date Is:ACTUAL
Measured TD:6651 ft.Measured PB depth:6620 ft.
True Vertical TD:True Vertical PB depth:
Log Types:INDUCTION-ES & COMPENSATED FORM. DENSITY, GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 164 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 140, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 6651 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
HYGIENE3734 ft.
NIOBRARA5600 ft.
D SAND6437 ft.
J SAND6486 ft.Y

Formation JSND                     Formation Classification:  GW                     Status:  AB - 2/25/1994                 Interval Top: 6533 ft.    Interval Bottom: 6554 ft.

 Completed Information for Formation J SAND
1st Production Date:9/5/1970Choke Size:0.750 in.
Formation Name:J SANDCommingled:No
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:9/4/1970
Treatment Summary:SEE SCANNED DOCUMENT # 00420132 & 00420130
Tubing Size:2.875 in.Tubing Setting Depth:6555 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/16/1970Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 1315
CALC_GOR 1198
CASING_PRESS 1200
GRAVITY_OIL 41.3
MCF_GAS 1576
TUBING_PRESS 245
Perforation Data:
Interval Top:6533 ft.# Of Holes:63
Interval Bottom:6554 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/25/1994
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
