COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-005-06074		Well Classification: ERIW Status: PA - 1/17/1990
Well Name/No:PEORIA J-SAND UNIT #26
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PARKER & PARSLEY DEV L P - 67270
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/17/1990
FacilityID:203991LocationID:377637
County:ARAPAHOE #005Location:SWSW 28 4S60W 6
Field:PEORIA - #68350Elevation:5198 ft.
Basin:DENVER (DJ) BASIN
Planned Location:990FSL  990 FWLLat/Long: 39.669917 / -104.112815Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: ERIW             Status: PA - 1/17/1990             Measured TD: 6600 ft.

 Wellbore Data for Original WellboreWellbore Classification: ERIW        PA - 1/17/1990
Wellbore Permit
Permit #:19700272 Expiration Date:6/17/1971
Proposed Depth/Form:6500 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SKCRK , Formation: SKULL CREEK , Order: 226 , Unit Acreage: 320, Drill Unit: W2
Wellbore Completed
Completion Date:7/19/1970
Spud Date:6/20/1970Spud Date Is:ACTUAL
Measured TD:6600 ft.Measured PB depth:6560 ft.
True Vertical TD:True Vertical PB depth:

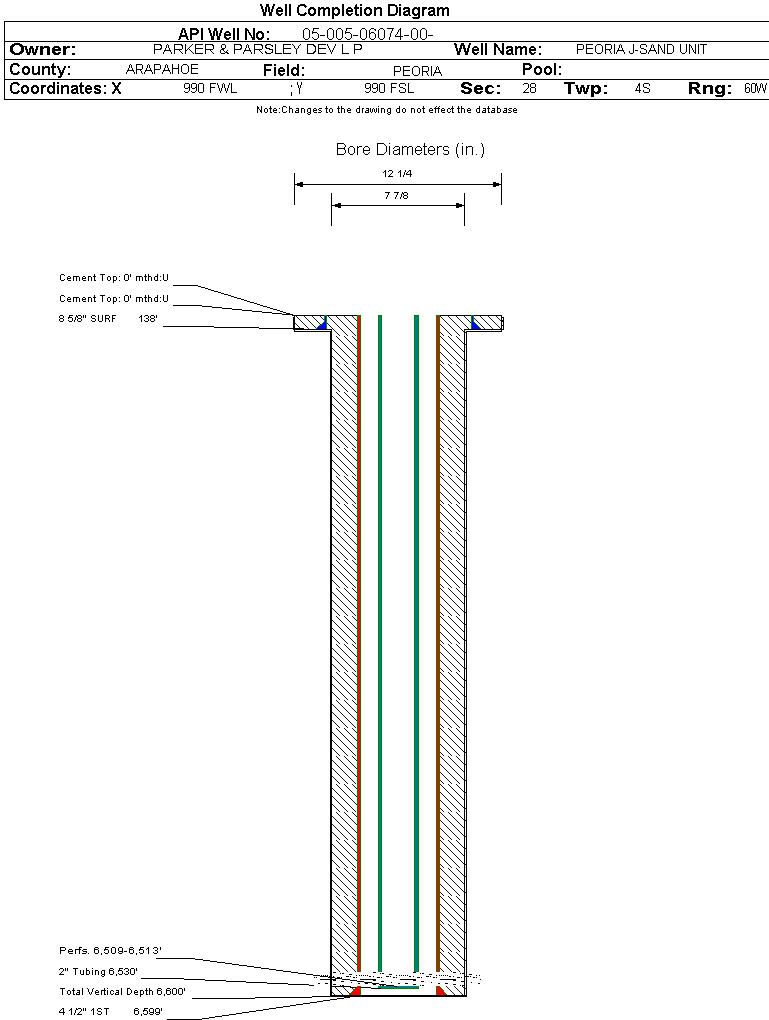

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 138 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6599 ft., Weight: 11.6&10.5, Citings Type: ACTUAL
Cement:Sacks: 200, Top: , Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5600 ft.N
TIMPAS5970 ft.N
CARLILE6010 ft.N
GREENHORN6092 ft.N
BENTONITE6314 ft.N
D SAND6412 ft.N
J SAND6457 ft.NY
SKULL CREEK6562 ft.N

Formation JSND                     Formation Classification:  GW                     Status:  AB - 1/17/1990                 Interval Top: 6509 ft.    Interval Bottom: 6513 ft.

 Completed Information for Formation J SAND
1st Production Date:7/19/1970Choke Size:0.250 in.
Formation Name:J SANDCommingled:No
Production Method:INJECTION
Open Hole Completion:
Formation Treatment
Treatment Date:7/19/1970
Treatment Summary:SEE SCANNED DOCUMENT # 00419903
Tubing Size:2 in.Tubing Setting Depth:6530 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/19/1970Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:VENTED
Test TypeMeasure
BBLS_OIL 150
CALC_GOR 400
CASING_PRESS 580
MCF_GAS 60
TUBING_PRESS 100
Perforation Data:
Interval Top:6509 ft.# Of Holes:16
Interval Bottom:6513 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/17/1990
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
