COGIS - WELL SCOUT CARD

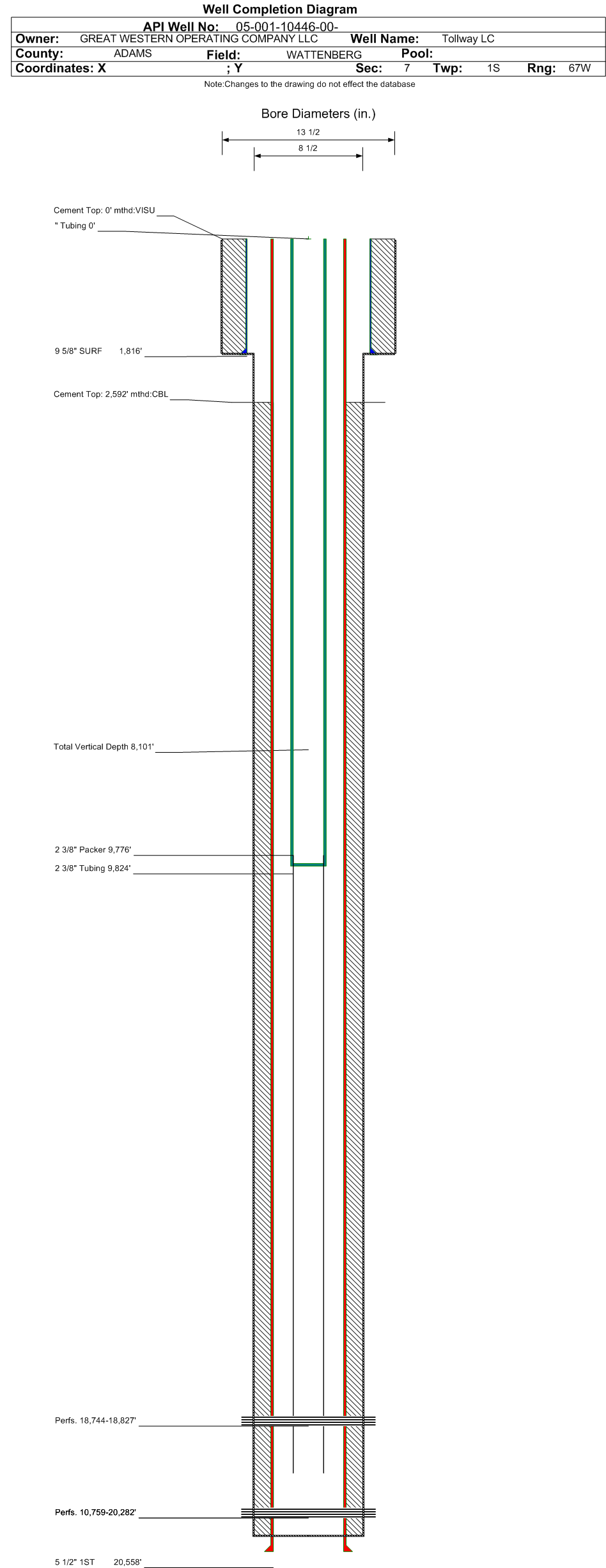

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-10446		Well Classification: OW Status: PR - 12/1/2019
Well Name/No:Tollway LC #24-379HC
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/1/2019
FacilityID:463476LocationID:463472
County:ADAMS #001Location:NWSW 7 1S67W 6
Field:WATTENBERG - #90750Elevation:5158 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2007FSL  516 FWLLat/Long: 39.977443 / -104.938440Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.977442 / -104.938440Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 12/16/2019
End Date: 12/21/2019
Reported: 1/2/2020
Days to report: 12
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 12/1/2019             Measured TD: 20558 ft.    Vertical TD: 8101 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 12/1/2019
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:3/21/2021
Proposed Top PZ Location:Sec:13 Twp: 1S 68W Footage: 460 FNL  526 FWL
Bottom Hole Location:Sec:24 Twp: 1S 68W Footage: 370 FSL  521 FWL
Proposed Depth/Form:20332 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: 407-2383 , Unit Acreage: 1280, Drill Unit: S.13 All, S.24 All
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1700 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 707, Top: 0 ft., Bottom: 1700 ft.
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 20332 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 2534, Top: , Bottom: 20332 ft.
Wellbore Completed
Completion Date:12/4/2019
Spud Date:8/15/2019Spud Date Is:ACTUAL
Measured TD:20558 ft.Measured PB depth:20547 ft.
True Vertical TD:8101 ft.True Vertical PB depth:8101 ft.
Top PZ Location:Sec:13 Twp: 1S 68WFootage: 566 FNL  533 FWL
Bottom Hole Location:Sec:24 Twp: 1S 68WFootage: 255 FSL  534 FWL
Log Types:MWD/LWD, Mud Log, CBL, Composite
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1816 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 830, Top: 0 ft., Bottom: 1816 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 20558 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 2800, Top: 2592 ft., Bottom: 20558 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN5272 ft.5439 ft.NN
SUSSEX5893 ft.6121 ft.NN
SHANNON6741 ft.6815 ft.NN
SHARON SPRINGS9453 ft.NN
NIOBRARA9753 ft.NN
FORT HAYS10385 ft.NN
CODELL10473 ft.NN

Formation FTHYS                   Formation Classification:  OW                   Status:  CM - 7/29/2020                 Interval Top: 18744 ft.    Interval Bottom: 18827 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:1/8/2020Choke Size:
Formation Name:FORT HAYSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:7/29/2020Treatment End Date:N/A
Treatment Summary:Fort Hays Perf Interval: 18744 - 18827
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FTHYS.
Perforation Data:
Interval Top:18744 ft.# Of Holes:1440
Interval Bottom:18827 ft.Hole Size:0.38 in.

Formation CD-FH                   Formation Classification:  OW                   Status:  PR - 1/10/2020                 Interval Top: 10759 ft.    Interval Bottom: 20282 ft.

 Completed Information for Formation CODELL-FORT HAYS
1st Production Date:1/8/2020Choke Size:
Formation Name:CODELL-FORT HAYSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:12/16/2019Treatment End Date:12/21/2019
Treatment Summary:11.9 bbls 15% HCL Acid; 251,451# 100 Mesh Sand; 4,503,410# 20/40 Sand; 114,509 bbls gelled fluid; Flowback determined from well test separator.
Total fluid used in treatment (bbls):114521Max pressure during treatment (psi):3600
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.33
Type Of gas:Number Of staged intervals:48
Total acid used in treatment (bbls):12Min frac gradient (psi/ft):0.89
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):14651
Fresh water used in treatment (bbls):114509Disposition method For flowback:DISPOSAL
Total proppant used (lbs):4754861Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:9824 ft.
Tubing Packer Depth:9796 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/10/2020Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 271
BBLS_OIL 915
BTU_GAS 1317
CALC_BBLS_H2O 271
CALC_BBLS_OIL 915
CALC_GOR 1899
CALC_MCF_GAS 1738
CASING_PRESS 72
GRAVITY_OIL 45
MCF_GAS 1738
TUBING_PRESS 2060
Perforation Data:
Interval Top:10759 ft.# Of Holes:1440
Interval Bottom:20282 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 7/29/2020                 Interval Top: 10759 ft.    Interval Bottom: 20282 ft.

 Completed Information for Formation CODELL
1st Production Date:1/8/2020Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:7/29/2020Treatment End Date:N/A
Treatment Summary:Codell Perf Interval: 10759 - 18743, 18828 - 20282
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:10759 ft.# Of Holes:1440
Interval Bottom:20282 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)9049
Total Gas Produced (MCF)203031
GOR22436
GOR DeterminationMCFE
Average BOE per Day120.475
Average MCFE per Day698.747

 Federal Financial Assurance  i

 Tribal Well  i No
