COGIS

Facility Detail

COGIS - WELL SCOUT CARD

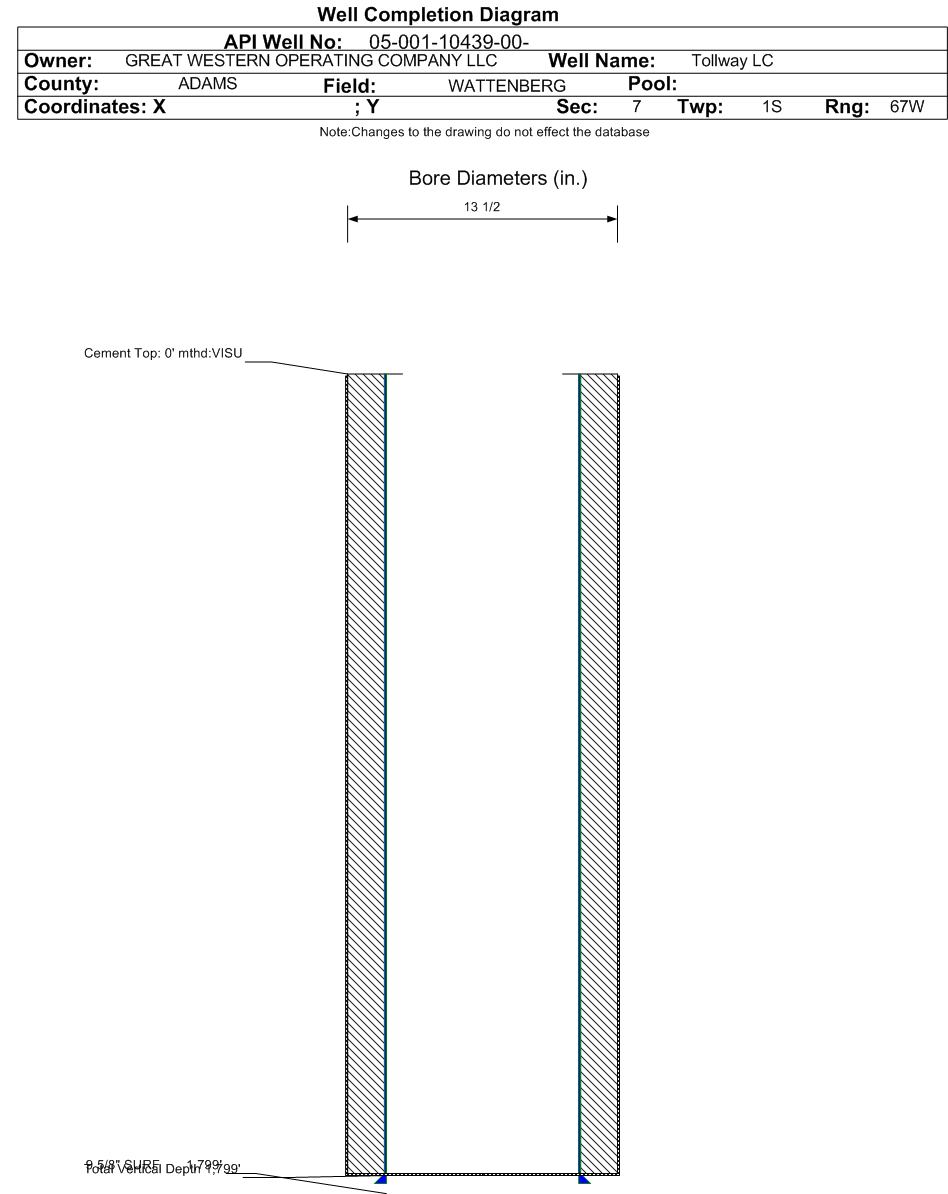

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-10439		Well Classification: OW Status: SI - 1/1/2025
Well Name/No:Tollway LC #24-375HN
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date1/1/2025
FacilityID:463468LocationID:463472
County:ADAMS #001Location:NWSW 7 1S67W 6
Field:WATTENBERG - #90750Elevation:5157 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2046FSL  435 FWLLat/Long: 39.977551 / -104.938729Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.977551 / -104.938729Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 10/1/2024             Measured TD: 1799 ft.    Vertical TD: 1799 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 10/1/2024
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:3/21/2021
Proposed Top PZ Location:Sec:13 Twp: 1S 68W Footage: 460 FNL  1631 FWL
Bottom Hole Location:Sec:24 Twp: 1S 68W Footage: 370 FSL  1623 FWL
Proposed Depth/Form:19480 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 407-2383 , Unit Acreage: 1280, Drill Unit: S.13 All, S.24 All
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1700 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 707, Top: 0 ft., Bottom: 1700 ft.
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 19480 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 2443, Top: , Bottom: 19480 ft.
Wellbore Completed
Completion Date:8/11/2019
Spud Date:8/10/2019Spud Date Is:ACTUAL
Measured TD:1799 ft.Measured PB depth:1757 ft.
True Vertical TD:1799 ft.True Vertical PB depth:1756 ft.
Bottom Hole Location:Sec:24 Twp: 1S 68WFootage: 370 FSL  1623 FWL
Log Types:
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1799 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 815, Top: 0 ft., Bottom: 1799 ft., Determination Method: VISU
  No formation data to display.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
