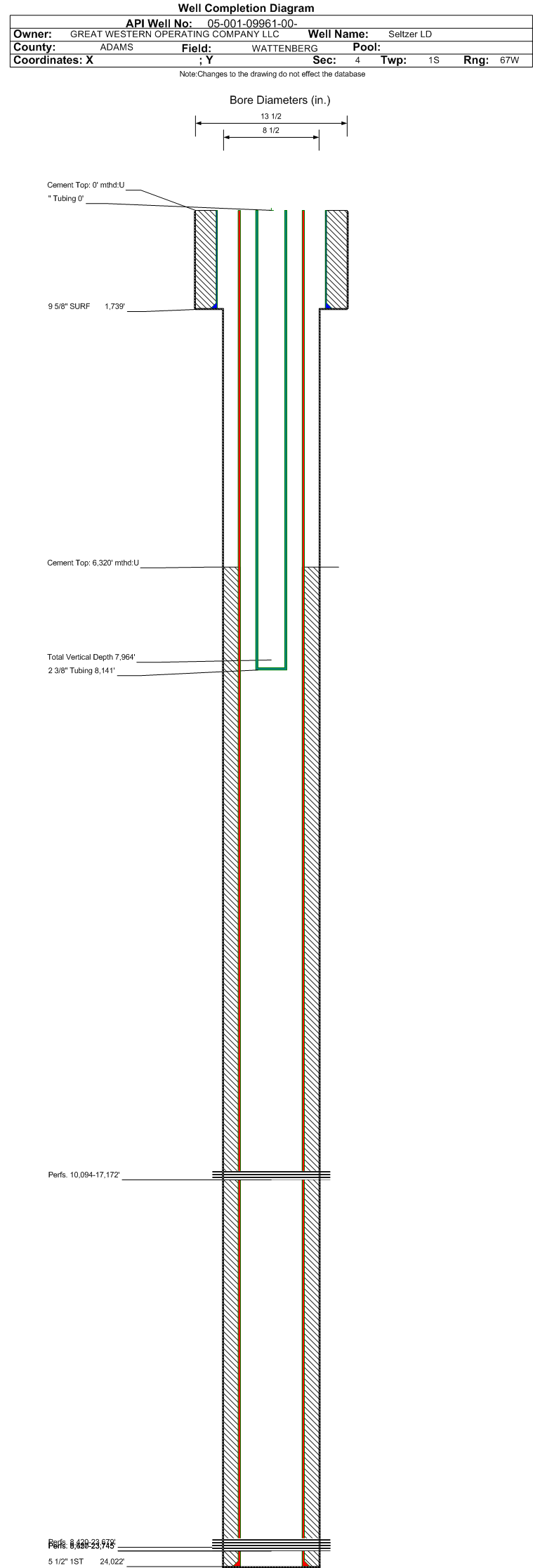

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-09961		Well Classification: OW Status: PR - 6/1/2022
Well Name/No:Seltzer LD #21-036HC
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date6/1/2022
FacilityID:447391LocationID:320515
County:ADAMS #001Location:NWNE 4 1S67W 6
Field:WATTENBERG - #90750Elevation:5143 ft.
Basin:DENVER (DJ) BASIN
Planned Location:393FNL  2250 FELLat/Long: 39.999278 / -104.892422Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.999277 / -104.892422Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 12/22/2018
End Date: 1/14/2019
Reported: 2/4/2019
Days to report: 21
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 6/1/2022             Measured TD: 24022 ft.    Vertical TD: 7964 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 6/1/2022
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:9/24/2020
Proposed Top PZ Location:Sec:4 Twp: 1S 67W Footage: 575 FNL  1334 FEL
Bottom Hole Location:Sec:21 Twp: 1S 67W Footage: 576 FNL  1299 FEL
Proposed Depth/Form:23945 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 1040, Drill Unit: GWA
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 80, Top: 0 ft., Bottom: 100 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1700 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 707, Top: 0 ft., Bottom: 1700 ft.
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 23945 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 7600, Top: 0 ft., Bottom: 23945 ft.
Wellbore Completed
Completion Date:11/8/2018
Spud Date:10/5/2018Spud Date Is:ACTUAL
Measured TD:24022 ft.Measured PB depth:24013 ft.
True Vertical TD:7964 ft.True Vertical PB depth:7963 ft.
Top PZ Location:Sec:4 Twp: 1S 67WFootage: 575 FNL  1334 FEL
Bottom Hole Location:Sec:21 Twp: 1S 67WFootage: 576 FNL  1299 FEL
Log Types:Mud, MWD/LWD, CBL, (Composite in 001-09962)
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1739 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 760, Top: 0 ft., Bottom: 1739 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 24022 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 2992, Top: 6320 ft., Bottom: 24022 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4518 ft.4691 ft.NN
SUSSEX4984 ft.5084 ft.NN
SHANNON5491 ft.5616 ft.NN
SHARON SPRINGS7491 ft.NN
NIOBRARA7642 ft.NN
FORT HAYS8242 ft.NN
CODELL8390 ft.NN

Formation NBRR                     Formation Classification:  OW                     Status:  CM - 5/14/2019                 Interval Top: 10094 ft.    Interval Bottom: 17172 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:2/21/2019Choke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:12/22/2018Treatment End Date:N/A
Treatment Summary:10094-10258; 17020-17172
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:10094 ft.# Of Holes:2220
Interval Bottom:17172 ft.Hole Size:0.38 in.

Formation FTHYS                   Formation Classification:  OW                   Status:  CM - 5/14/2019                 Interval Top: 9657 ft.    Interval Bottom: 23745 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:2/21/2019Choke Size:
Formation Name:FORT HAYSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:12/22/2018Treatment End Date:N/A
Treatment Summary:9657-10058; 16132-16134; 16257-16258; 16620-16972; 17770-18372; 22777-22888; 23727-23745
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FTHYS.
Perforation Data:
Interval Top:9657 ft.# Of Holes:2220
Interval Bottom:23745 ft.Hole Size:0.38 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 5/14/2019                 Interval Top: 8420 ft.    Interval Bottom: 23679 ft.

 Completed Information for Formation CODELL
1st Production Date:2/21/2019Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:12/22/2018Treatment End Date:N/A
Treatment Summary:8420-9622; 10294-16099; 16170-16221; 16294-16572; 17220-17730; 18420-22720; 22942-23679
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:8420 ft.# Of Holes:2220
Interval Bottom:23679 ft.Hole Size:0.38 in.

Formation NBFHC                   Formation Classification:  OW                   Status:  PR - 6/1/2022                  Interval Top: 8420 ft.    Interval Bottom: 23745 ft.

 Completed Information for Formation NIOBRARA-FT HAYS-CODELL
1st Production Date:2/21/2019Choke Size:
Formation Name:NIOBRARA-FT HAYS-CODELLCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:12/22/2018Treatment End Date:1/14/2019
Treatment Summary:896,649# 100 Mesh Sand; 13,808,162# 20/40 Sand; 280,111 bbls gelled fluid; Flowback determined from well test separator.
Total fluid used in treatment (bbls):280111Max pressure during treatment (psi):4513
Total gas used in treatment (mcf):Fluid density (lbs/gal):8.34
Type Of gas:Number Of staged intervals:74
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.85
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):22272
Fresh water used in treatment (bbls):280111Disposition method For flowback:DISPOSAL
Total proppant used (lbs):14704811Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:2.375 in.Tubing Setting Depth:8141 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/23/2019Test Method:Flowing
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 503
BBLS_OIL 482
BTU_GAS 1322
CALC_BBLS_H2O 503
CALC_BBLS_OIL 482
CALC_GOR 1683
CALC_MCF_GAS 811
CASING_PRESS 2550
GRAVITY_OIL 42
MCF_GAS 811
TUBING_PRESS 2075
Perforation Data:
Interval Top:8420 ft.# Of Holes:2220
Interval Bottom:23745 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)20727
Total Gas Produced (MCF)160751
GOR7755
GOR DeterminationBOE
Average BOE per Day132.881
Average MCFE per Day770.743

 Federal Financial Assurance  i

 Tribal Well  i No
