Wellbore #00 Wellbore Classification: OW Status: PR - 5/1/2025 Measured TD: 18081 ft. Vertical TD: 7917 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 5/1/2025 | | Wellbore Permit | HORIZONTAL | | Permit #: | | Expiration Date: | 6/6/2021 | | Proposed Top PZ Location: | Sec:1 Twp: 1S 68W | Footage: 460 FNL 1125 FEL | | Bottom Hole Location: | Sec:12 Twp: 1S 68W | Footage: 360 FSL 1140 FEL | | Proposed Depth/Form: | 17968 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: CODL , Formation: CODELL , Order: 407-2483 , Unit Acreage: 1280, Drill Unit: Sec. 1 & 12: All | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1700 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 707, Top: 0 ft., Bottom: 1700 ft. | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 17968 ft., Weight: 17 , Citings Type: PLANNED | | Cement: | Sacks: 1806, Top: , Bottom: 17968 ft. | | Casing: | String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7225 ft., Depth: 12646 ft., Weight: 13.5 , Citings Type: PLANNED | | Cement: | Sacks: , Top: , Bottom: |
| | |

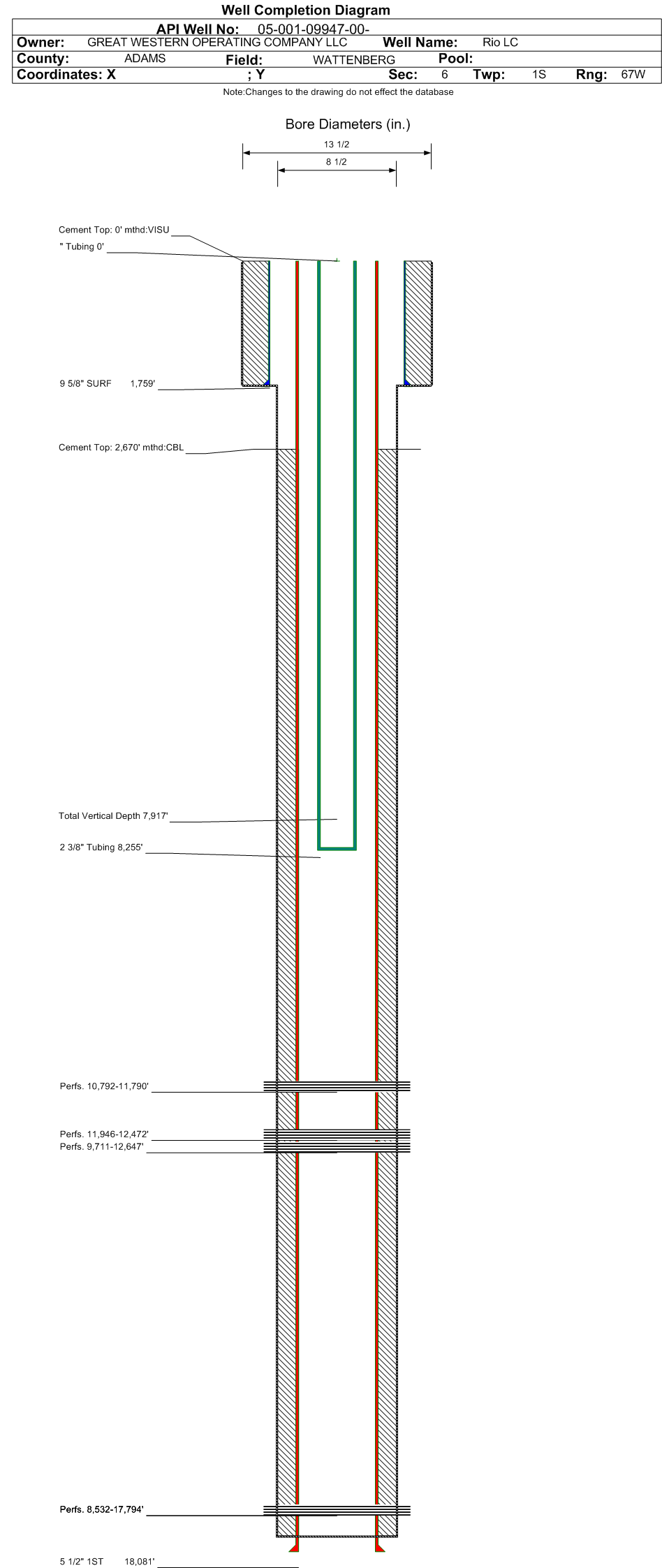

| Wellbore Completed | | Completion Date: | 7/26/2019 | | Spud Date: | 7/1/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 18081 ft. | Measured PB depth: | 18072 ft. | | True Vertical TD: | 7917 ft. | True Vertical PB depth: | 7917 ft. | | Top PZ Location: | Sec:1 Twp: 1S 68W | Footage: 566 FNL 1155 FEL | | Bottom Hole Location: | Sec:12 Twp: 1S 68W | Footage: 238 FSL 1137 FEL | | Log Types: | CBL, Mud Log, MWD/LWD, (Composite in API# 001-09950) | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1759 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 0 ft., Bottom: 1759 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.5 in., Size: 5.5 in., Top: 0 ft., Depth: 18081 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 2491, Top: 2670 ft., Bottom: 18081 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4444 ft. | 4548 ft. | N | N | | SUSSEX | 4812 ft. | 4972 ft. | N | N | | SHANNON | 5426 ft. | 5485 ft. | N | N | | SHARON SPRINGS | 7675 ft. | | N | N | | NIOBRARA | 7692 ft. | | N | N | | FORT HAYS | 8337 ft. | | N | N | | CODELL | 8458 ft. | | N | N | | CARLILE | 10792 ft. | | N | N |
Formation NBRR Formation Classification: OW Status: CM - 7/29/2020 Interval Top: 11946 ft. Interval Bottom: 12472 ft.| Completed Information for Formation NIOBRARA | | 1st Production Date: | 11/19/2019 | Choke Size: | | | Formation Name: | NIOBRARA | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 7/29/2020 | Treatment End Date: | N/A | | Treatment Summary: | Niobrara Perf Interval: 11946-12472 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation NBRR. |
| | Perforation Data: | | Interval Top: | 11946 ft. | # Of Holes: | 1410 | | Interval Bottom: | 12472 ft. | Hole Size: | 0.38 in. |
|
Formation CARL Formation Classification: OW Status: CM - 7/29/2020 Interval Top: 10792 ft. Interval Bottom: 11790 ft.| Completed Information for Formation CARLILE | | 1st Production Date: | 11/19/2019 | Choke Size: | | | Formation Name: | CARLILE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 7/29/2020 | Treatment End Date: | N/A | | Treatment Summary: | Carlile Perf Interval: 10792-11220, 11363-11790 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CARL. |
| | Perforation Data: | | Interval Top: | 10792 ft. | # Of Holes: | 1410 | | Interval Bottom: | 11790 ft. | Hole Size: | 0.38 in. |
|
Formation FTHYS Formation Classification: OW Status: CM - 7/29/2020 Interval Top: 9711 ft. Interval Bottom: 12647 ft.| Completed Information for Formation FORT HAYS | | 1st Production Date: | 11/19/2019 | Choke Size: | | | Formation Name: | FORT HAYS | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 7/29/2020 | Treatment End Date: | N/A | | Treatment Summary: | Fort Hays Perf Interval: 9711-9953, 12473-12647 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation FTHYS. |
| | Perforation Data: | | Interval Top: | 9711 ft. | # Of Holes: | 1410 | | Interval Bottom: | 12647 ft. | Hole Size: | 0.38 in. |
|
Formation CODL Formation Classification: OW Status: CM - 7/29/2020 Interval Top: 8532 ft. Interval Bottom: 17794 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 11/19/2019 | Choke Size: | | | Formation Name: | CODELL | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 7/29/2020 | Treatment End Date: | N/A | | Treatment Summary: | Codell Perf Interval: 8532-9710, 9954-10791, 11221-11362, 11791-11945, 12648-17794 | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CODL. |
| | Perforation Data: | | Interval Top: | 8532 ft. | # Of Holes: | 1410 | | Interval Bottom: | 17794 ft. | Hole Size: | 0.38 in. |
|
Formation NFCC Formation Classification: OW Status: PR - 5/1/2025 Interval Top: 8532 ft. Interval Bottom: 17794 ft.| Completed Information for Formation NIOBRARA-FORT HAYS-CODELL-CARLILE | | 1st Production Date: | 11/19/2019 | Choke Size: | | | Formation Name: | NIOBRARA-FORT HAYS-CODELL-CARLILE | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/25/2019 | Treatment End Date: | 10/14/2019 | | Treatment Summary: | 469,976# 100 Mesh Sand; 8,830,915# 20/40 Sand; 165,991 bbls gelled fluid; Flowback determined from well test separator. | | Total fluid used in treatment (bbls): | 165991 | Max pressure during treatment (psi): | 4420 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.33 | | Type Of gas: | | Number Of staged intervals: | 47 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.83 | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | 15539 | | Fresh water used in treatment (bbls): | 165991 | Disposition method For flowback: | DISPOSAL | | Total proppant used (lbs): | 9300891 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8255 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/21/2019 | Test Method: | Flowing | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 486 | | BBLS_OIL | 566 | | BTU_GAS | 1387 | | CALC_BBLS_H2O | 486 | | CALC_BBLS_OIL | 566 | | CALC_GOR | 2120 | | CALC_MCF_GAS | 1200 | | CASING_PRESS | 2043 | | GRAVITY_OIL | 45 | | MCF_GAS | 1200 | | TUBING_PRESS | 1440 |
| | Perforation Data: | | Interval Top: | 8532 ft. | # Of Holes: | 1410 | | Interval Bottom: | 17794 ft. | Hole Size: | 0.38 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 3591 |
| Total Gas Produced (MCF) | 60334 |
| GOR | 16801 |
| GOR Determination | MCFE |
| Average BOE per Day | 38.116 |
| Average MCFE per Day | 221.087 |
| Federal Financial Assurance | i | |
|
|
