COGIS - WELL SCOUT CARD

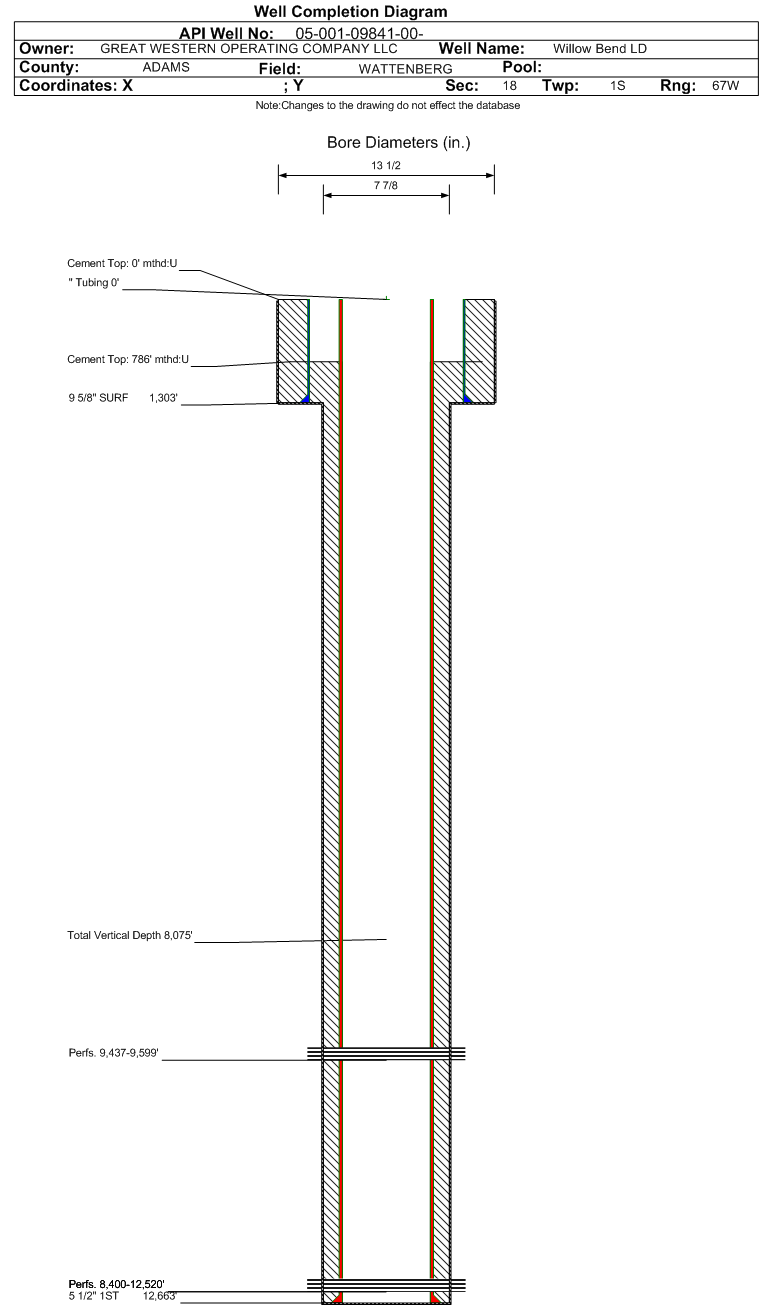

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-09841		Well Classification: OW Status: PA - 5/1/2025
Well Name/No:Willow Bend LD #18-361HC
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/1/2025
FacilityID:440563LocationID:434399
Municipality/County:THORNTON / ADAMS #001Location:NENE 18 1S67W 6
Field:WATTENBERG - #90750Elevation:5231 ft.
Basin:DENVER (DJ) BASIN
Planned Location:336FNL  497 FELLat/Long: 39.970958 / -104.923775Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.970959 / -104.923775Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 3/19/2015
End Date: 3/31/2015
Reported: 4/7/2015
Days to report: 7
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 5/1/2025             Measured TD: 12667 ft.    Vertical TD: 8075 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 5/1/2025
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:12/22/2016
Proposed Top PZ Location:Sec:18 Twp: 1S 67W Footage: 460 FNL  230 FEL
Bottom Hole Location:Sec:18 Twp: 1S 67W Footage: 470 FSL  230 FEL
Proposed Depth/Form:12708 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 320, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 121, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1300 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 579, Top: 0 ft., Bottom: 1300 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8377 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 716, Top: 1000 ft., Bottom: 8377 ft.
Wellbore Completed
Completion Date:2/28/2015
Spud Date:12/5/2014Spud Date Is:ACTUAL
Measured TD:12667 ft.Measured PB depth:12617 ft.
True Vertical TD:8075 ft.True Vertical PB depth:8075 ft.
Top PZ Location:Sec:18 Twp: 1S 67WFootage: 526 FNL  201 FEL
Bottom Hole Location:Sec:18 Twp: 1S 67WFootage: 472 FSL  233 FEL
Log Types:CBL, Mud Log, MWD/LWD, (Triple Combo in API # 001-09774-01)
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1303 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 1303 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 12662 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1266, Top: 786 ft., Bottom: 12662 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
PARKMAN4644 ft.4832 ft.NN
SUSSEX4992 ft.5169 ft.NN
SHANNON6044 ft.6311 ft.NN
SHARON SPRINGS7568 ft.NN
NIOBRARA7680 ft.NN
FORT HAYS8234 ft.NN
CODELL8321 ft.NN

Formation FTHYS                   Formation Classification:  OW                   Status:  CM - 8/14/2019                 Interval Top: 9437 ft.    Interval Bottom: 9599 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:4/12/2015Choke Size:
Formation Name:FORT HAYSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:8/14/2019Treatment End Date:N/A
Treatment Summary:Fort Hays Perf Interval: 9437' - 9599'
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FTHYS.
Perforation Data:
Interval Top:9437 ft.# Of Holes:630
Interval Bottom:9599 ft.Hole Size:0.42 in.

Formation CD-FH                   Formation Classification:  OW                   Status:  AB - 5/1/2025                  Interval Top: 8400 ft.    Interval Bottom: 12520 ft.

 Completed Information for Formation CODELL-FORT HAYS
1st Production Date:4/12/2015Choke Size:
Formation Name:CODELL-FORT HAYSCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:3/19/2015Treatment End Date:3/31/2015
Treatment Summary:223,500 lbs 40/70 Sand; 2,995,200 lbs 20/40 Sand; 223,500 lbs 20/40 CRC Sand; 117,800 lbs 100 Mesh; 79,935 bbls Gelled Fluid; Flowback determined from well test separator.
Total fluid used in treatment (bbls):79935Max pressure during treatment (psi):5208
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.33
Type Of gas:Number Of staged intervals:21
Total acid used in treatment (bbls):0Min frac gradient (psi/ft):0.90
Recycled water used in treatment (bbls):0Total flowback volume recovered (bbls):5262
Fresh water used in treatment (bbls):79935Disposition method For flowback:DISPOSAL
Total proppant used (lbs):3560000Green completions techniques utilized:Yes
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 363
BBLS_OIL 383
BTU_GAS 1313
CALC_BBLS_H2O 363
CALC_BBLS_OIL 383
CALC_GOR 1342
CALC_MCF_GAS 514
CASING_PRESS 2228
GRAVITY_OIL 44
MCF_GAS 514
TUBING_PRESS 855
Perforation Data:
Interval Top:8400 ft.# Of Holes:630
Interval Bottom:12520 ft.Hole Size:0.42 in.

Formation CODL                     Formation Classification:  OW                     Status:  CM - 8/14/2019                 Interval Top: 8400 ft.    Interval Bottom: 12520 ft.

 Completed Information for Formation CODELL
1st Production Date:4/12/2015Choke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Type:
Treatment Date:8/14/2019Treatment End Date:N/A
Treatment Summary:Codell Perf Interval: 8400' - 9436', 9600' - 12520'
Total fluid used in treatment (bbls):Max pressure during treatment (psi):
Total gas used in treatment (mcf):Fluid density (lbs/gal):
Type Of gas:Number Of staged intervals:
Total acid used in treatment (bbls):Min frac gradient (psi/ft):
Recycled water used in treatment (bbls):Total flowback volume recovered (bbls):
Fresh water used in treatment (bbls):Disposition method For flowback:
Total proppant used (lbs):Green completions techniques utilized:--
Reason green techniques Not utilized:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:8400 ft.# Of Holes:630
Interval Bottom:12520 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/01/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
