COGIS - WELL SCOUT CARD

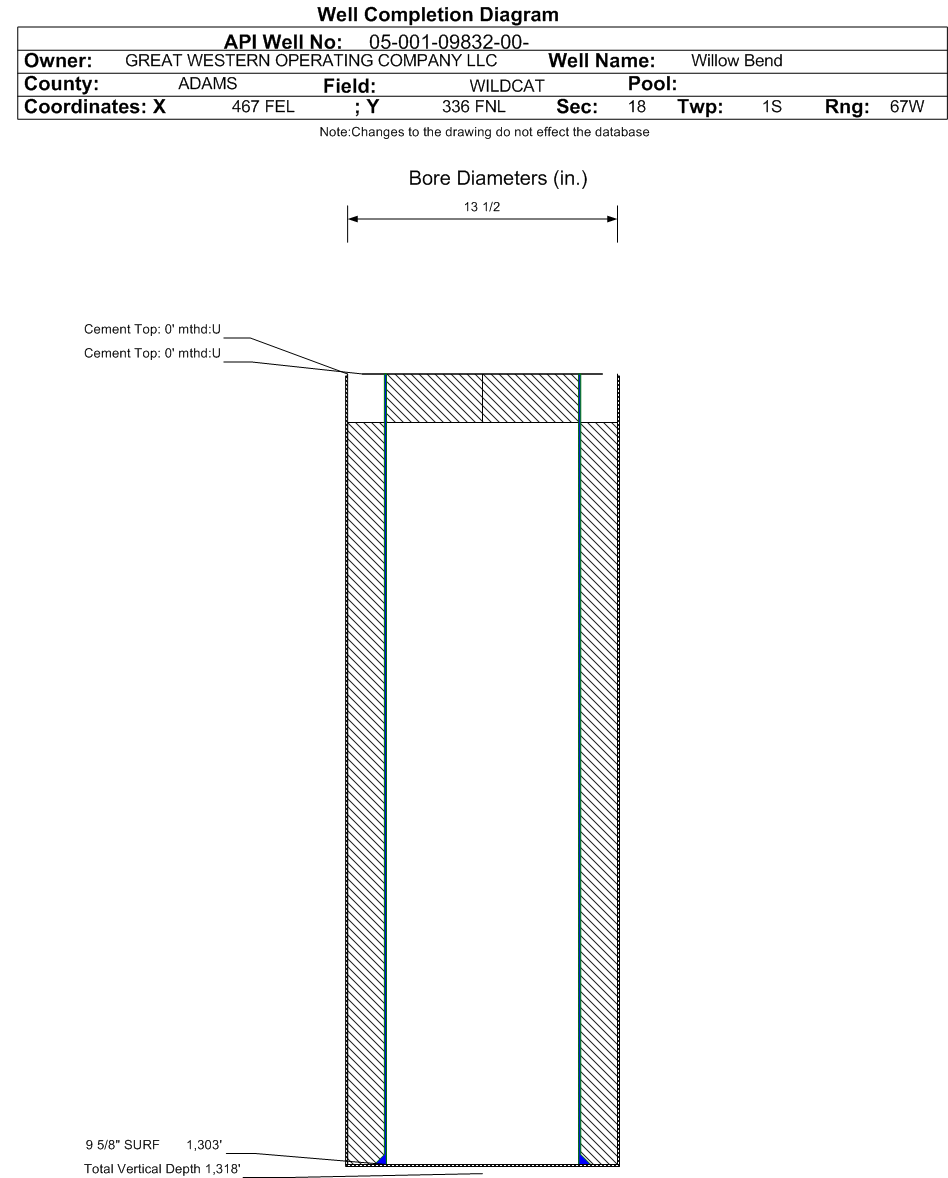

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-09832		Well Classification: LO Status: PA - 7/2/2019
Well Name/No:Willow Bend #18-361HN
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:GREAT WESTERN OPERATING COMPANY LLC - 10110
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/2/2019
FacilityID:439683LocationID:434399
Municipality/County:THORNTON / ADAMS #001Location:NENE 18 1S67W 6
Field:WILDCAT - #99999Elevation:5230 ft.
Basin:DENVER (DJ) BASIN
Planned Location:336FNL  467 FELLat/Long: 39.970958 / -104.923667Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.970958 / -104.923667Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: LO             Status: PA - 7/2/2019             Measured TD: 1318 ft.    Vertical TD: 1318 ft.

 Wellbore Data for Original WellboreWellbore Classification: LO        PA - 7/2/2019
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:11/4/2016
Proposed Top PZ Location:Sec:18 Twp: 1S 67W Footage: 460 FNL  86 FEL
Bottom Hole Location:Sec:18 Twp: 1S 67W Footage: 470 FSL  86 FEL
Proposed Depth/Form:12516 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: 320, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 121, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1300 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 579, Top: 0 ft., Bottom: 1300 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8154 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 695, Top: 1000 ft., Bottom: 8154 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7267 ft., Depth: 12483 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 323, Top: 7267 ft., Bottom: 12483 ft.
Wellbore Completed
Completion Date:12/4/2014
Spud Date:12/2/2014Spud Date Is:ACTUAL
Measured TD:1318 ft.Measured PB depth:1259 ft.
True Vertical TD:1318 ft.True Vertical PB depth:1259 ft.
Bottom Hole Location:Sec:18 Twp: 1S 67WFootage: 344 FNL  458 FEL
Log Types:
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: , Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 121, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1303 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 1303 ft., Determination Method: VISU
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/02/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
