COGIS - WELL SCOUT CARD

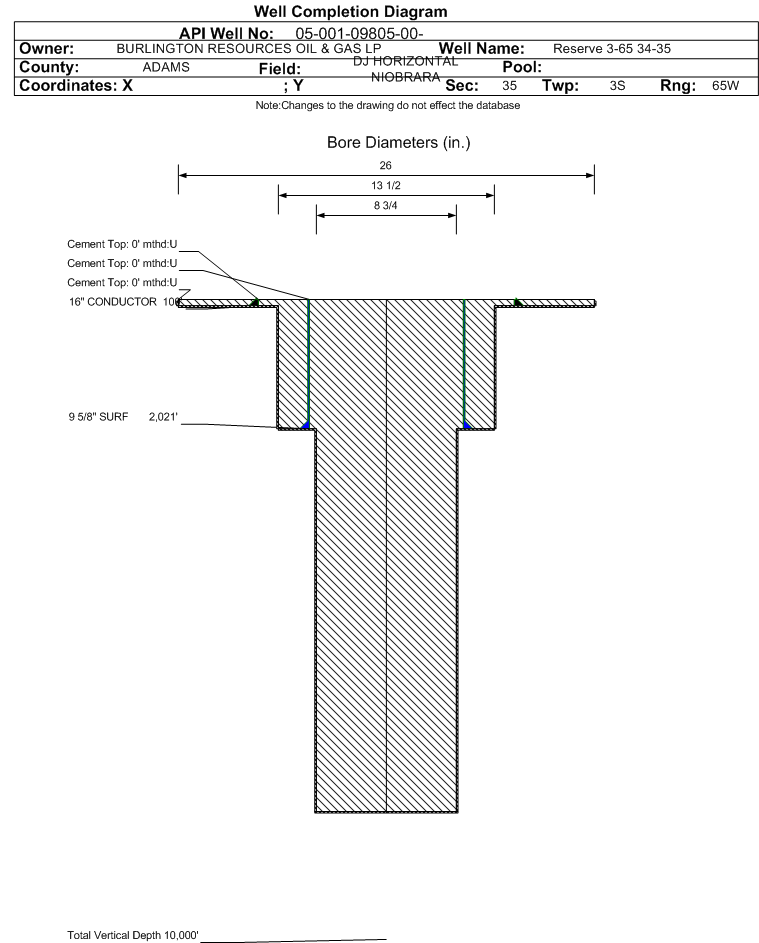

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-09805		Well Classification: OW Status: PR - 4/18/2025
Well Name/No:Reserve 3-65 34-35 #1H
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:CRESTONE PEAK RESOURCES OPERATING LLC - 10633
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/18/2025
FacilityID:436725LocationID:436726
Municipality/County:AURORA / ADAMS #001Location:NENE 35 3S65W 6
Field:DJ HORIZONTAL NIOBRARA - #16950Elevation:5506 ft.
Basin:DENVER (DJ) BASIN
Planned Location:600FNL  400 FELLat/Long: 39.752492 / -104.623217Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.752492 / -104.623214Lat/Long Source: Field Measured

FracFocus
Disclosure: Sidetrack #00
Start Date: 8/21/2014
End Date: 9/14/2014
Reported: 10/15/2014
Days to report: 31
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 7/14/2014             Measured TD: 8000 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 7/14/2014
Wellbore Permit
Permit #: Expiration Date:4/12/2016
Proposed Depth/Form:8209 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 39.7 , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 100 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2014 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 570, Top: 0 ft., Bottom: 2014 ft.
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 2014 ft., Depth: 8209 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:7/5/2014
Spud Date:7/4/2014Spud Date Is:ACTUAL
Measured TD:8000 ft.Measured PB depth:7067 ft.
True Vertical TD:True Vertical PB depth:
Log Types:LWD(Resistivity), Mud, Composite (Resistivity, Density, Neutron, Sonic)
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: CMP , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2021 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 640, Top: 0 ft., Bottom: 2021 ft., Determination Method: VISU
Casing:String Type: OPEN HOLE, Hole Size: 8.75 in., Size: , Top: 2021 ft., Depth: 8000 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: , Bottom: , Determination Method:
Additional Cement:String Type: OPEN HOLE , Top: 7067 ft., Depth: 7084 ft., Bottom: 8000 ft., Sacks: 315, Method:
FormationInterval TopLog BottomCoredDSTs
SHANNON4870 ft.NN
SUSSEX5246 ft.NN
SHARON SPRINGS7512 ft.NN
NIOBRARA7560 ft.NN
FORT HAYS7844 ft.
GREENHORN7911 ft.
  No formation data to display.

Sidetrack #01             Wellbore Classification: OW             Status: PR - 4/18/2025             Measured TD: 16359 ft.    Vertical TD: 7768 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: OW        PR - 4/18/2025
Wellbore PermitDIRECTIONAL
Permit #: Expiration Date:4/12/2016
Proposed Top PZ Location:Sec:35 Twp: 3S 65W Footage: 656 FNL  959 FEL
Bottom Hole Location:Sec:34 Twp: 3S 65W Footage: 603 FNL  1263 FWL
Proposed Depth/Form:16361 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: NBRR , Formation: NIOBRARA , Order: 535-430 , Unit Acreage: 1280, Drill Unit: S. 35 & 34:All
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: 39.7 , Citings Type: PLANNED
Cement:Sacks: 50, Top: 0 ft., Bottom: 100 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2014 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 570, Top: 0 ft., Bottom: 2014 ft.
Casing:String Type: 1ST LINER, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 16361 ft., Weight: 23 , Citings Type: PLANNED
Cement:Sacks: 2160, Top: 1914 ft., Bottom: 16361 ft.
Wellbore Completed
Completion Date:7/24/2014
Spud Date:7/4/2014Spud Date Is:ACTUAL
Measured TD:16359 ft.Measured PB depth:16212 ft.
True Vertical TD:7768 ft.True Vertical PB depth:7766 ft.
Top PZ Location:Sec:35 Twp: 3S 65WFootage: 656 FNL  959 FEL
Bottom Hole Location:Sec:34 Twp: 3S 65WFootage: 603 FNL  1263 FWL
Log Types:LWD, Mud, CBL
Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 100 ft., Weight: CMP , Citings Type: ACTUAL
Cement:Sacks: 50, Top: 0 ft., Bottom: 100 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2021 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 640, Top: 0 ft., Bottom: 2021 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 5.5 in., Top: 0 ft., Depth: 16349 ft., Weight: 23 , Citings Type: ACTUAL
Cement:Sacks: 2220, Top: 2100 ft., Bottom: 16349 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SHANNON4870 ft.NN
SUSSEX5246 ft.NN
SHARON SPRINGS7556 ft.NN
NIOBRARA7630 ft.NN

Formation NBRR                     Formation Classification:  OW                     Status:  PR - 4/18/2025                 Interval Top: 101 ft.    Interval Bottom: 701 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/8/2014Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Type:FRACTURE STIMULATION
Treatment Date:8/31/2014Treatment End Date:9/15/2014
Treatment Summary:Frac 47 stages in 181,532 bbls total fluids w/ 11,745,260 lbs total proppant including 10,813,260 lbs White 20/40 + 312,180 lbs White 40/70 + 619,820 lbs CRC 20/40.
Total fluid used in treatment (bbls):181532Max pressure during treatment (psi):9519
Total gas used in treatment (mcf):0Fluid density (lbs/gal):8.33
Type Of gas:Number Of staged intervals:47
Total acid used in treatment (bbls):3057Min frac gradient (psi/ft):0.84
Recycled water used in treatment (bbls):10101Total flowback volume recovered (bbls):15669
Fresh water used in treatment (bbls):168374Disposition method For flowback:DISPOSAL
Total proppant used (lbs):11745260Green completions techniques utilized:No
Reason green techniques Not utilized: PIPELINE
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 274
BBLS_OIL 699
BTU_GAS 1432
CALC_BBLS_H2O 274
CALC_BBLS_OIL 699
CALC_GOR 1135
CALC_MCF_GAS 793
GRAVITY_OIL 40
MCF_GAS 793
TUBING_PRESS 680
Perforation Data:
Interval Top:101 ft.# Of Holes:35
Interval Bottom:701 ft.Hole Size:0.375 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)7753
Total Gas Produced (MCF)15593
GOR2011
GOR DeterminationBOE
Average BOE per Day28.811
Average MCFE per Day167.109

 Federal Financial Assurance  i

 Tribal Well  i No
