COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-09776		Well Classification: LO Status: PA - 7/2/2019
Well Name/No:Willow Bend LD #18-23HC
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:GREAT WESTERN OPERATING COMPANY LLC - 10110
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/2/2019
FacilityID:434398LocationID:434399
Municipality/County:THORNTON / ADAMS #001Location:NENE 18 1S67W 6
Field:WILDCAT - #99999Elevation:5231 ft.
Basin:DENVER (DJ) BASIN
Planned Location:336FNL  676 FWLLat/Long: 39.970961 / -104.924417Lat/Long Source: Field Measured
As Drilled Location:Footages Not AvailableLat/Long: 39.970961 / -104.924419Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: LO             Status: PA - 7/2/2019             Measured TD: 1324 ft.    Vertical TD: 1324 ft.

 Wellbore Data for Original WellboreWellbore Classification: LO        PA - 7/2/2019
Wellbore PermitHORIZONTAL
Permit #: Expiration Date:9/25/2015
Proposed Top PZ Location:Sec:18 Twp: 1S 67W Footage: 460 FNL  1850 FEL
Bottom Hole Location:Sec:18 Twp: 1S 67W Footage: 470 FSL  1920 FEL
Proposed Depth/Form:12893 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: CODL , Formation: CODELL , Order: , Unit Acreage: 640, Drill Unit: GWA
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: 42 , Citings Type: PLANNED
Cement:Sacks: 121, Top: 0 ft., Bottom: 80 ft.
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1300 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 579, Top: 0 ft., Bottom: 1300 ft.
Casing:String Type: 1ST, Hole Size: 8.75 in., Size: 7 in., Top: 0 ft., Depth: 8603 ft., Weight: 26 , Citings Type: PLANNED
Cement:Sacks: 738, Top: 1000 ft., Bottom: 8603 ft.
Casing:String Type: 1ST LINER, Hole Size: 6.125 in., Size: 4.5 in., Top: 7842 ft., Depth: 12953 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 316, Top: 7842 ft., Bottom: 12953 ft.

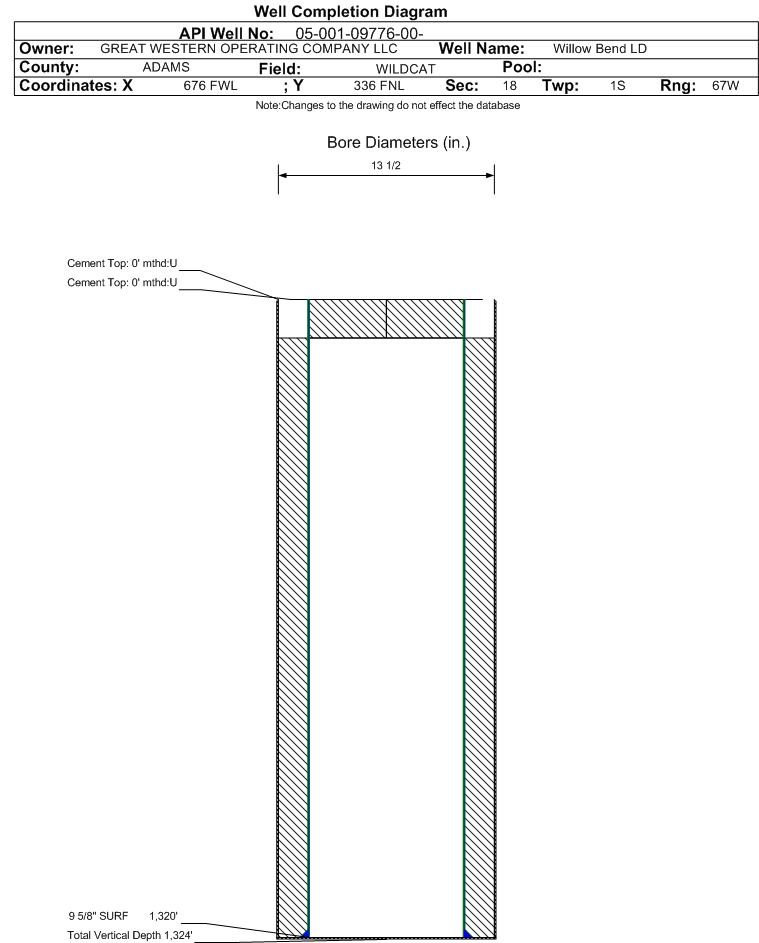

Wellbore Completed
Completion Date:12/12/2014
Spud Date:12/11/2014Spud Date Is:ACTUAL
Measured TD:1324 ft.Measured PB depth:1264 ft.
True Vertical TD:1324 ft.True Vertical PB depth:1264 ft.
Bottom Hole Location:Sec:18 Twp: 1S 67WFootage: 334 FNL  679 FEL
Log Types:
Casing:String Type: CONDUCTOR, Hole Size: , Size: , Top: , Depth: 80 ft., Weight: 42 , Citings Type: ACTUAL
Cement:Sacks: 121, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1320 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 1320 ft., Determination Method: VISU
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/02/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
