Wellbore #00 Wellbore Classification: OW Status: PA - 4/13/2022 Measured TD: 8667 ft. Vertical TD: 8525 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 4/13/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 1/8/2012 | | Proposed Top PZ Location: | Sec:9 Twp: 1S 67W | Footage: 630 FNL 2035 FWL | | Bottom Hole Location: | Sec:9 Twp: 1S 67W | Footage: 635 FNL 2044 FWL | | Proposed Depth/Form: | 8649 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: JSND , Formation: J SAND , Order: 232-23 , Unit Acreage: 320, Drill Unit: W/2 | | Formation And Spacing: | Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 407-87 , Unit Acreage: 80, Drill Unit: E/2NW4 | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1300 ft., Weight: 24 , Citings Type: PLANNED | | Cement: | Sacks: 910, Top: , Bottom: 1300 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8649 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: 8649 ft. |
| | |

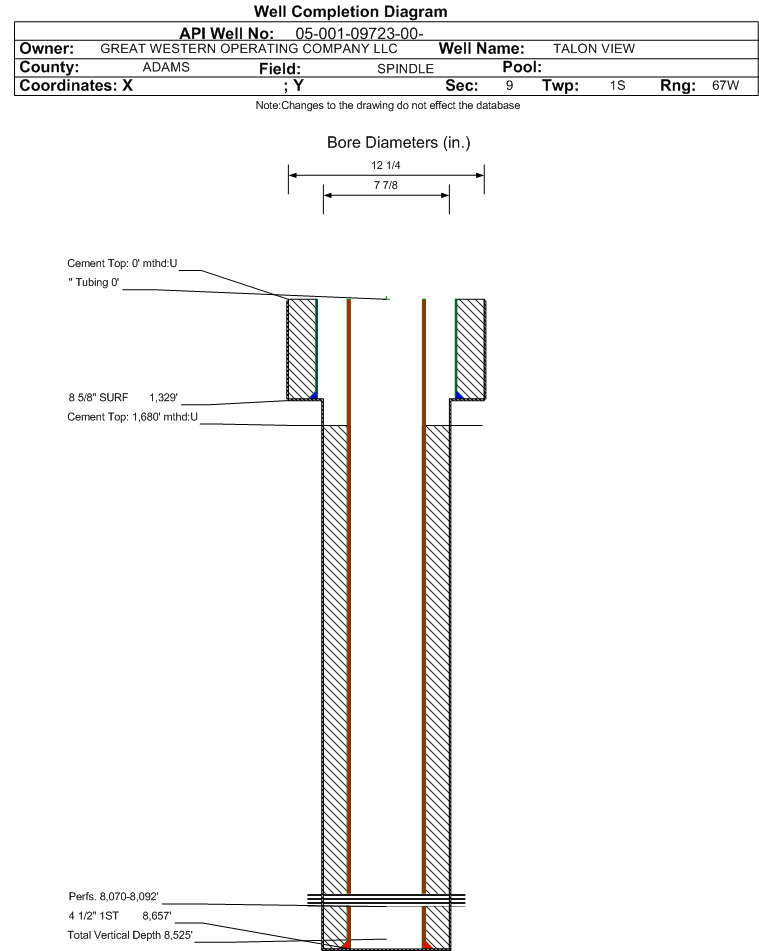

| Wellbore Completed | | Completion Date: | 10/5/2010 | | Spud Date: | 10/1/2010 | Spud Date Is: | ACTUAL | | Measured TD: | 8667 ft. | Measured PB depth: | 8626 ft. | | True Vertical TD: | 8525 ft. | True Vertical PB depth: | 8484 ft. | | Top PZ Location: | Sec:9 Twp: 1S 67W | Footage: 630 FNL 2035 FWL | | Bottom Hole Location: | Sec:9 Twp: 1S 67W | Footage: 635 FNL 2044 FWL | | Log Types: | Preliminary Form 5 | | Log Types: | DI-GL-GR, CBL | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1329 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 890, Top: 0 ft., Bottom: 1329 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8657 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1150, Top: 1680 ft., Bottom: 8657 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | PARKMAN | 4660 ft. | | | | | SUSSEX | 5338 ft. | | | | | NIOBRARA | 7645 ft. | | | | | FORT HAYS | 8047 ft. | | | | | CODELL | 8068 ft. | | | | | J SAND | 8510 ft. | | | |
Formation CODL Formation Classification: OW Status: AB - 4/13/2022 Interval Top: 8070 ft. Interval Bottom: 8092 ft.| Completed Information for Formation CODELL | | 1st Production Date: | 1/26/2011 | Choke Size: | | | Formation Name: | CODELL | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/8/2011 | | Treatment Summary: | Frac Codell down 4-1/2" Csg w/ 205,973 gal Slickwater w/ 150,500# 40/70 & 4,000# 20/40 SB Excel |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_OIL | 53 | | BTU_GAS | 1234 | | CALC_BBLS_OIL | 53 | | CALC_GOR | 943 | | CALC_MCF_GAS | 50 | | CASING_PRESS | 1500 | | GRAVITY_OIL | 40 | | MCF_GAS | 50 |
| | Perforation Data: | | Interval Top: | 8070 ft. | # Of Holes: | 66 | | Interval Bottom: | 8092 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 04/13/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
