COGIS - WELL SCOUT CARD

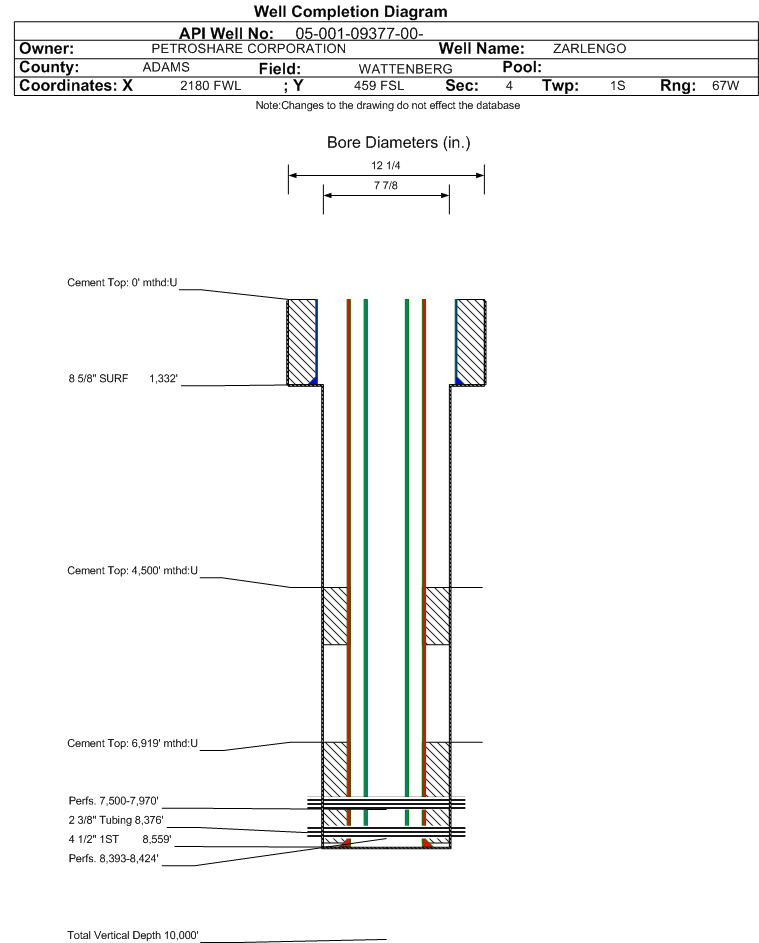

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-09377		Well Classification: GW Status: PR - 3/1/2023
Well Name/No:ZARLENGO #24-4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:HELENA RESOURCES INC - 10547
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date3/1/2023
FacilityID:203817LocationID:320458
County:ADAMS #001Location:SESW 4 1S67W 6
Field:WATTENBERG - #90750Elevation:5178 ft.
Basin:DENVER (DJ) BASIN
Planned Location:459FSL  2180 FWLLat/Long: 39.987709 / -104.895552Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.987698 / -104.895505Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/1/2023             Measured TD: 8564 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/1/2023
Wellbore PermitDRIFTED
Permit #:19980625 Expiration Date:6/30/1999
Proposed Depth/Form:8525 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 318A , Unit Acreage: 320, Drill Unit: W/2
Wellbore Completed
Completion Date:10/12/1998
Spud Date:9/2/1998Spud Date Is:ACTUAL
Measured TD:8564 ft.Measured PB depth:8513 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL, CD/CN/GR ATTACHED CBL
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1332 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 545, Top: 0 ft., Bottom: 1332 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8559 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 275, Top: 6919 ft., Bottom: 8492 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 5398 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 185, Top: 4500 ft., Bottom: 5396 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX5038 ft.
NIOBRARA7479 ft.
CODELL7949 ft.
J SAND8392 ft.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 8/17/2012                 Interval Top: 8393 ft.    Interval Bottom: 8424 ft.

 Completed Information for Formation J SAND
1st Production Date:10/19/1998Choke Size:0.312 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:10/12/1998
Treatment Summary:SEE DOCUMENT # 812616
Tubing Size:2.375 in.Tubing Setting Depth:8376 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/22/1998Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 88
BBLS_OIL 4
CALC_BBLS_H2O 88
CALC_BBLS_OIL 4
CALC_GOR 152750
CALC_MCF_GAS 611
CASING_PRESS 500
GRAVITY_OIL 56.8
MCF_GAS 611
Perforation Data:
Interval Top:8393 ft.# Of Holes:
Interval Bottom:8424 ft.Hole Size:0.38 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  PR - 3/1/2023                  Interval Top: 7500 ft.    Interval Bottom: 7970 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/6/2005
Treatment Summary:FRAC CODL (7950-7970') W/131,607 GALS FRAC FLUID+263,540# 20/40 SD&12,000# 12/20 SD. FRAC NB (750-7802') W/180,214 GALS FRAC FLUID + 238,880# 30/50 SAND & 12,000#12/20 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:8376 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/6/2005Test Method:
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 76
CALC_GOR 1921
MCF_GAS 146
Perforation Data:
Interval Top:7500 ft.# Of Holes:256
Interval Bottom:7970 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
01/2025 - 12/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)512
Total Gas Produced (MCF)777
GOR1517
GOR DeterminationBOE
Average BOE per Day1.750
Average MCFE per Day10.150

 Federal Financial Assurance  i

 Tribal Well  i No
