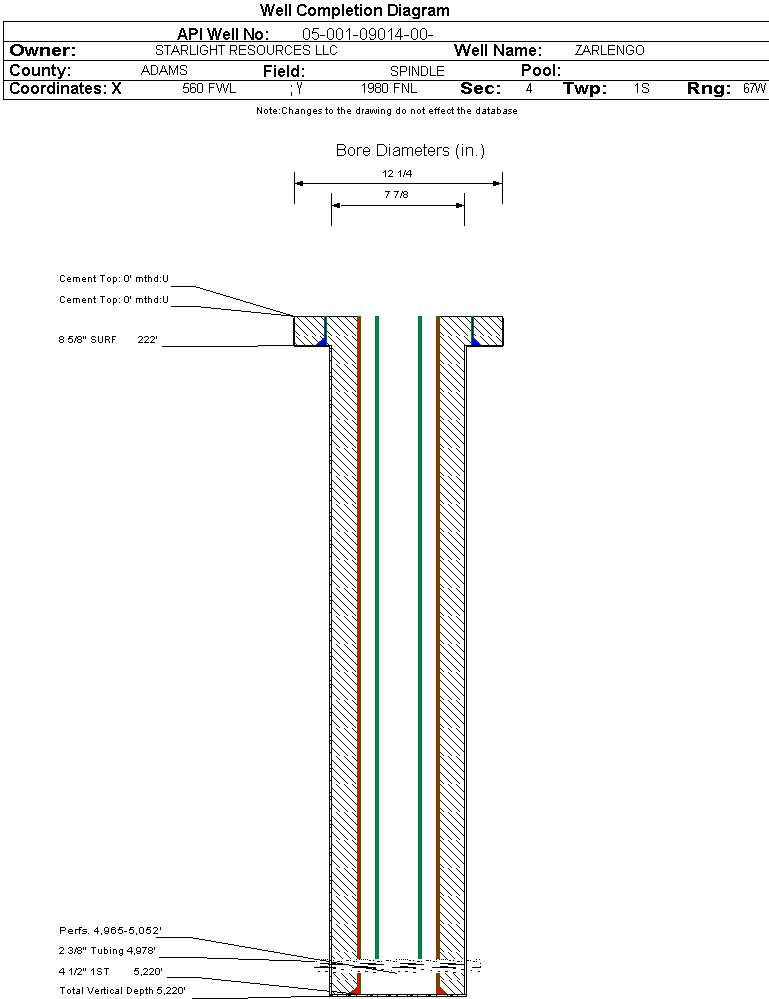

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-09014		Well Classification: OW Status: PR - 8/1/2025
Well Name/No:ZARLENGO #B1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/1/2025
FacilityID:203455LocationID:320326
County:ADAMS #001Location:SWNW 4 1S67W 6
Field:SPINDLE - #77900Elevation:5148 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  560 FWLLat/Long: 39.994959 / -104.901382Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.995500 / -104.901489Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 8/1/2025             Measured TD: 5220 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 8/1/2025
Wellbore Permit
Permit #:19910186 Expiration Date:7/12/1991
Proposed Depth/Form:5300 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 12 , Unit Acreage: 80, Drill Unit: W2NW
Wellbore Completed
Completion Date:4/10/1991
Spud Date:3/26/1991Spud Date Is:ACTUAL
Measured TD:5220 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DUAL INDUCTION & COMPENSATED DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 222 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 222 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5220 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 4540 ft., Bottom: 5220 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS712 ft.
PIERRE933 ft.
SUSSEX4965 ft.

Formation SUSX                     Formation Classification:  OW                     Status:  PR - 8/1/2025                  Interval Top: 4965 ft.    Interval Bottom: 5052 ft.

 Completed Information for Formation SUSSEX
1st Production Date:4/10/1991Choke Size:0.000 in.
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:4/10/1991
Treatment Summary:SEE DOCUMENT # 305069
Tubing Size:2.375 in.Tubing Setting Depth:4978 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/23/1991Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 44
BBLS_OIL 38
CALC_GOR 1579
GRAVITY_OIL 39
MCF_GAS 60
Perforation Data:
Interval Top:4965 ft.# Of Holes:55
Interval Bottom:5052 ft.Hole Size:
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
01/2025 - 12/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
January 2025 - December 2025i
Total Oil Produced (Barrels)52
Total Gas Produced (MCF)201
GOR3865
GOR DeterminationBOE
Average BOE per Day0.232
Average MCFE per Day1.358

 Federal Financial Assurance  i

 Tribal Well  i No
