COGIS - WELL SCOUT CARD

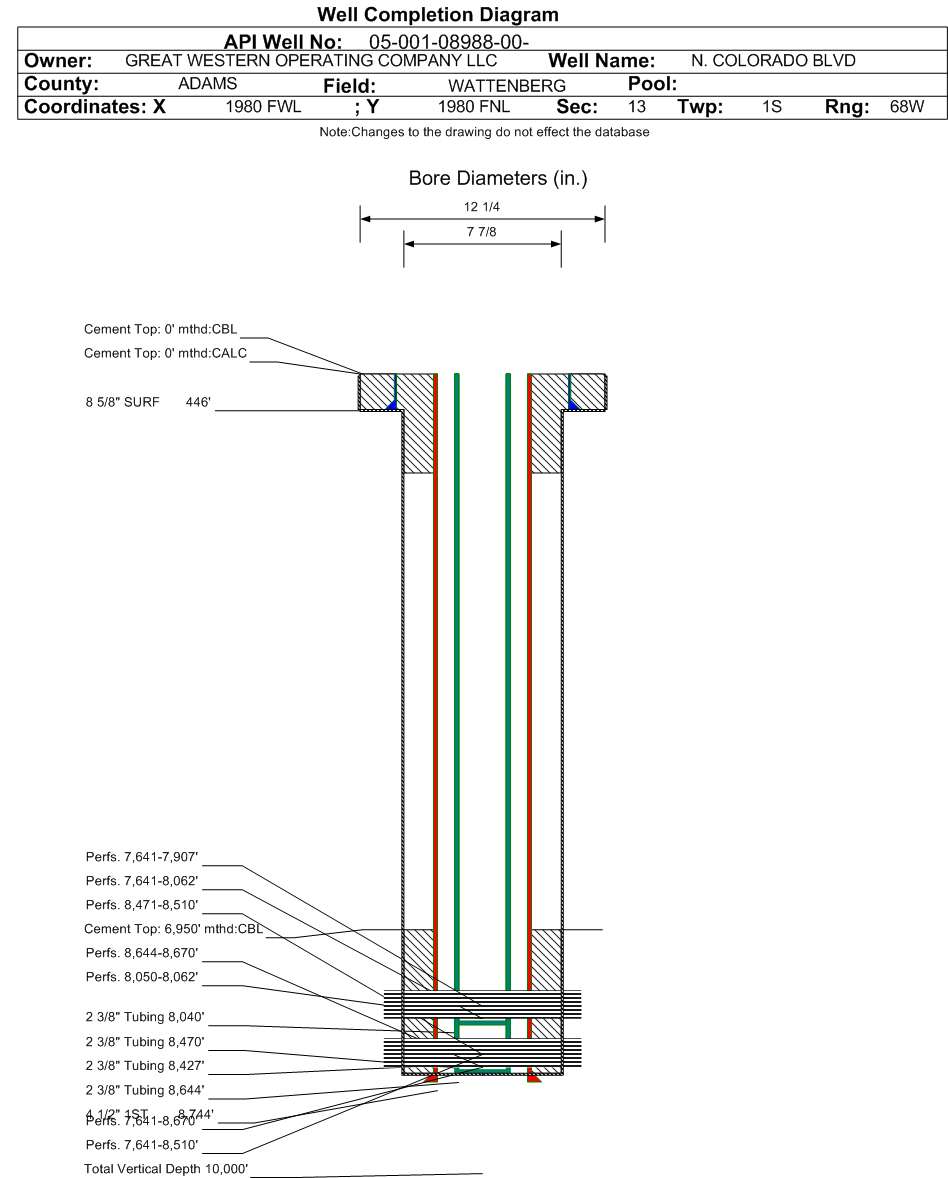

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-08988		Well Classification: GW Status: PA - 12/2/2019
Well Name/No:N. COLORADO BLVD #24-13-8
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/2/2019
FacilityID:203429LocationID:320311
County:ADAMS #001Location:SESW 13 1S68W 6
Field:WATTENBERG - #90750Elevation:5176 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1222FSL  1976 FWLLat/Long: 39.960793 / -104.952154Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.960789 / -104.952403Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 12/2/2019             Measured TD: 8744 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 12/2/2019
Wellbore Permit
Permit #:19901102 Expiration Date:1/26/1991
Proposed Depth/Form:8774 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DKTA , Formation: DAKOTA , Order: 467-9 , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: JSND , Formation: J SAND , Order: , Unit Acreage: 160, Drill Unit: SW4
Formation And Spacing:Code: NB-CD , Formation: NIOBRARA-CODELL , Order: 467-9 , Unit Acreage: 160, Drill Unit: SW4
Wellbore Completed
Completion Date:4/30/1993
Spud Date:10/3/1990Spud Date Is:ACTUAL
Measured TD:8744 ft.Measured PB depth:8690 ft.
True Vertical TD:True Vertical PB depth:
Log Types:DIL, DCPL, CBL, MUD
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 446 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 310, Top: 0 ft., Bottom: 446 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8744 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 500, Top: 6950 ft., Bottom: 8744 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: 0 ft., Depth: 1239 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 390, Top: 0 ft., Bottom: 1239 ft., Determination Method: CBL
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 5226 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 4782 ft., Bottom: 5226 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4970 ft.
NIOBRARA7613 ft.
FORT HAYS8024 ft.
CODELL8045 ft.
J SAND8467 ft.
DAKOTA8640 ft.

Formation DKTA                     Formation Classification:  GW                     Status:  AB - 12/2/2019                 Interval Top: 8644 ft.    Interval Bottom: 8670 ft.

 Completed Information for Formation DAKOTA
1st Production Date:8/30/1999Choke Size:
Formation Name:DAKOTACommingled:
Production Method:PLUNGER 500
Open Hole Completion:
Formation Treatment
Treatment Date:4/30/1993
Treatment Summary:3400# 100 MESH; 53,700# 20/40; 13,644 GAL
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DKTA.
Perforation Data:
Interval Top:8644 ft.# Of Holes:
Interval Bottom:8670 ft.Hole Size:

Formation JSND                     Formation Classification:  GW                     Status:  AB - 12/2/2019                 Interval Top: 8471 ft.    Interval Bottom: 8510 ft.

 Completed Information for Formation J SAND
1st Production Date:2/7/1991Choke Size:0.313 in.
Formation Name:J SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/30/1993
Treatment Summary:25,000# 100 MESH; 525,000# 20/40 SAND; 4,619 BBLS 40# & 35# GEL; 105 BO; ATP 3200# AT 29.5 BPM . ISDP 2950#, 15 MIN 2890#
Tubing Size:2.375 in.Tubing Setting Depth:8427 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/11/1991Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 58
BBLS_OIL 18
CALC_GOR 32500
CASING_PRESS 750
MCF_GAS 585
TUBING_PRESS 575
Perforation Data:
Interval Top:8471 ft.# Of Holes:40
Interval Bottom:8510 ft.Hole Size:0.375 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 5/31/2008                 Interval Top: 8050 ft.    Interval Bottom: 8062 ft.

 Completed Information for Formation CODELL
1st Production Date:10/21/1992Choke Size:
Formation Name:CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:8050 ft.# Of Holes:7
Interval Bottom:8062 ft.Hole Size:0.375 in.

Formation DKJNC                   Formation Classification:  GW                   Status:  CM - 5/31/2008                 Interval Top: 7641 ft.    Interval Bottom: 8670 ft.

 Completed Information for Formation DAKOTA-J-NIOBRARA-CODELL
1st Production Date:8/30/1999Choke Size:
Formation Name:DAKOTA-J-NIOBRARA-CODELLCommingled:No
Production Method:PLUNGER LIFT
Open Hole Completion:No
Tubing Size:2.375 in.Tubing Setting Depth:8644 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/30/1999Test Method:PLUNGER LIFT
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 3
CALC_GOR 76667
CASING_PRESS 330
GRAVITY_OIL 60
MCF_GAS 230
TUBING_PRESS 250
Perforation Data:
Interval Top:7641 ft.# Of Holes:
Interval Bottom:8670 ft.Hole Size:

Formation JNBCD                   Formation Classification:  GW                   Status:  CM - 5/31/2008                 Interval Top: 7641 ft.    Interval Bottom: 8510 ft.

 Completed Information for Formation J-NIOBRARA-CODELL
1st Production Date:4/30/1993Choke Size:
Formation Name:J-NIOBRARA-CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:2.375 in.Tubing Setting Depth:8470 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/2/1993Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 40
BBLS_OIL 177
CALC_GOR 2927
GRAVITY_OIL 44
MCF_GAS 518
Perforation Data:
Interval Top:7641 ft.# Of Holes:56
Interval Bottom:8510 ft.Hole Size:0.375 in.

Formation NB-CD                   Formation Classification:  GW                   Status:  AB - 12/2/2019                 Interval Top: 7641 ft.    Interval Bottom: 8062 ft.

 Completed Information for Formation NIOBRARA-CODELL
1st Production Date:10/21/1992Choke Size:0.219 in.
Formation Name:NIOBRARA-CODELLCommingled:Yes
Production Method:
Open Hole Completion:Yes
Formation Treatment
Treatment Date:4/30/1993
Treatment Summary:2377 BBLS 35&30 FLUID (70 BO IN 1ST 1400 BBLS) W/10,000# 100 MESH & 335,000# 20/40.ATP 3687@ 31.3 BPM. ISDP 2740#.
Tubing Size:2.375 in.Tubing Setting Depth:8040 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/20/1992Test Method:FLOWING
Hours Tested:24Gas Type:SHALE
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 18
BBLS_OIL 30
CALC_GOR 6166
CASING_PRESS 525
GRAVITY_OIL 44
MCF_GAS 185
TUBING_PRESS 200
Perforation Data:
Interval Top:7641 ft.# Of Holes:16
Interval Bottom:8062 ft.Hole Size:0.375 in.

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 5/31/2008                 Interval Top: 7641 ft.    Interval Bottom: 7907 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:10/21/1992Choke Size:
Formation Name:NIOBRARACommingled:
Production Method:FLOWING
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7641 ft.# Of Holes:9
Interval Bottom:7907 ft.Hole Size:0.375 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/02/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
