COGIS - WELL SCOUT CARD

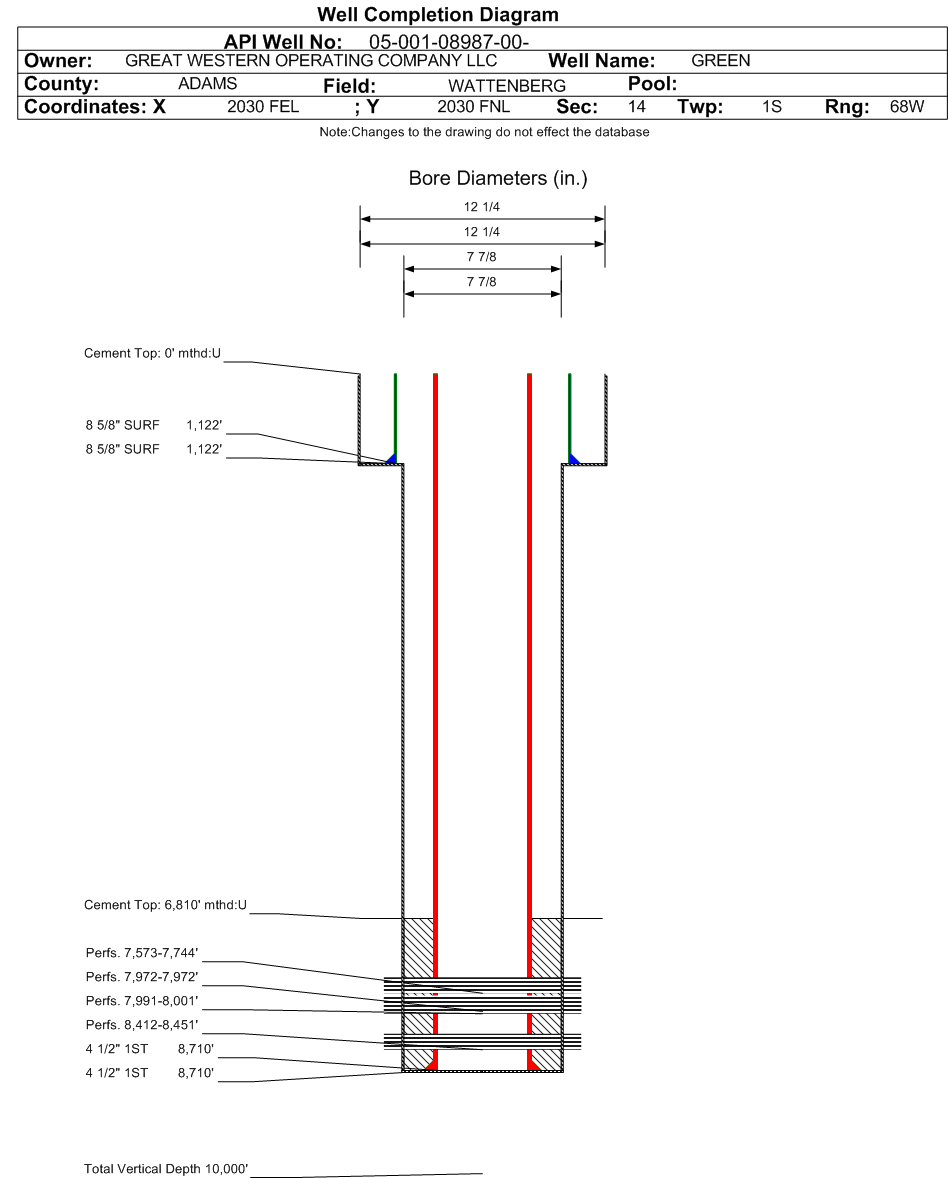

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-08987		Well Classification: GW Status: PA - 5/24/2021
Well Name/No:GREEN #32-14 (1)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PDC ENERGY INC - 69175
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/24/2021
FacilityID:203428LocationID:320310
Municipality/County:THORNTON / ADAMS #001Location:SWNE 14 1S68W 6
Field:WATTENBERG - #90750Elevation:5109 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2030FNL  2030 FELLat/Long: 39.966499 / -104.966554Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.966425 / -104.966769Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 5/24/2021             Measured TD: 8710 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 5/24/2021
Wellbore Permit
Permit #:901082 Expiration Date:1/8/1995
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 6 , Unit Acreage: 160, Drill Unit: NE4
Wellbore Completed
Completion Date:12/14/1990
Measured TD:8710 ft.Measured PB depth:8648 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1122 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 700, Top: 0 ft., Bottom: 1122 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8710 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 565, Top: 6810 ft., Bottom: 8710 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX4836 ft.
NIOBRARA7554 ft.
FORT HAYS7840 ft.
CODELL7988 ft.
J SAND8410 ft.
DAKOTA8585 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 5/24/2021                 Interval Top: 8412 ft.    Interval Bottom: 8451 ft.

 Completed Information for Formation J SAND
1st Production Date:12/17/1990Choke Size:1,864.000 in.
Formation Name:J SANDCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation JSND.
Perforation Data:
Interval Top:8412 ft.# Of Holes:68
Interval Bottom:8451 ft.Hole Size:0.375 in.

Formation CODL                     Formation Classification:  GW                     Status:  CM - 8/9/1994                  Interval Top: 7991 ft.    Interval Bottom: 8001 ft.

 Completed Information for Formation CODELL
1st Production Date:N/AChoke Size:
Formation Name:CODELLCommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:7991 ft.# Of Holes:10
Interval Bottom:8001 ft.Hole Size:

Formation FTHYS                   Formation Classification:  GW                   Status:  CM - 8/9/1994                  Interval Top: 7972 ft.    Interval Bottom: 7972 ft.

 Completed Information for Formation FORT HAYS
1st Production Date:N/AChoke Size:
Formation Name:FORT HAYSCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation FTHYS.
Perforation Data:
Interval Top:7972 ft.# Of Holes:1
Interval Bottom:7972 ft.Hole Size:

Formation NBRR                     Formation Classification:  GW                     Status:  CM - 8/9/1994                  Interval Top: 7573 ft.    Interval Bottom: 7744 ft.

 Completed Information for Formation NIOBRARA
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARACommingled:Yes
Production Method:
Open Hole Completion:No
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBRR.
Perforation Data:
Interval Top:7573 ft.# Of Holes:171
Interval Bottom:7744 ft.Hole Size:

Formation NBFHC                   Formation Classification:  GW                   Status:  AB - 5/24/2021

 Completed Information for Formation NIOBRARA-FT HAYS-CODELL
1st Production Date:N/AChoke Size:
Formation Name:NIOBRARA-FT HAYS-CODELLCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation NBFHC.
No Perforation Data was found for formation NBFHC.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/24/2021
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
