COGIS - WELL SCOUT CARD

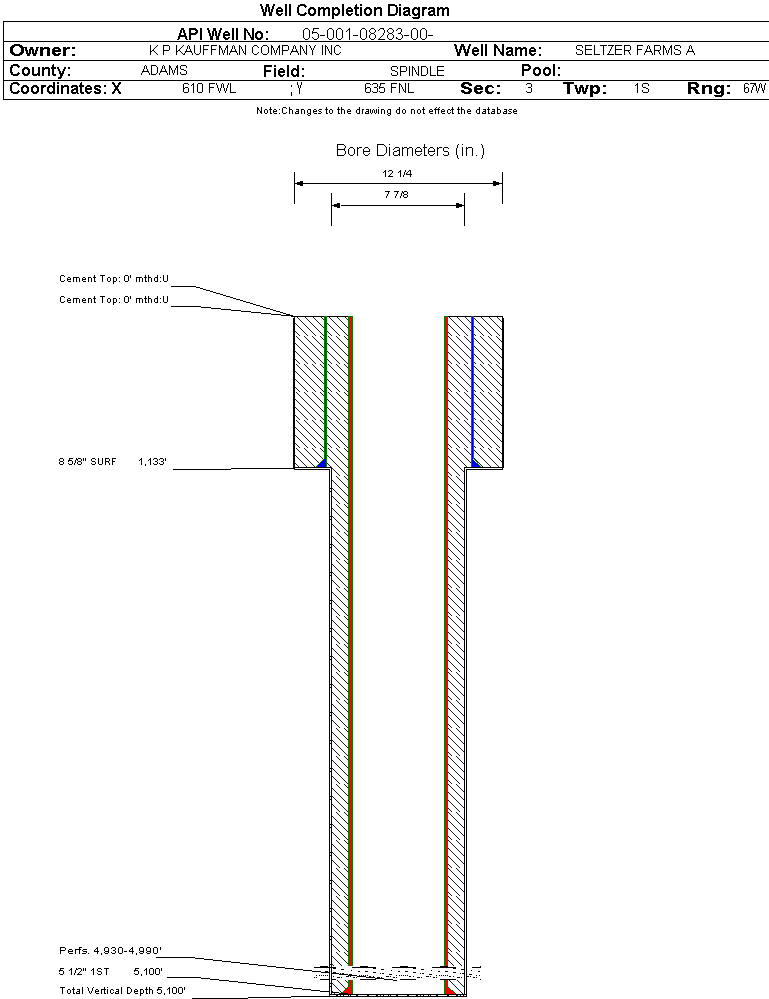

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-08283		Well Classification: OW Status: PA - 5/9/2025
Well Name/No:SELTZER FARMS A #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date5/9/2025
FacilityID:202878LocationID:320167
County:ADAMS #001Location:NWNW 3 1S67W 6
Field:SPINDLE - #77900Elevation:5100 ft.
Basin:DENVER (DJ) BASIN
Planned Location:635FNL  610 FWLLat/Long: 39.998659 / -104.882242Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.998661 / -104.882264Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: AB - 5/9/2025             Measured TD: 5100 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        AB - 5/9/2025
Wellbore Permit
Permit #:19830390 Expiration Date:8/27/1983
Proposed Depth/Form:5100 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 40, Drill Unit: NWNW
Wellbore Completed
Completion Date:9/25/1983
Spud Date:6/9/1983Spud Date Is:ACTUAL
Measured TD:5100 ft.Measured PB depth:5050 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:DIL-SP, FDC-GR CALIPER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1133 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 1133 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 5100 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 185, Top: 3872 ft., Bottom: 5100 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
PIERRE1188 ft.
SUSSEX4880 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 5/9/2025                  Interval Top: 4930 ft.    Interval Bottom: 4990 ft.

 Completed Information for Formation SUSSEX
1st Production Date:9/22/1983Choke Size:1.000 in.
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:9/25/1983
Treatment Summary:SEE DOCUMENT # 308414
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/25/1983Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 15
BBLS_OIL 20
CALC_BBLS_H2O 15
CALC_BBLS_OIL 20
CALC_GOR 1250
CALC_MCF_GAS 25
GRAVITY_OIL 39.8
MCF_GAS 25
Perforation Data:
Interval Top:4930 ft.# Of Holes:
Interval Bottom:4990 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY05/09/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)52
GOR
GOR DeterminationMCFE
Average BOE per Day0.027
Average MCFE per Day0.142

 Federal Financial Assurance  i

 Tribal Well  i No
