COGIS - WELL SCOUT CARD

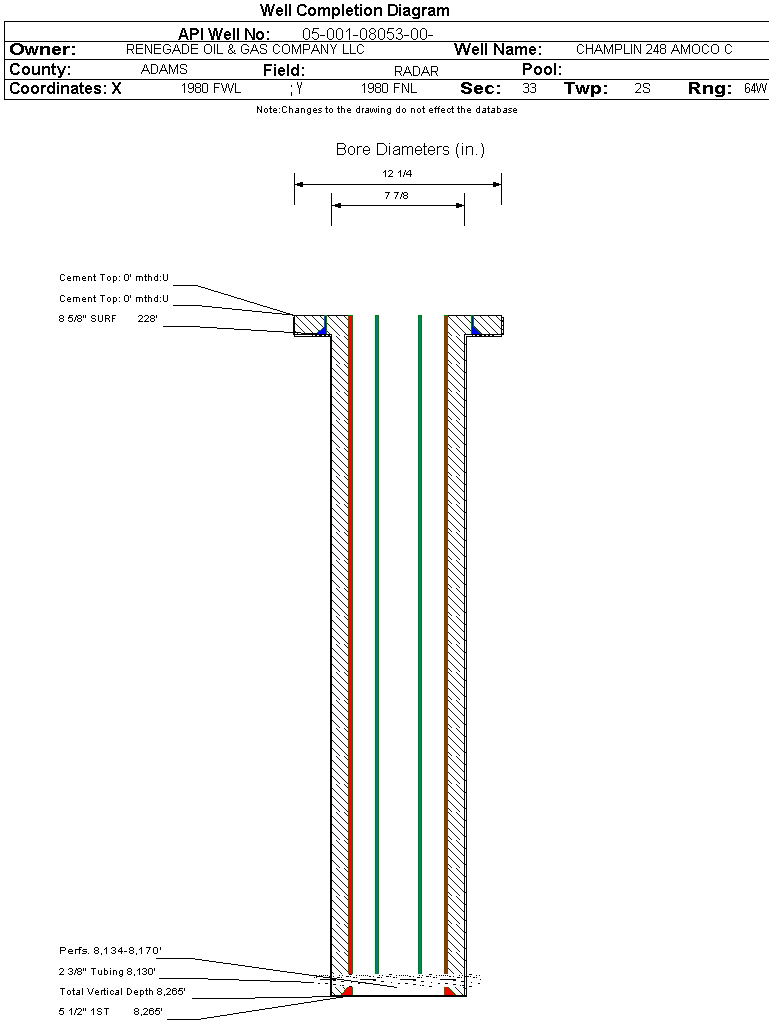

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-08053		Well Classification: OW Status: SI - 7/1/2018
Well Name/No:CHAMPLIN 248 AMOCO C #7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RENEGADE OIL & GAS COMPANY LLC - 74165
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date7/1/2018
FacilityID:202648LocationID:320105
County:ADAMS #001Location:SENW 33 2S64W 6
Field:RADAR - #71300Elevation:5430 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  1980 FWLLat/Long: 39.835102 / -104.557520Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.835020 / -104.557520Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 7/1/2018             Measured TD: 8265 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 7/1/2018
Wellbore Permit
Permit #:19820031 Expiration Date:5/15/1982
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:3/24/1982
Spud Date:1/19/1982Spud Date Is:ACTUAL
Measured TD:8265 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: SP-IES, FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 228 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8265 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE1600 ft.
SUSSEX4890 ft.
SHANNON5530 ft.
NIOBRARA7297 ft.
CODELL7668 ft.
BENTONITE7950 ft.
D SAND8050 ft.
J SAND8110 ft.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 7/1/2018                  Interval Top: 8134 ft.    Interval Bottom: 8170 ft.

 Completed Information for Formation J SAND
1st Production Date:8/27/1981Choke Size:0.188 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:3/24/1982
Treatment Summary:SEE SCANNED DOCUMENT #00370197
Tubing Size:2.375 in.Tubing Setting Depth:8130 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/24/1982Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 13
BBLS_OIL 40
CALC_BBLS_H2O 13
CALC_BBLS_OIL 40
CALC_MCF_GAS 500
GRAVITY_OIL 44.6
MCF_GAS 500
Perforation Data:
Interval Top:8134 ft.# Of Holes:144
Interval Bottom:8170 ft.Hole Size:
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
02/12/2024
Defined Inactive (SI )YDefined Inactive
06/30/2018
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
