COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-07917		Well Classification: OW Status: SI - 12/1/2018
Well Name/No:CHAMPLIN 67 AMOCO L #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RENEGADE OIL & GAS COMPANY LLC - 74165
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date12/1/2018
FacilityID:202512LocationID:320072
County:ADAMS #001Location:NWSW 3 2S63W 6
Field:CHIEFTAIN - #11060Elevation:5155 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  620 FWLLat/Long: 39.903022 / -104.430597Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.903120 / -104.430600Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 12/1/2018             Measured TD: 7635 ft.    Vertical TD: 7635 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 12/1/2018
Wellbore Permit
Permit #:19811224 Expiration Date:11/17/1981
Proposed Depth/Form:7600 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 291-2 , Unit Acreage: 40, Drill Unit: NWSW
Wellbore Completed
Completion Date:11/6/1981
Spud Date:7/4/1981Spud Date Is:ACTUAL
Measured TD:7635 ft.Measured PB depth:7583 ft.
True Vertical TD:7635 ft.True Vertical PB depth:
Log Types: SP-IES, FDC-FR CALIPER LOG

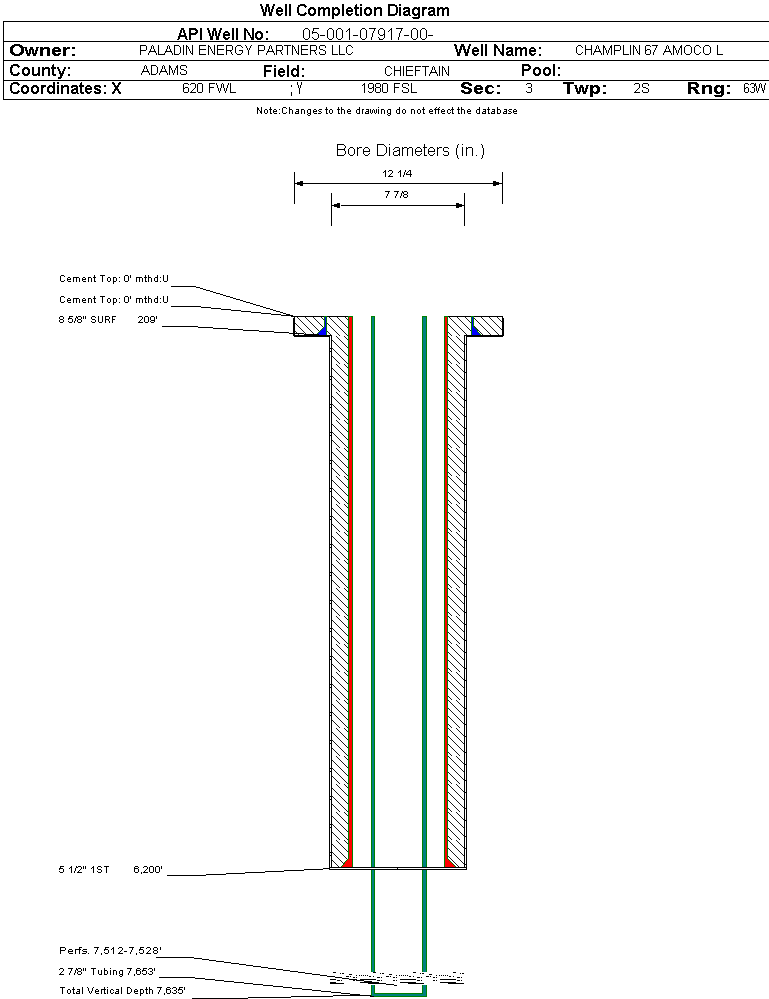

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 209 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6200 ft., Weight: 7.875 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE1094 ft.
SUSSEX4545 ft.
SHANNON4993 ft.
NIOBRARA6661 ft.
CODELL7077 ft.
BENTONITE7321 ft.
D SAND7416 ft.
J SAND7489 ft.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 12/1/2018                 Interval Top: 7512 ft.    Interval Bottom: 7528 ft.

 Completed Information for Formation J SAND
1st Production Date:2/26/1982Choke Size:1.000 in.
Formation Name:J SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/6/1981
Treatment Summary:SEE SCANNED DOCUMENT #00369220
Tubing Size:2.875 in.Tubing Setting Depth:7653 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/6/1982Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 30
BBLS_OIL 76
CALC_BBLS_H2O 30
CALC_BBLS_OIL 76
CALC_GOR 5260
CALC_MCF_GAS 400
GRAVITY_OIL 44
MCF_GAS 400
Perforation Data:
Interval Top:7512 ft.# Of Holes:64
Interval Bottom:7528 ft.Hole Size:
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
05/13/2024
Defined Inactive (SI )YDefined Inactive
10/31/2018
Low ProducingYProduction Period
12/2024 - 11/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
