COGIS - WELL SCOUT CARD

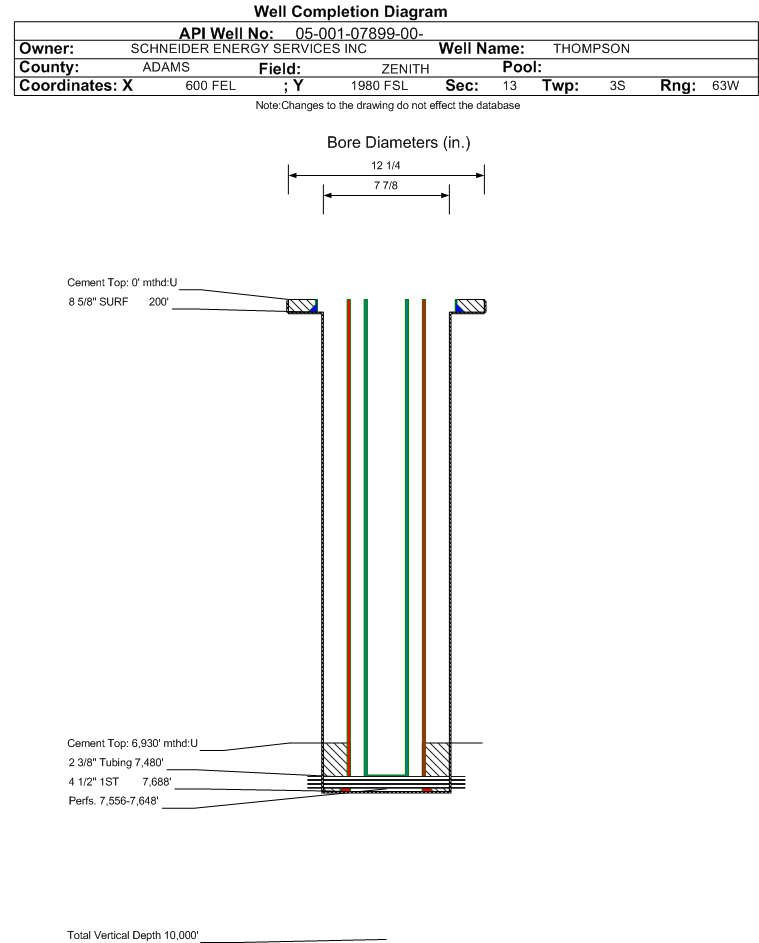

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-07899		Well Classification: OW Status: PA - 2/21/2019
Well Name/No:THOMPSON #43-13
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:SCHNEIDER ENERGY SERVICES INC - 76840
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/21/2019
FacilityID:202494LocationID:320070
County:ADAMS #001Location:NESE 13 3S63W 6
Field:ZENITH - #98940Elevation:5449 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  600 FELLat/Long: 39.787144 / -104.378864Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.787107 / -104.378900Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 2/21/2019             Measured TD: 7690 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 2/21/2019
Wellbore Permit
Permit #:19811092 Expiration Date:10/24/1981
Proposed Depth/Form:7680 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Wellbore Completed
Completion Date:9/30/1981
Spud Date:8/1/1981Spud Date Is:ACTUAL
Measured TD:7690 ft.Measured PB depth:7688 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IEL, CDL-GAMMA, DIPMETER
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 200 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 200 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7688 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 6930 ft., Bottom: 7688 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FOX HILLS1192 ft.NN
FOX HILLS BASE1332 ft.NN
SUSSEX4588 ft.NN
NIOBRARA6698 ft.NN
FORT HAYS7085 ft.NN
CARLILE7114 ft.NN
GREENHORN7188 ft.NN
BENTONITE7400 ft.NN
D SAND7491 ft.NN
HUNTSMAN7499 ft.NN
J SAND7553 ft.NN
SKULL CREEK7669 ft.NN

Formation JSND                     Formation Classification:  GW                     Status:  AB - 2/21/2019                 Interval Top: 7556 ft.    Interval Bottom: 7648 ft.

 Completed Information for Formation J SAND
1st Production Date:2/10/1982Choke Size:
Formation Name:J SANDCommingled:No
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:9/30/1981
Treatment Summary:SEE SCANNED DOCUMENT # 00417368
Tubing Size:2.375 in.Tubing Setting Depth:7480 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/24/1982Test Method:PUMPING
Hours Tested:Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_OIL 35
MCF_GAS 200
Perforation Data:
Interval Top:7556 ft.# Of Holes:87
Interval Bottom:7648 ft.Hole Size:0.39 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/21/2019
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
