COGIS - WELL SCOUT CARD

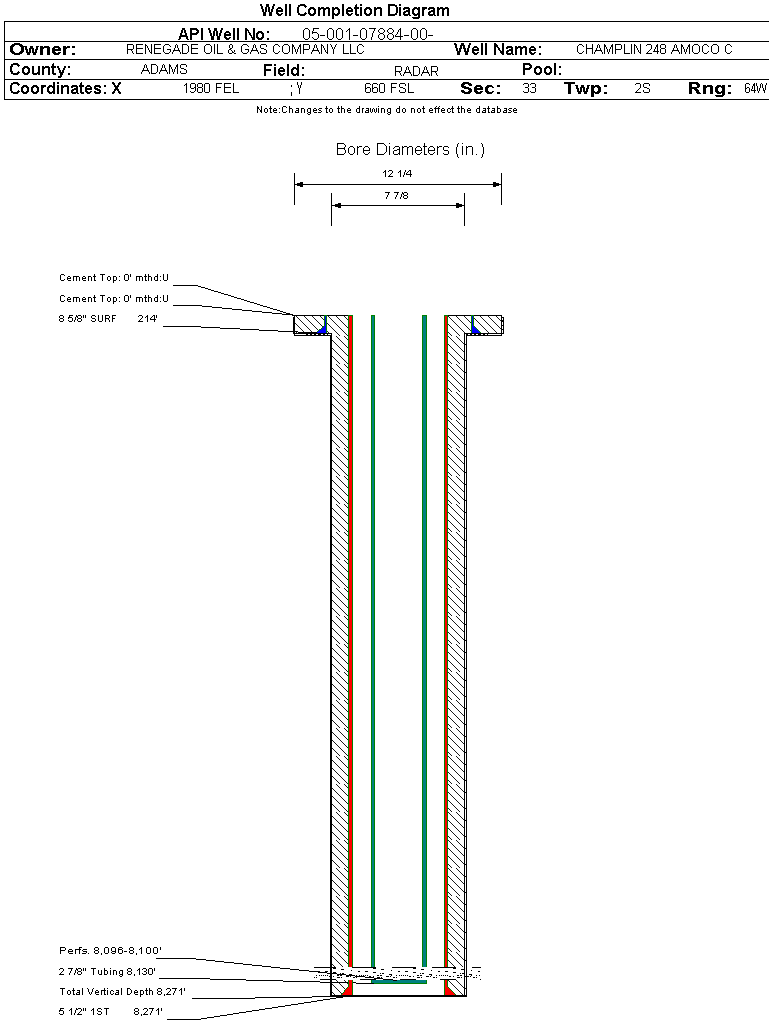

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-07884		Well Classification: GW Status: SI - 6/1/2018
Well Name/No:CHAMPLIN 248 AMOCO C #3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:RENEGADE OIL & GAS COMPANY LLC - 74165
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date6/1/2018
FacilityID:202479LocationID:320065
County:ADAMS #001Location:SWSE 33 2S64W 6
Field:RADAR - #71300Elevation:5430 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FSL  1980 FELLat/Long: 39.827582 / -104.552850Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.827770 / -104.552850Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: SI - 6/1/2018             Measured TD: 8271 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        SI - 6/1/2018
Wellbore Permit
Permit #:19810990 Expiration Date:2/6/1982
Proposed Depth/Form:8100 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:12/12/1981
Spud Date:10/10/1981Spud Date Is:ACTUAL
Measured TD:8271 ft.Measured PB depth:8210 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: SP-IES, FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 214 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 225, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8271 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA7270 ft.
MUDDY D7980 ft.
MUDDY J8030 ft.

Formation JSND                     Formation Classification:  GW                     Status:  SI - 6/1/2018                  Interval Top: 8096 ft.    Interval Bottom: 8100 ft.

 Completed Information for Formation J SAND
1st Production Date:12/12/1981Choke Size:1.000 in.
Formation Name:J SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:12/12/1981
Treatment Summary:SEE SCANNED DOCUMENT #00359983
Tubing Size:2.875 in.Tubing Setting Depth:8130 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/15/1981Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 55
BBLS_OIL 177
CALC_BBLS_H2O 55
CALC_BBLS_OIL 177
CALC_GOR 1412
CALC_MCF_GAS 250
GRAVITY_OIL 40.9
MCF_GAS 250
Perforation Data:
Interval Top:8096 ft.# Of Holes:16
Interval Bottom:8100 ft.Hole Size:0.41 in.
Primary Well Designation:
Noticed Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveYNoticed Date
02/12/2024
Defined Inactive (SI )YDefined Inactive
05/31/2018
Low ProducingYProduction Period
10/2024 - 09/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR DeterminationMCFE
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
