COGIS - WELL SCOUT CARD

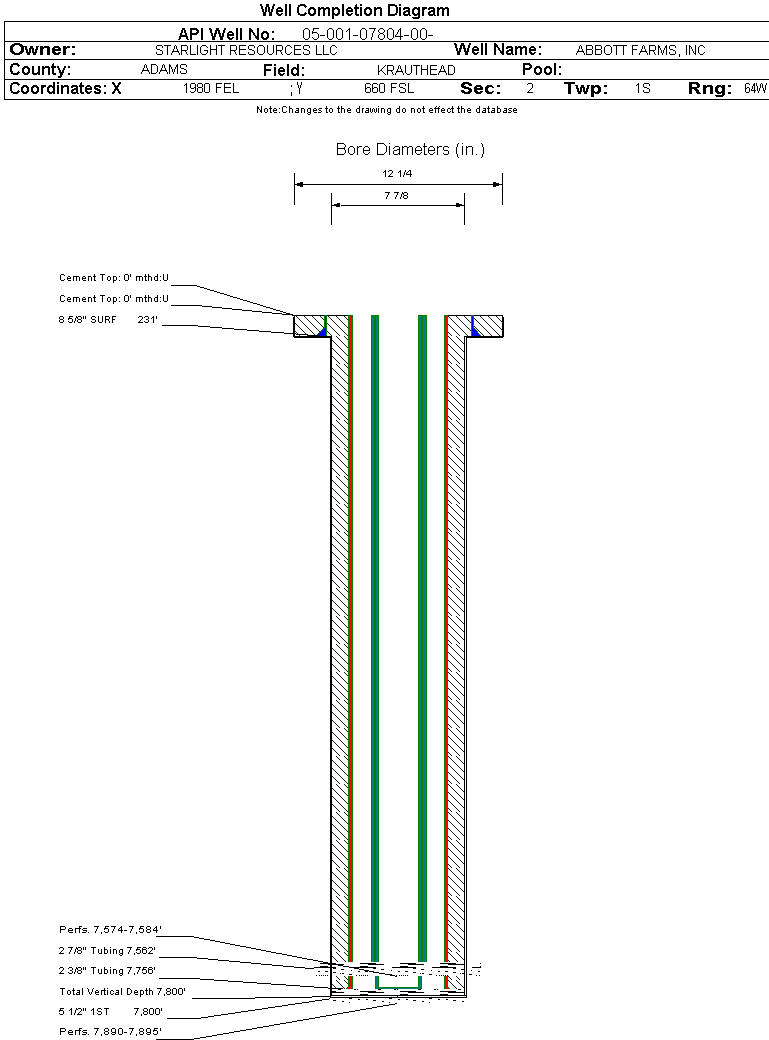

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-07804		Well Classification: GW Status: PR - 5/1/2025
Well Name/No:ABBOTT FARMS, INC #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:KP KAUFFMAN COMPANY INC - 46290
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date5/1/2025
FacilityID:202399LocationID:320050
County:ADAMS #001Location:SWSE 2 1S64W 6
Field:KRAUTHEAD - #47550Elevation:5102 ft.
Planned Location:660FSL  1980 FELLat/Long: 39.986771 / -104.515950Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.986814 / -104.515956Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 5/1/2025             Measured TD: 7800 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 5/1/2025
Wellbore Permit
Permit #:19810268 Expiration Date:6/20/1981
Proposed Depth/Form:7800 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 40, Drill Unit: SWSE
Wellbore Completed
Completion Date:6/18/1981
Spud Date:2/9/1981Spud Date Is:ACTUAL
Measured TD:7800 ft.Measured PB depth:7757 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: SP-IES, FDC-GR CALIPER LOG
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 231 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 7800 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE1070 ft.
FOX HILLS1070 ft.
SUSSEX4450 ft.
SHANNON4760 ft.
NIOBRARA6760 ft.
CODELL7304 ft.
BENTONITE7480 ft.
D SAND7572 ft.
J SAND7638 ft.

Formation JSND                     Formation Classification:  OW                     Status:  PR - 5/1/2025                  Interval Top: 7890 ft.    Interval Bottom: 7895 ft.

 Completed Information for Formation J SAND
1st Production Date:7/15/1989Choke Size:
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:6/18/1981
Treatment Summary:SEE SCANNED DOCUMENT #00319086
Tubing Size:2.875 in.Tubing Setting Depth:7562 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/20/1989Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 3
CALC_BBLS_OIL 3
CALC_MCF_GAS 80
CASING_PRESS 145
MCF_GAS 80
TUBING_PRESS 40
Perforation Data:
Interval Top:7890 ft.# Of Holes:20
Interval Bottom:7895 ft.Hole Size:

Formation DSND                     Formation Classification:  OW                     Status:  PR - 5/1/2025                  Interval Top: 7574 ft.    Interval Bottom: 7584 ft.

 Completed Information for Formation D SAND
1st Production Date:7/7/1981Choke Size:1.000 in.
Formation Name:D SANDCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:6/18/1981
Treatment Summary:SEE SCANNED DOCUMENT #00319087
Tubing Size:2.375 in.Tubing Setting Depth:7756 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/6/1981Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 1
BBLS_OIL 79
CALC_BBLS_H2O 1
CALC_BBLS_OIL 79
CALC_GOR 1560
CALC_MCF_GAS 123
GRAVITY_OIL 44.8
MCF_GAS 123
Perforation Data:
Interval Top:7574 ft.# Of Holes:40
Interval Bottom:7584 ft.Hole Size:0.41 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
05/2024 - 04/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)22
Total Gas Produced (MCF)662
GOR30090
GOR DeterminationMCFE
Average BOE per Day0.371
Average MCFE per Day2.155

 Federal Financial Assurance  i

 Tribal Well  i No
