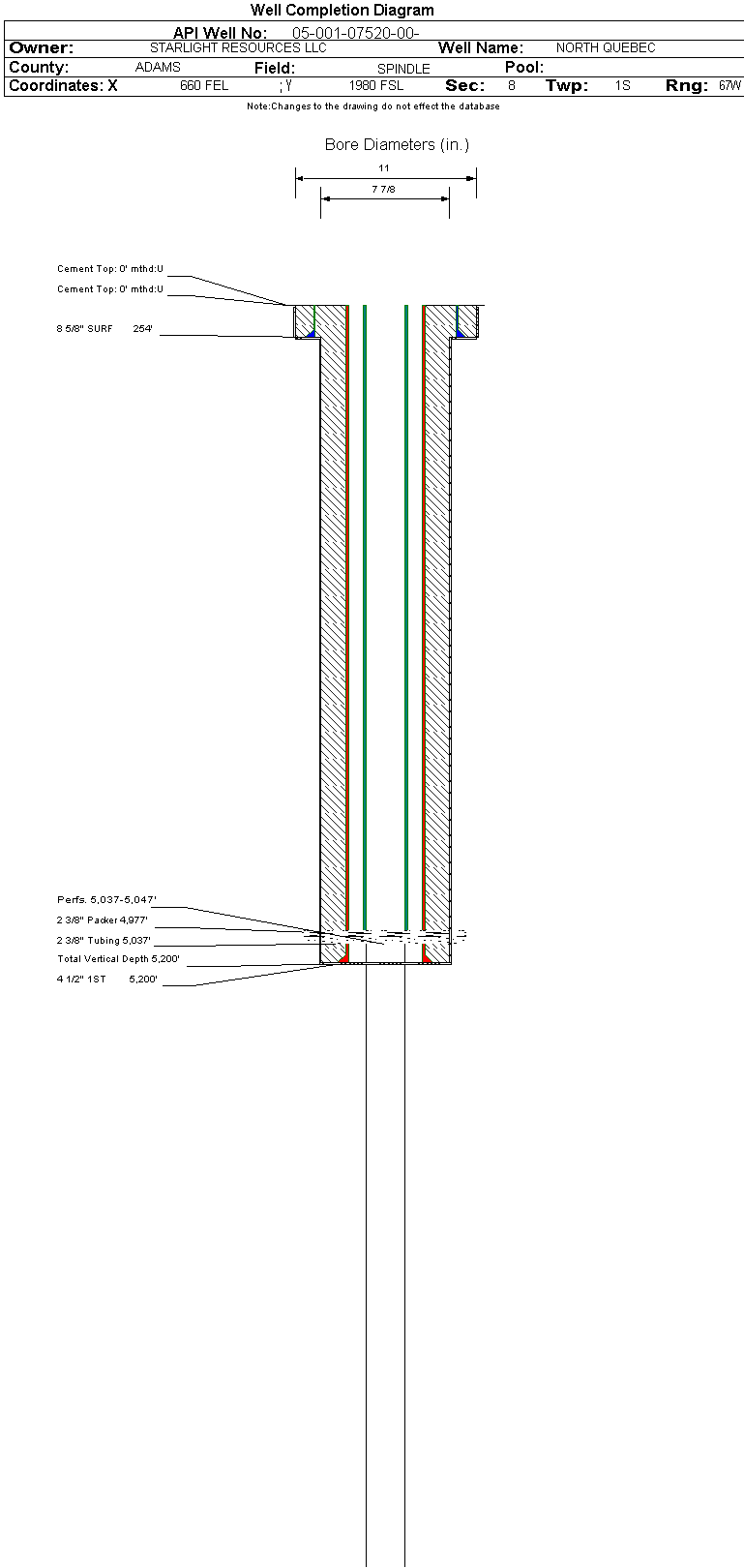

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-07520		Well Classification: OW Status: PA - 7/8/2005
Well Name/No:NORTH QUEBEC #4
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:STARLIGHT RESOURCES LLC - 81825
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/8/2005
FacilityID:202115LocationID:376264
Municipality/County:THORNTON / ADAMS #001Location:NESE 8 1S67W 6
Field:SPINDLE - #77900Elevation:5131 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  660 FELLat/Long: 39.977319 / -104.905632Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/8/2005             Measured TD: 5200 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/8/2005
Wellbore Permit
Permit #:19791170 Expiration Date:2/22/1980
Proposed Depth/Form:5300 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 40, Drill Unit: NESE
Wellbore Completed
Completion Date:5/1/1980
Spud Date:1/30/1980Spud Date Is:ACTUAL
Measured TD:5200 ft.Measured PB depth:5173 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IEU, DENSITY
Casing:String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 254 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5200 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX5037 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 7/8/2005                  Interval Top: 5037 ft.    Interval Bottom: 5047 ft.

 Completed Information for Formation SUSSEX
1st Production Date:5/1/1980Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/1/1980
Treatment Summary:100,000 GAL GELLED WATER; 200,000# 20/40 SAND
Tubing Size:2.375 in.Tubing Setting Depth:5037 ft.
Tubing Packer Depth:4997 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:5/1/1980Test Method:PUMPING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_OIL 63
CALC_GOR 1032
GRAVITY_OIL 40
MCF_GAS 65
Perforation Data:
Interval Top:5037 ft.# Of Holes:29
Interval Bottom:5047 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/08/2005
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
July 2024 - June 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
