COGIS - WELL SCOUT CARD

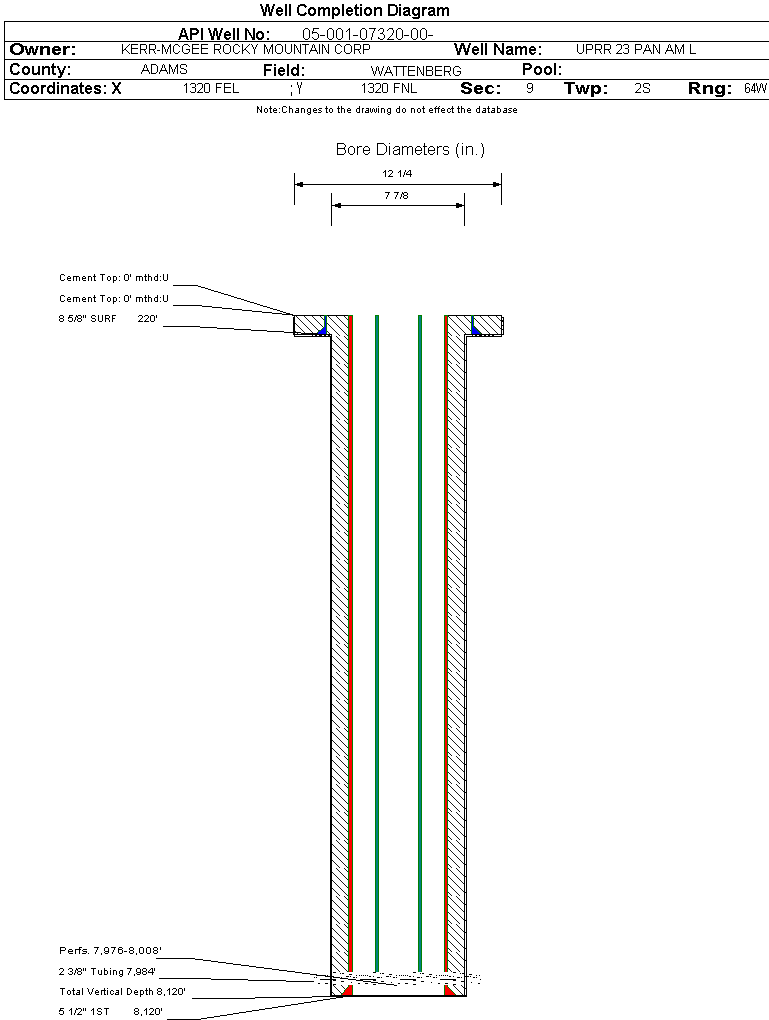

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-07320		Well Classification: GW Status: PA - 1/17/2025
Well Name/No:UPRR 23 PAN AM L #1 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PAINTED PEGASUS PETROLEUM LLC - 10711
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date1/17/2025
FacilityID:201916LocationID:319929
County:ADAMS #001Location:CNE 9 2S64W 6
Field:WATTENBERG - #90750Elevation:5365 ft.
Planned Location:1320FNL  1320 FELLat/Long: 39.894912 / -104.550561Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.895141 / -104.550336Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 1/17/2025             Measured TD: 8120 ft.    Vertical TD: 8120 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 1/17/2025
Wellbore Permit
Permit #:19780304 Expiration Date:4/14/1979
Proposed Depth/Form:8000 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:6/15/1978
Spud Date:4/18/1978Spud Date Is:ACTUAL
Measured TD:8120 ft.Measured PB depth:8031 ft.
True Vertical TD:8120 ft.True Vertical PB depth:
Log Types: SP-IES, FDC-GR CALIPER LOGS
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 220 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 220 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8120 ft., Weight: 15.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 7050 ft., Bottom: 8120 ft., Determination Method: CALC
FormationInterval TopLog BottomCoredDSTs
FOX HILLS BASE1480 ft.
NIOBRARA7170 ft.
MUDDY D7890 ft.
MUDDY J7976 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 1/17/2025                 Interval Top: 7976 ft.    Interval Bottom: 8008 ft.

 Completed Information for Formation J SAND
1st Production Date:6/15/1978Choke Size:0.406 in.
Formation Name:J SANDCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/15/1978
Treatment Summary:REMOVE CIBP AND CM JSND-DSND.
Tubing Size:2.375 in.Tubing Setting Depth:7984 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/15/1978Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 4
CALC_BBLS_H2O 4
CALC_BBLS_OIL 4
CALC_GOR 150000
CALC_MCF_GAS 600
GRAVITY_OIL 53
MCF_GAS 600
Perforation Data:
Interval Top:7976 ft.# Of Holes:64
Interval Bottom:8008 ft.Hole Size:0.41 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY01/17/2025
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
March 2024 - February 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
