COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-07053		Well Classification: OW Status: PA - 11/29/2018
Well Name/No:AYLOR #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:EXTRACTION OIL & GAS INC - 10459
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/29/2018
FacilityID:201650LocationID:319865
Municipality/County:THORNTON / ADAMS #001Location:SWSE 20 1S67W 6
Field:SPINDLE - #77900Elevation:5221 ft.
Planned Location:660FSL  1980 FELLat/Long: 39.944839 / -104.910102Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.944799 / -104.910133Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/29/2018             Measured TD: 5291 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/29/2018
Wellbore PermitDRIFTED
Permit #:19750567 Expiration Date:11/2/1975
Proposed Depth/Form:5300 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 40, Drill Unit: SWSE
Wellbore Completed
Completion Date:11/17/1975
Spud Date:7/12/1975Spud Date Is:ACTUAL
Measured TD:5291 ft.Measured PB depth:5260 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IEL, CDL

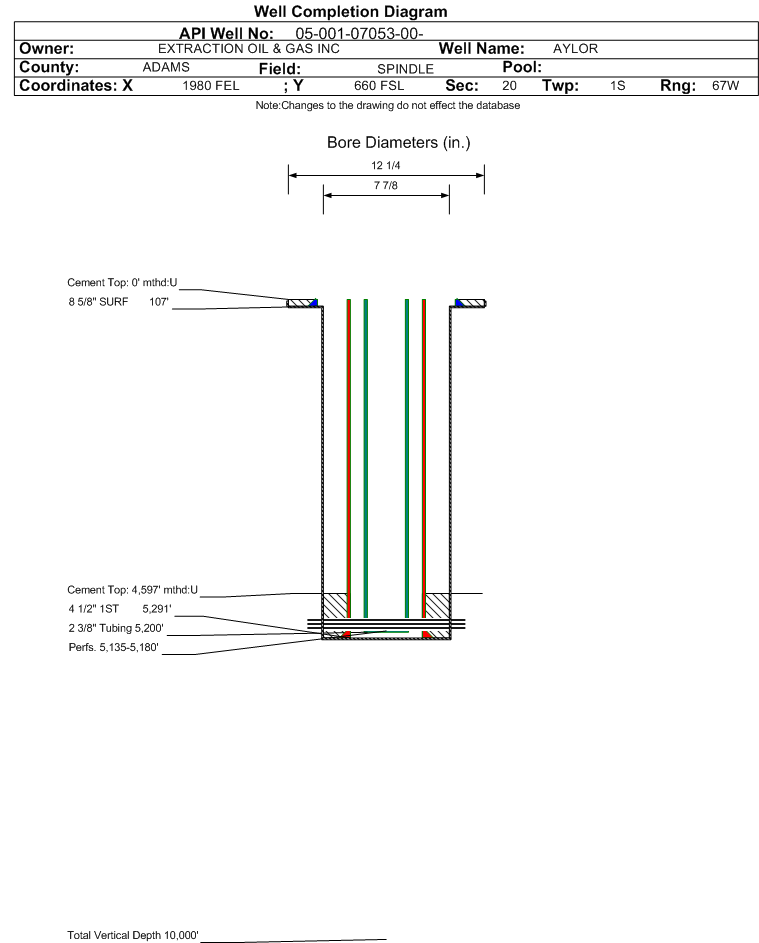

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 107 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 100, Top: 0 ft., Bottom: 107 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5291 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 4597 ft., Bottom: 5291 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1173 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: 1180 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
SUSSEX5116 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 11/29/2018                Interval Top: 5135 ft.    Interval Bottom: 5180 ft.

 Completed Information for Formation SUSSEX
1st Production Date:1/15/1976Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/17/1975
Treatment Summary:SUPER K-1 FRAC; 40,000# 20/40 SAND, 80,000# 10/20 SAND; 1051 BBLS OIL; 549 BBLS WATER
Tubing Size:2.375 in.Tubing Setting Depth:5200 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:5135 ft.# Of Holes:
Interval Bottom:5180 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/29/2018
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
May 2024 - April 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
