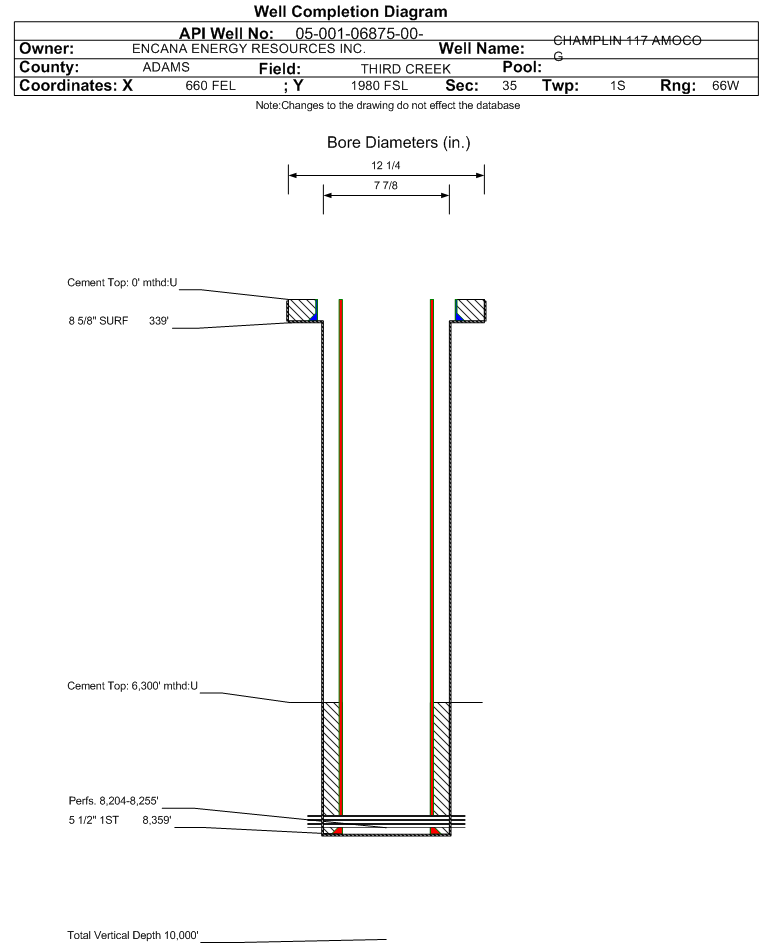

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-06875		Well Classification: OW Status: PA - 7/12/2004
Well Name/No:CHAMPLIN 117 AMOCO G #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ENCANA ENERGY RESOURCES INC - 100160
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date7/12/2004
FacilityID:201472LocationID:375814
County:ADAMS #001Location:NESE 35 1S66W 6
Field:THIRD CREEK - #81800Elevation:5203 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FSL  660 FELLat/Long: 39.919660 / -104.735937Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 7/12/2004             Measured TD: 8360 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 7/12/2004
Wellbore Permit
Permit #:19740588 Expiration Date:7/22/1975
Proposed Depth/Form:8350 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 80, Drill Unit: NESE
Wellbore Completed
Completion Date:8/27/1974
Spud Date:7/17/1974Spud Date Is:ACTUAL
Measured TD:8360 ft.Measured PB depth:8290 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types:SP-IES & FDC-GR-CALIPER LOGS
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 339 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 0 ft., Bottom: 339 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8359 ft., Weight: 14 , Citings Type: ACTUAL
Cement:Sacks: 300, Top: 6300 ft., Bottom: 8359 ft., Determination Method: CALC
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1440 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 1050 ft., Bottom: 1440 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
MUDDY J8202 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 7/12/2004                 Interval Top: 8204 ft.    Interval Bottom: 8255 ft.

 Completed Information for Formation J SAND
1st Production Date:8/22/1974Choke Size:0.563 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:8/27/1974
Treatment Summary:SEE DOCUMENT # 234979
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/26/1974Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 28
BBLS_OIL 455
CALC_BBLS_OIL 455
MCF_GAS 687
Perforation Data:
Interval Top:8204 ft.# Of Holes:
Interval Bottom:8255 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY07/12/2004
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
