COGIS - WELL SCOUT CARD

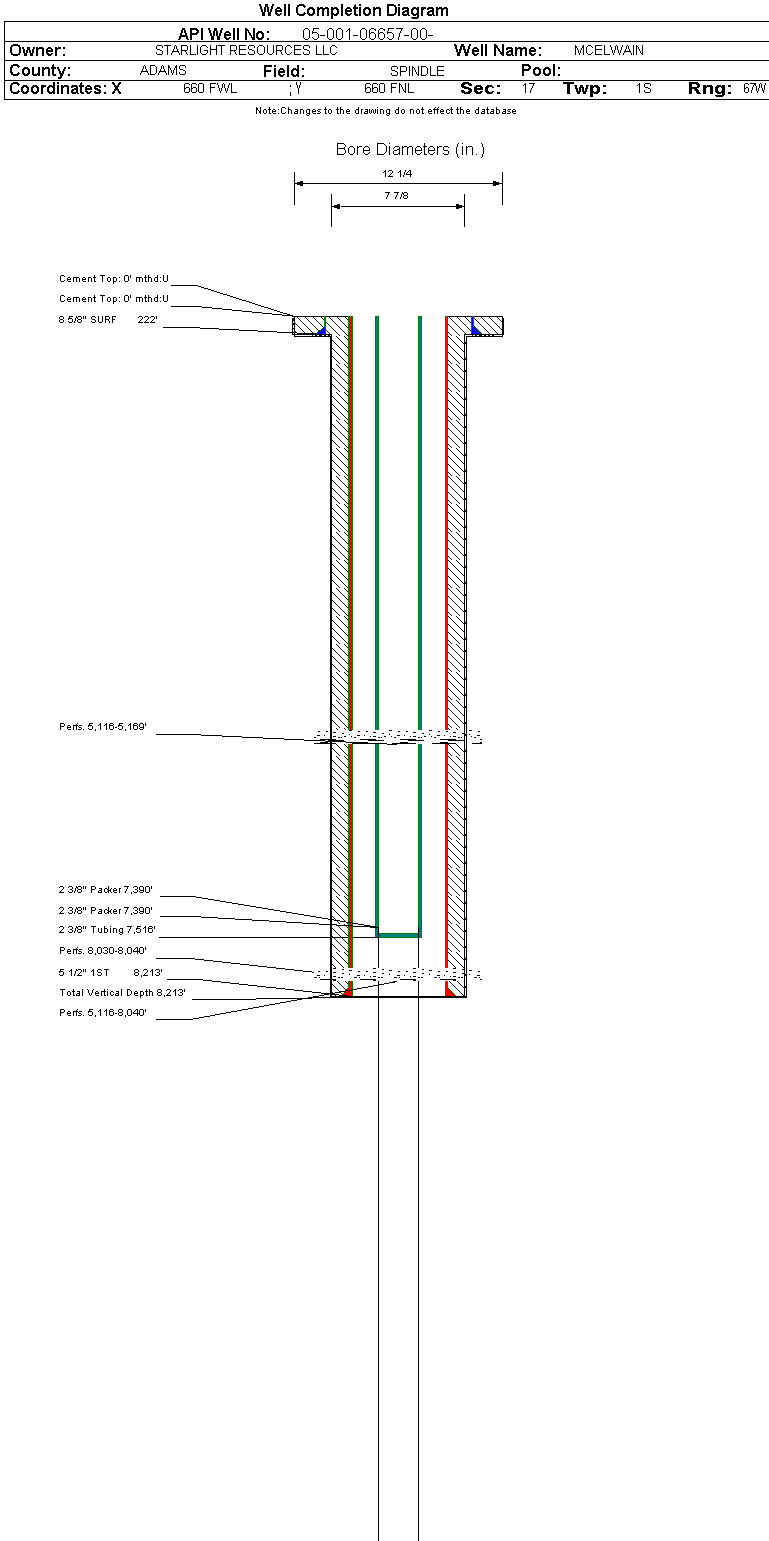

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-06657		Well Classification: OW Status: PA - 11/21/2001
Well Name/No:MCELWAIN #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:STARLIGHT RESOURCES LLC - 81825
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date11/21/2001
FacilityID:201254LocationID:375672
Municipality/County:THORNTON / ADAMS #001Location:NWNW 17 1S67W 6
Field:SPINDLE - #77900Elevation:5198 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  660 FWLLat/Long: 39.970069 / -104.919513Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/21/2001             Measured TD: 8213 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/21/2001
Wellbore Permit
Permit #:19730178 Expiration Date:7/21/1973
Proposed Depth/Form:8200 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: , Unit Acreage: 40, Drill Unit: NWNW
Wellbore Completed
Completion Date:7/16/1973
Spud Date:4/14/1973Spud Date Is:ACTUAL
Measured TD:8213 ft.Measured PB depth:8183 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES, DENSITY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 222 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8213 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 250, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
SUSSEX5082 ft.
NIOBRARA7572 ft.
TIMPAS8006 ft.
CODELL8030 ft.

Formation CODL                     Formation Classification:  GW                     Status:  AB - 11/21/2001                Interval Top: 8030 ft.    Interval Bottom: 8040 ft.

 Completed Information for Formation CODELL
1st Production Date:6/25/1973Choke Size:0.469 in.
Formation Name:CODELLCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:7/16/1973
Treatment Summary:64,000 GAL SUPER EMUL PLUS 90,000# SAND
Tubing Size:2.375 in.Tubing Setting Depth:7516 ft.
Tubing Packer Depth:7410 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation CODL.
Perforation Data:
Interval Top:8030 ft.# Of Holes:
Interval Bottom:8040 ft.Hole Size:

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 11/21/2001                Interval Top: 5116 ft.    Interval Bottom: 5169 ft.

 Completed Information for Formation SUSSEX
1st Production Date:7/16/1973Choke Size:
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:7/16/1973
Treatment Summary:7.5% ACID; 103,700 GAL SUPER EMULSIFIED FRAC FLUID; 200,000# SAND;
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation SUSX.
Perforation Data:
Interval Top:5116 ft.# Of Holes:11
Interval Bottom:5169 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY11/21/2001
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
