COGIS - WELL SCOUT CARD

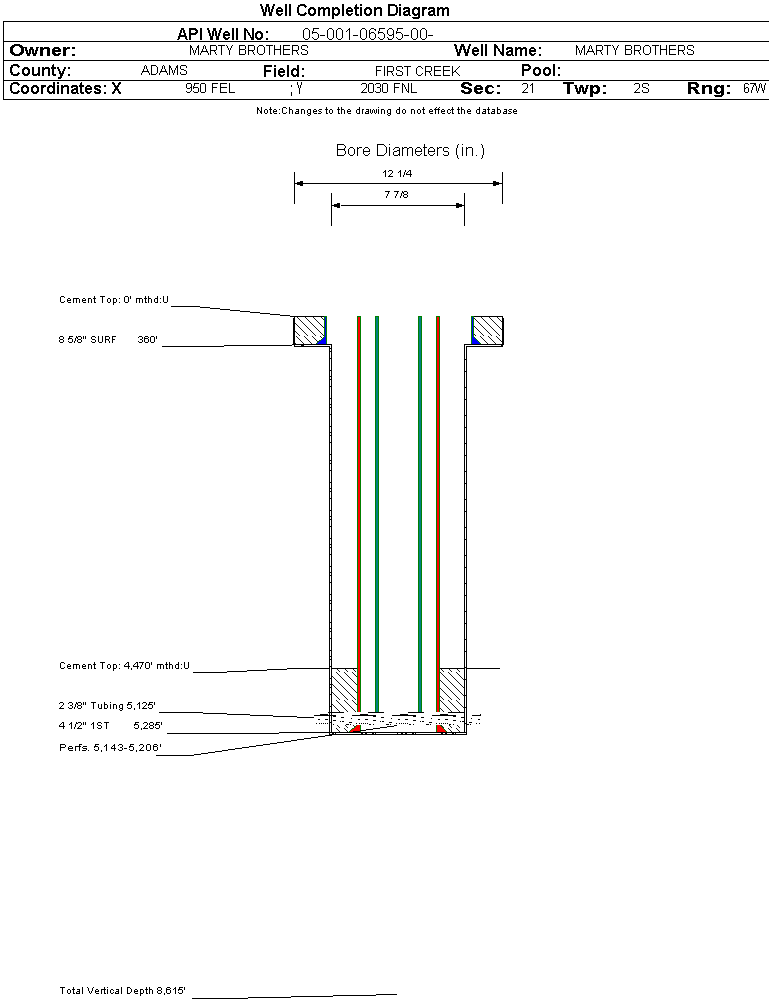

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-06595		Well Classification: OW Status: PA - 12/1/2006
Well Name/No:MARTY BROTHERS #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:MARTY BROTHERS - 54250
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date12/1/2006
FacilityID:201192LocationID:375633
Municipality/County:COMMERCE CITY / ADAMS #001Location:SENE 21 2S67W 6
Field:FIRST CREEK - #24000Elevation:5103 ft.
Basin:DENVER (DJ) BASIN
Planned Location:2030FNL  950 FELLat/Long: 39.865230 / -104.887801Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.865170 / -104.887640Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 11/2/2006             Measured TD: 8615 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 11/2/2006
Wellbore Permit
Permit #:19720868 Expiration Date:10/20/1973
Proposed Depth/Form:8700 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: SUSX , Formation: SUSSEX , Order: 0 , Unit Acreage: 80, Drill Unit: SENE
Wellbore Completed
Completion Date:11/20/1972
Spud Date:10/22/1972Spud Date Is:ACTUAL
Measured TD:8615 ft.Measured PB depth:5250 ft.
True Vertical TD:True Vertical PB depth:
Log Types:IES - FDC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 360 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 360 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5285 ft., Weight: 10.5 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 4470 ft., Bottom: 5285 ft., Determination Method:
Casing:String Type: STAGE TOOL, Hole Size: , Size: , Top: , Depth: 1570 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 995 ft., Bottom: 1570 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
FOX HILLS1130 ft.
SUSSEX5126 ft.
NIOBRARA7677 ft.
CARLILE8043 ft.
J SAND8465 ft.

Formation SUSX                     Formation Classification:  GW                     Status:  AB - 12/1/2006                 Interval Top: 5143 ft.    Interval Bottom: 5206 ft.

 Completed Information for Formation SUSSEX
1st Production Date:12/10/1972Choke Size:1.000 in.
Formation Name:SUSSEXCommingled:
Production Method:PUMPING
Open Hole Completion:
Formation Treatment
Treatment Date:11/20/1972
Treatment Summary:SEE DOCUMENT # 371511
Tubing Size:2.375 in.Tubing Setting Depth:5125 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/20/1972Test Method:PUMPING
Hours Tested:9Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 17
BBLS_OIL 100
CALC_BBLS_H2O 18
CALC_BBLS_OIL 277
CASING_PRESS 250
GRAVITY_OIL 38.4
Perforation Data:
Interval Top:5143 ft.# Of Holes:
Interval Bottom:5206 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY12/01/2006
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
