COGIS - WELL SCOUT CARD

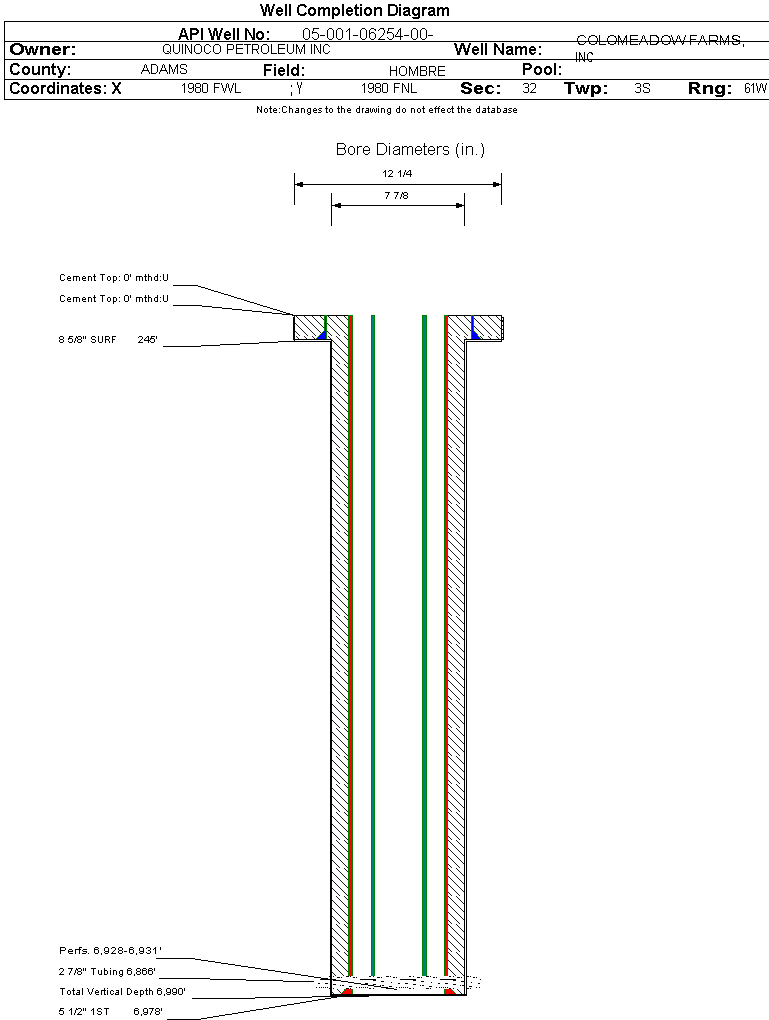

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-001-06254		Well Classification: OW Status: PA - 2/8/1990
Well Name/No:COLOMEADOW FARMS, INC #2
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QUINOCO PETROLEUM INC - 72910
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/8/1990
FacilityID:200851LocationID:375402
County:ADAMS #001Location:SENW 32 3S61W 6
Field:HOMBRE - #36700Elevation:5149 ft.
Basin:DENVER (DJ) BASIN
Planned Location:1980FNL  1980 FWLLat/Long: 39.747985 / -104.240020Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PA - 2/8/1990             Measured TD: 6990 ft.    Vertical TD: 6990 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PA - 2/8/1990
Wellbore Permit
Permit #:19710114 Expiration Date:2/23/1972
Proposed Depth/Form:6970 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: JSND , Formation: J SAND , Order: 0 , Unit Acreage: 80, Drill Unit: E2NW
Wellbore Completed
Completion Date:4/6/1971
Spud Date:2/23/1971Spud Date Is:ACTUAL
Measured TD:6990 ft.Measured PB depth:6941 ft.
True Vertical TD:6990 ft.True Vertical PB depth:
Log Types: IES, FDC, GR-CORRELATION
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 245 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 200, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6978 ft., Weight: 10.5x11.6, Citings Type: ACTUAL
Cement:Sacks: 350, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
J SAND6856 ft.

Formation JSND                     Formation Classification:  GW                     Status:  AB - 2/8/1990                  Interval Top: 6928 ft.    Interval Bottom: 6931 ft.

 Completed Information for Formation J SAND
1st Production Date:3/8/1971Choke Size:0.000 in.
Formation Name:J SANDCommingled:
Production Method:FLOWING
Open Hole Completion:
Formation Treatment
Treatment Date:4/6/1971
Treatment Summary:SEE SCANNED DOCUMENT #00402106
Tubing Size:2.875 in.Tubing Setting Depth:6866 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/6/1971Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 4
BBLS_OIL 181
CALC_BBLS_H2O 4
CALC_BBLS_OIL 181
CALC_MCF_GAS 61
MCF_GAS 61
Perforation Data:
Interval Top:6928 ft.# Of Holes:12
Interval Bottom:6931 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/08/1990
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
