 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-06209		Well Classification: DA Status: PA - 9/28/1970
Well Name/No:SAUTER #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:VESSELS* TOM - 93206
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date9/28/1970
FacilityID:200806LocationID:375367
County:ADAMS #001Location:NENE 8 1S63W 6
Field:WILDCAT - #99999Elevation:5015 ft.
Planned Location:660FNL  660 FELLat/Long: 39.982941 / -104.454948Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 9/28/1970             Measured TD: 7509 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 9/28/1970
Wellbore Permit
Permit #:19700479 Expiration Date:9/21/1971
Proposed Depth/Form:7600 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:9/28/1970
Spud Date:9/17/1970Spud Date Is:ACTUAL
Measured TD:7509 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:

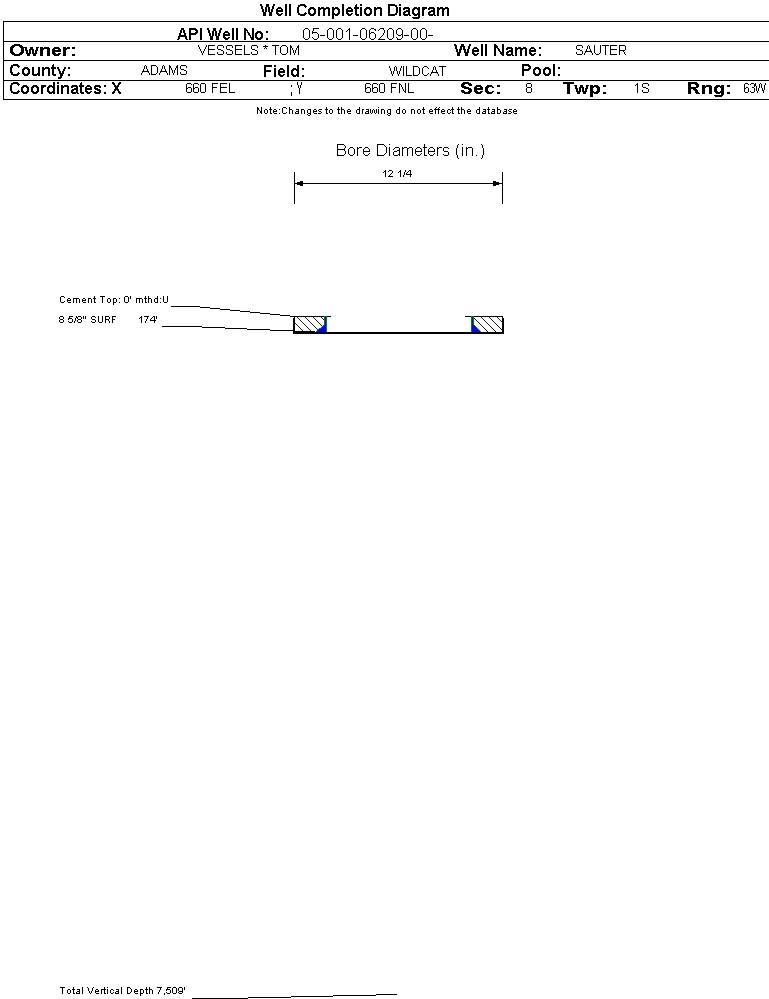

Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 174 ft., Weight: 28 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6545 ft.
TIMPAS6940 ft.
CARLILE6967 ft.
GREENHORN7042 ft.
BENTONITE7251 ft.
D SAND7348 ft.
J SAND7398 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY09/28/1970
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
June 2024 - May 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
