COGIS - WELL SCOUT CARD

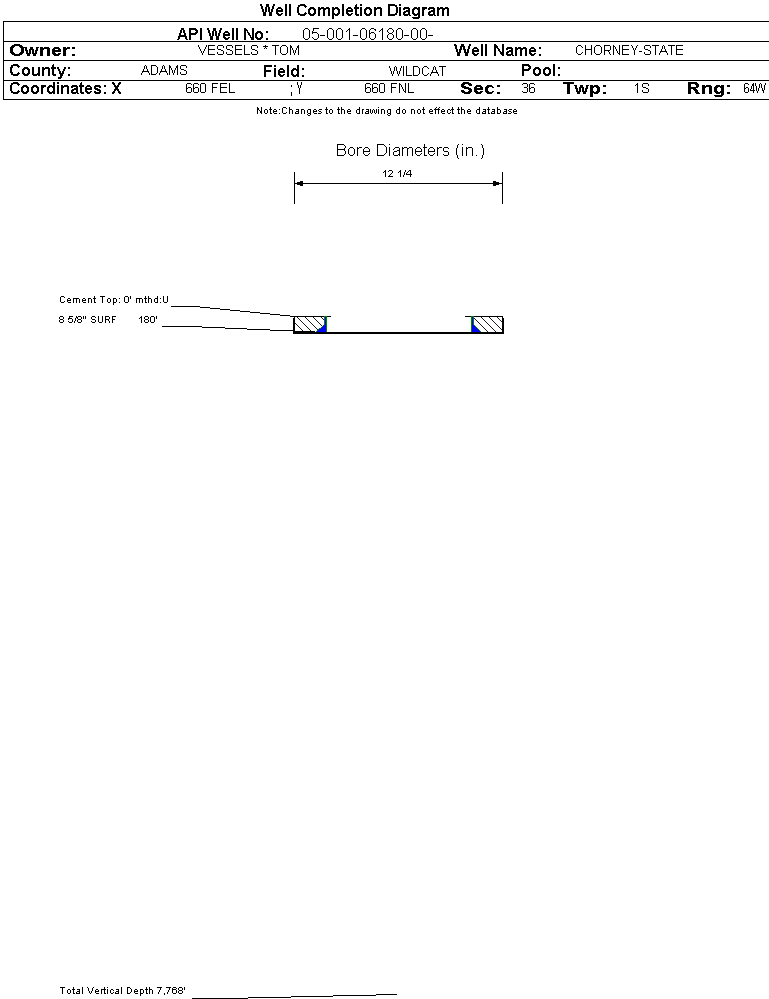

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-06180		Well Classification: DA Status: PA - 8/16/1970
Well Name/No:CHORNEY-STATE #1
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:VESSELS* TOM - 93206
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date8/16/1970
FacilityID:200777LocationID:375348
County:ADAMS #001Location:NENE 36 1S64W 6
Field:WILDCAT - #99999Elevation:5182 ft.
Basin:DENVER (DJ) BASIN
Planned Location:660FNL  660 FELLat/Long: 39.924741 / -104.491769Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 3/14/2001             Measured TD: 7768 ft.    Vertical TD: 0 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 3/14/2001
Wellbore Permit
Permit #:19700332 Expiration Date:7/24/1971
Proposed Depth/Form:7850 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:STATESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 80, Drill Unit: E2NE
Wellbore Completed
Completion Date:8/16/1970
Spud Date:7/24/1970Spud Date Is:ACTUAL
Measured TD:7768 ft.Measured PB depth:0 ft.
True Vertical TD:0 ft.True Vertical PB depth:
Log Types: IES, FDC/GR
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 180 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA6818 ft.
TIMPAS7200 ft.
CARLILE7238 ft.
GREENHORN7307 ft.
BENTONITE7509 ft.
D SAND7602 ft.
J SAND7654 ft.
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY08/16/1970
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
September 2024 - August 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
