COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-06170		Well Classification: OW Status: SI - 9/1/2021
Well Name/No:EHN #3-20 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PAINTED PEGASUS PETROLEUM LLC - 10711
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:2800
Facility Status:SIStatus Date9/1/2021
FacilityID:200767LocationID:319660
County:ADAMS #001Location:NENE 20 1S60W 6
Field:NILE - #57400Elevation:4830 ft.
Basin:DENVER (DJ) BASIN
Planned Location:600FNL  765 FELLat/Long: 39.955383 / -104.116077Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.955450 / -104.116060Lat/Long Source: Field Measured

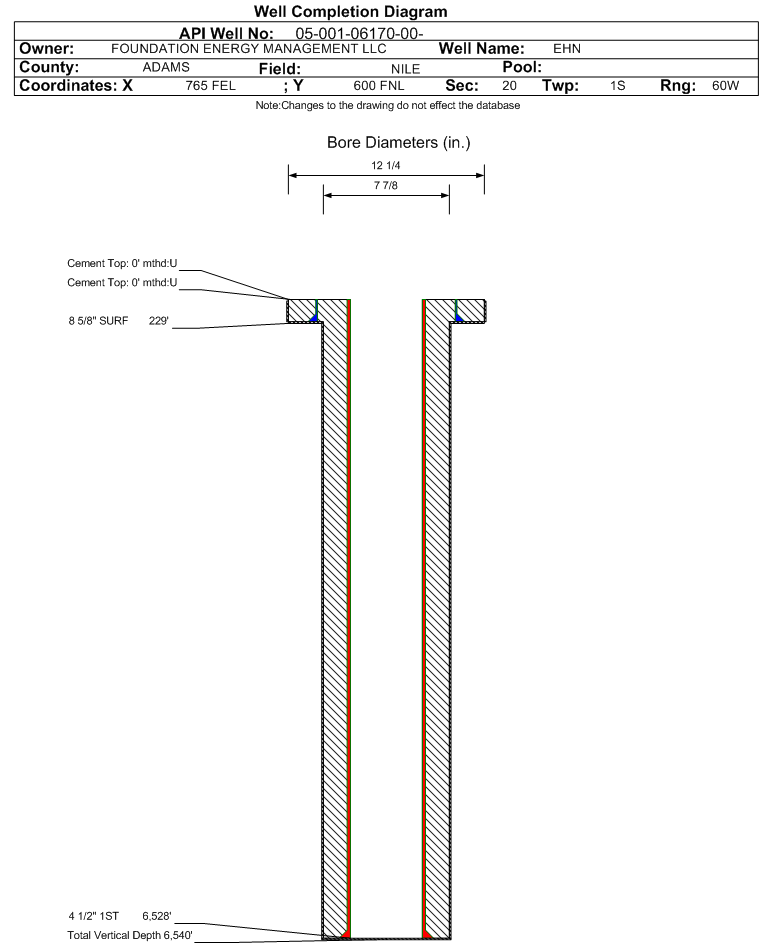

 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: SI - 9/1/2021             Measured TD: 6540 ft.    Vertical TD: 6540 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        SI - 9/1/2021
Wellbore Permit
Permit #:700287 Expiration Date:10/25/1970
Proposed Depth/Form:
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 0, Drill Unit:
Wellbore Completed
Completion Date:5/1/1990
Measured TD:6540 ft.Measured PB depth:6435 ft.
True Vertical TD:6540 ft.True Vertical PB depth:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 229 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6528 ft., Weight: , Citings Type: HISTORICAL
Cement:Sacks: 0, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5550 ft.
CARLILE5976 ft.
GREENHORN6030 ft.
BENTONITE6266 ft.
D SAND6363 ft.
J SAND6430 ft.

Formation DSND                     Formation Classification:  GW                     Status:  SI - 9/1/2021                  Interval Top: 6363 ft.

 Completed Information for Formation D SAND
1st Production Date:7/21/1970Choke Size:2,164.000 in.
Formation Name:D SANDCommingled:
Production Method:
Open Hole Completion:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DSND.
No Perforation Data was found for formation DSND.
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
08/31/2021
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
