COGIS - WELL SCOUT CARD

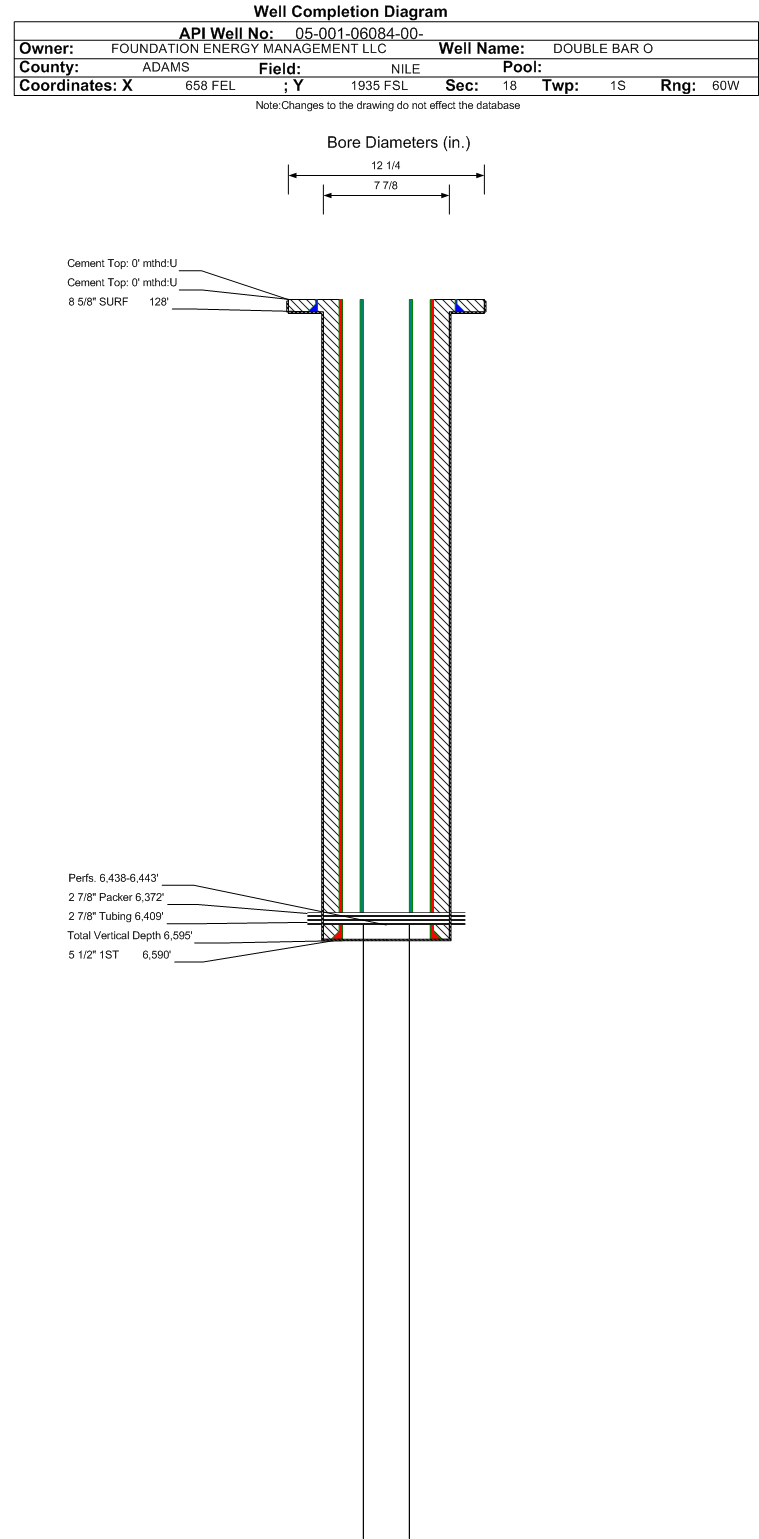

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 This operator is no longer active in the State of Colorado.
 Surface Location
 API# 05-001-06084		Well Classification: ERIW Status: SI - 9/1/2021
Well Name/No:DOUBLE BAR O #2-18 (OWP)
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:PAINTED PEGASUS PETROLEUM LLC - 10711
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:SIStatus Date9/1/2021
FacilityID:200681LocationID:319646
County:ADAMS #001Location:NESE 18 1S60W 6
Field:NILE - #57400Elevation:4828 ft.
Planned Location:1935FSL  658 FELLat/Long: 39.962283 / -104.134568Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.962210 / -104.134620Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DSPW             Status: SI - 9/1/2021             Measured TD: 6595 ft.    Vertical TD: 6595 ft.

 Wellbore Data for Original WellboreWellbore Classification: DSPW        SI - 9/1/2021
Wellbore Permit
Permit #:19690499 Expiration Date:8/20/1970
Proposed Depth/Form:6600 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:Not available
Unit: Unit Number:
Formation And Spacing:Code: DSND , Formation: D SAND , Order: 0 , Unit Acreage: 80, Drill Unit: S2SE
Wellbore Completed
Completion Date:4/9/1988
Spud Date:9/2/1969Spud Date Is:ACTUAL
Measured TD:6595 ft.Measured PB depth:6532 ft.
True Vertical TD:6595 ft.True Vertical PB depth:
Log Types: TEMPERATURE SURVEY
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 128 ft., Weight: 24 , Citings Type: ACTUAL
Cement:Sacks: 125, Top: 0 ft., Bottom: , Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 6590 ft., Weight: 14-15.5 , Citings Type: ACTUAL
Cement:Sacks: 150, Top: 0 ft., Bottom: , Determination Method:
FormationInterval TopLog BottomCoredDSTs
NIOBRARA5588 ft.
CARLILE6042 ft.
GREENHORN6100 ft.
BENTONITE6337 ft.
D SAND6436 ft.
J SAND6506 ft.

Formation DSND                     Formation Classification:  GW                     Status:  SI - 9/1/2021                  Interval Top: 6438 ft.    Interval Bottom: 6443 ft.

 Completed Information for Formation D SAND
1st Production Date:9/29/1969Choke Size:0.000 in.
Formation Name:D SANDCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:4/9/1988
Treatment Summary:ANNULUS FILLED WITH INHIBITED WATER.
Tubing Size:2.875 in.Tubing Setting Depth:6409 ft.
Tubing Packer Depth:6392 ft.Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation DSND.
Perforation Data:
Interval Top:6438 ft.# Of Holes:
Interval Bottom:6443 ft.Hole Size:
Primary Well Designation:
Defined Inactive      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined Inactive (SI )YDefined Inactive
08/31/2021
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2024 - January 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
