Schema COEnvEDD.xsd

schema location:	COEnvEDD.xsd
attribute form default:	unqualified
element form default:	qualified
targetNamespace:	http://www.rbdmsonline.org/xml/COEnvEDD.xsd

Elements	Complex types	Simple types
COEnvEDD	BatchQCDescriptionType	float-or-empty
	DetectionQuantitationLimitMeasureType	integer-or-empty
	OrganizationDescriptionType
	ProjectType
	ResultAnalyticalMethodType
	ResultBatchDescriptionType
	ResultDescriptionType
	ResultDetectionQuantitationLimitType
	ResultLabInformationType
	ResultMeasureType
	SamplingActivityDescriptionType

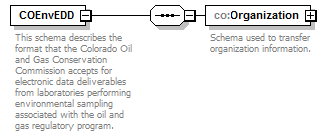

element COEnvEDD

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
properties	content  complex
children	co:Organization
annotation	documentation This schema describes the format that the Colorado Oil and Gas Conservation Commission accepts for electronic data deliverables from laboratories performing environmental sampling associated with the oil and gas regulatory program.
source	<xs:element name="COEnvEDD">   <xs:annotation>     <xs:documentation>This schema describes the format that the Colorado Oil and Gas Conservation Commission accepts for electronic data deliverables from laboratories performing environmental sampling associated with the oil and gas regulatory program.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Organization">         <xs:annotation>           <xs:documentation>Schema used to transfer organization information.</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:sequence>             <xs:element name="OrganizationDescription" type="co:OrganizationDescriptionType" minOccurs="0">               <xs:annotation>                 <xs:documentation>The particular word(s) regularly connected with a unique framework of authority within which a person or persons act, or are designated to act, towards some purpose. For the COEnvEDD, these selected data elements from the WQX schema describe information about the ReportBatch.</xs:documentation>               </xs:annotation>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

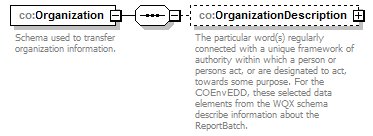

element COEnvEDD/Organization

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
properties	isRef  0 content  complex
children	co:OrganizationDescription
annotation	documentation Schema used to transfer organization information.
source	<xs:element name="Organization">   <xs:annotation>     <xs:documentation>Schema used to transfer organization information.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="OrganizationDescription" type="co:OrganizationDescriptionType" minOccurs="0">         <xs:annotation>           <xs:documentation>The particular word(s) regularly connected with a unique framework of authority within which a person or persons act, or are designated to act, towards some purpose. For the COEnvEDD, these selected data elements from the WQX schema describe information about the ReportBatch.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

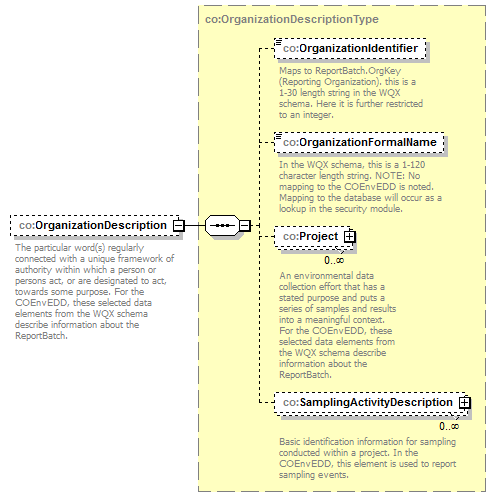

element COEnvEDD/Organization/OrganizationDescription

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:OrganizationDescriptionType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	co:OrganizationIdentifier co:OrganizationFormalName co:Project co:SamplingActivityDescription
annotation	documentation The particular word(s) regularly connected with a unique framework of authority within which a person or persons act, or are designated to act, towards some purpose. For the COEnvEDD, these selected data elements from the WQX schema describe information about the ReportBatch.
source	<xs:element name="OrganizationDescription" type="co:OrganizationDescriptionType" minOccurs="0">   <xs:annotation>     <xs:documentation>The particular word(s) regularly connected with a unique framework of authority within which a person or persons act, or are designated to act, towards some purpose. For the COEnvEDD, these selected data elements from the WQX schema describe information about the ReportBatch.</xs:documentation>   </xs:annotation> </xs:element>

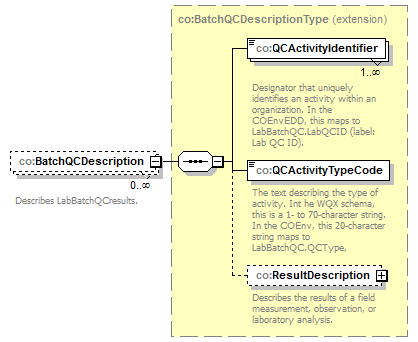

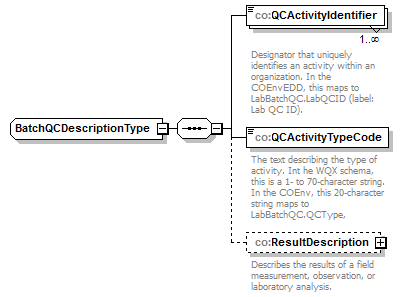

complexType BatchQCDescriptionType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:QCActivityIdentifier co:QCActivityTypeCode co:ResultDescription
used by	element  ResultBatchDescriptionType/BatchQCDescription
source	<xs:complexType name="BatchQCDescriptionType">   <xs:sequence>     <xs:element name="QCActivityIdentifier" type="xs:string" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Designator that uniquely identifies an activity within an organization. In the COEnvEDD, this maps to LabBatchQC.LabQCID (label: Lab QC ID). </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="QCActivityTypeCode">       <xs:annotation>         <xs:documentation>The text describing the type of activity. Int he WQX schema, this is a 1- to 70-character string. In the COEnv, this 20-character string maps to LabBatchQC.QCType, </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:minLength value="1"/>           <xs:maxLength value="20"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ResultDescription" type="co:ResultDescriptionType" minOccurs="0">       <xs:annotation>         <xs:documentation>Describes the results of a field measurement, observation, or laboratory analysis.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element BatchQCDescriptionType/QCActivityIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  1 maxOcc  unbounded content  simple
annotation	documentation Designator that uniquely identifies an activity within an organization. In the COEnvEDD, this maps to LabBatchQC.LabQCID (label: Lab QC ID).
source	<xs:element name="QCActivityIdentifier" type="xs:string" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Designator that uniquely identifies an activity within an organization. In the COEnvEDD, this maps to LabBatchQC.LabQCID (label: Lab QC ID). </xs:documentation>   </xs:annotation> </xs:element>

element BatchQCDescriptionType/QCActivityTypeCode

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  20
annotation	documentation The text describing the type of activity. Int he WQX schema, this is a 1- to 70-character string. In the COEnv, this 20-character string maps to LabBatchQC.QCType,
source	<xs:element name="QCActivityTypeCode">   <xs:annotation>     <xs:documentation>The text describing the type of activity. Int he WQX schema, this is a 1- to 70-character string. In the COEnv, this 20-character string maps to LabBatchQC.QCType, </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

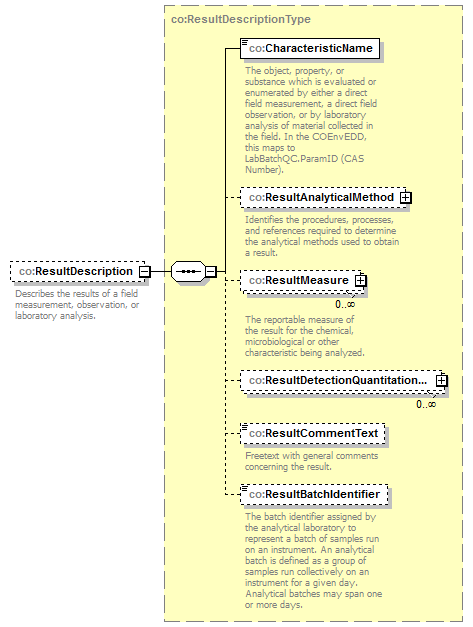

element BatchQCDescriptionType/ResultDescription

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:ResultDescriptionType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	co:CharacteristicName co:ResultAnalyticalMethod co:ResultMeasure co:ResultDetectionQuantitationLimit co:ResultCommentText co:ResultBatchIdentifier
annotation	documentation Describes the results of a field measurement, observation, or laboratory analysis.
source	<xs:element name="ResultDescription" type="co:ResultDescriptionType" minOccurs="0">   <xs:annotation>     <xs:documentation>Describes the results of a field measurement, observation, or laboratory analysis.</xs:documentation>   </xs:annotation> </xs:element>

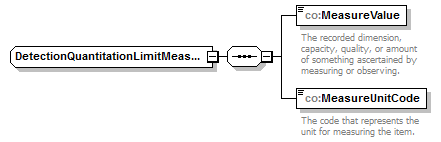

complexType DetectionQuantitationLimitMeasureType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:MeasureValue co:MeasureUnitCode
used by	element  ResultDetectionQuantitationLimitType/DetectionQuantitationLimitMeasure
source	<xs:complexType name="DetectionQuantitationLimitMeasureType">   <xs:sequence>     <xs:element name="MeasureValue" nillable="true">       <xs:annotation>         <xs:documentation>The recorded dimension, capacity, quality, or amount of something ascertained by measuring or observing.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="co:float-or-empty">           <!--<xs:maxLength value="12"/>-->         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="MeasureUnitCode" nillable="true">       <xs:annotation>         <xs:documentation>The code that represents the unit for measuring the item.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="12"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element DetectionQuantitationLimitMeasureType/MeasureValue

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of co:float-or-empty
properties	isRef  0 content  simple nillable  true
annotation	documentation The recorded dimension, capacity, quality, or amount of something ascertained by measuring or observing.
source	<xs:element name="MeasureValue" nillable="true">   <xs:annotation>     <xs:documentation>The recorded dimension, capacity, quality, or amount of something ascertained by measuring or observing.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="co:float-or-empty">       <!--<xs:maxLength value="12"/>-->     </xs:restriction>   </xs:simpleType> </xs:element>

element DetectionQuantitationLimitMeasureType/MeasureUnitCode

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 content  simple nillable  true
facets	Kind  Value  annotation  maxLength  12
annotation	documentation The code that represents the unit for measuring the item.
source	<xs:element name="MeasureUnitCode" nillable="true">   <xs:annotation>     <xs:documentation>The code that represents the unit for measuring the item.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="12"/>     </xs:restriction>   </xs:simpleType> </xs:element>

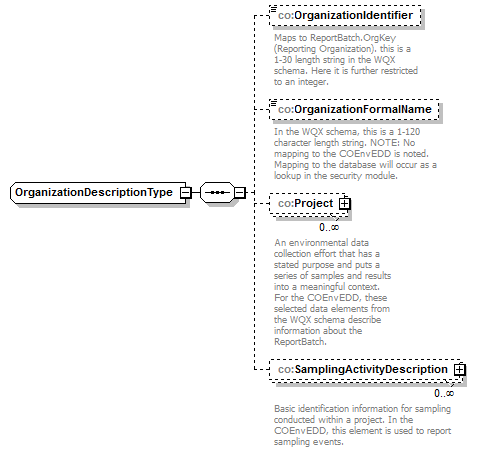

complexType OrganizationDescriptionType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:OrganizationIdentifier co:OrganizationFormalName co:Project co:SamplingActivityDescription
used by	element  COEnvEDD/Organization/OrganizationDescription
source	<xs:complexType name="OrganizationDescriptionType">   <xs:sequence>     <xs:element name="OrganizationIdentifier" type="xs:integer" minOccurs="0">       <xs:annotation>         <xs:documentation>Maps to ReportBatch.OrgKey (Reporting Organization). this is a 1-30 length string in the WQX schema. Here it is further restricted to an integer.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="OrganizationFormalName" minOccurs="0">       <xs:annotation>         <xs:documentation>In the WQX schema, this is a 1-120 character length string. NOTE: No mapping to the COEnvEDD is noted. Mapping to the database will occur as a lookup in the security module.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:minLength value="1"/>           <xs:maxLength value="120"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Project" type="co:ProjectType" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>An environmental data collection effort that has a stated purpose and puts a series of samples and results into a meaningful context. For the COEnvEDD, these selected data elements from the WQX schema describe information about the ReportBatch.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="SamplingActivityDescription" type="co:SamplingActivityDescriptionType" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Basic identification information for sampling conducted within a project. In the COEnvEDD, this element is used to report sampling events.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element OrganizationDescriptionType/OrganizationIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Maps to ReportBatch.OrgKey (Reporting Organization). this is a 1-30 length string in the WQX schema. Here it is further restricted to an integer.
source	<xs:element name="OrganizationIdentifier" type="xs:integer" minOccurs="0">   <xs:annotation>     <xs:documentation>Maps to ReportBatch.OrgKey (Reporting Organization). this is a 1-30 length string in the WQX schema. Here it is further restricted to an integer.</xs:documentation>   </xs:annotation> </xs:element>

element OrganizationDescriptionType/OrganizationFormalName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  1  maxLength  120
annotation	documentation In the WQX schema, this is a 1-120 character length string. NOTE: No mapping to the COEnvEDD is noted. Mapping to the database will occur as a lookup in the security module.
source	<xs:element name="OrganizationFormalName" minOccurs="0">   <xs:annotation>     <xs:documentation>In the WQX schema, this is a 1-120 character length string. NOTE: No mapping to the COEnvEDD is noted. Mapping to the database will occur as a lookup in the security module.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="1"/>       <xs:maxLength value="120"/>     </xs:restriction>   </xs:simpleType> </xs:element>

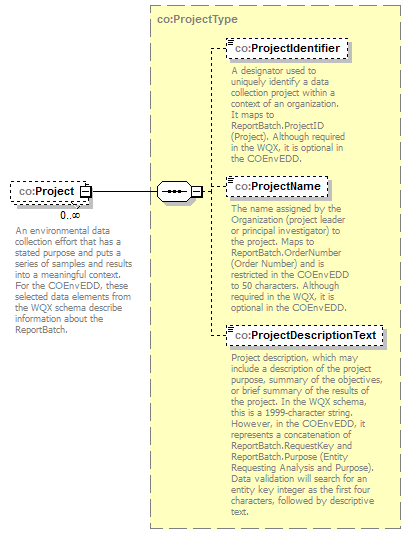

element OrganizationDescriptionType/Project

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:ProjectType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	co:ProjectIdentifier co:ProjectName co:ProjectDescriptionText
annotation	documentation An environmental data collection effort that has a stated purpose and puts a series of samples and results into a meaningful context. For the COEnvEDD, these selected data elements from the WQX schema describe information about the ReportBatch.
source	<xs:element name="Project" type="co:ProjectType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>An environmental data collection effort that has a stated purpose and puts a series of samples and results into a meaningful context. For the COEnvEDD, these selected data elements from the WQX schema describe information about the ReportBatch.</xs:documentation>   </xs:annotation> </xs:element>

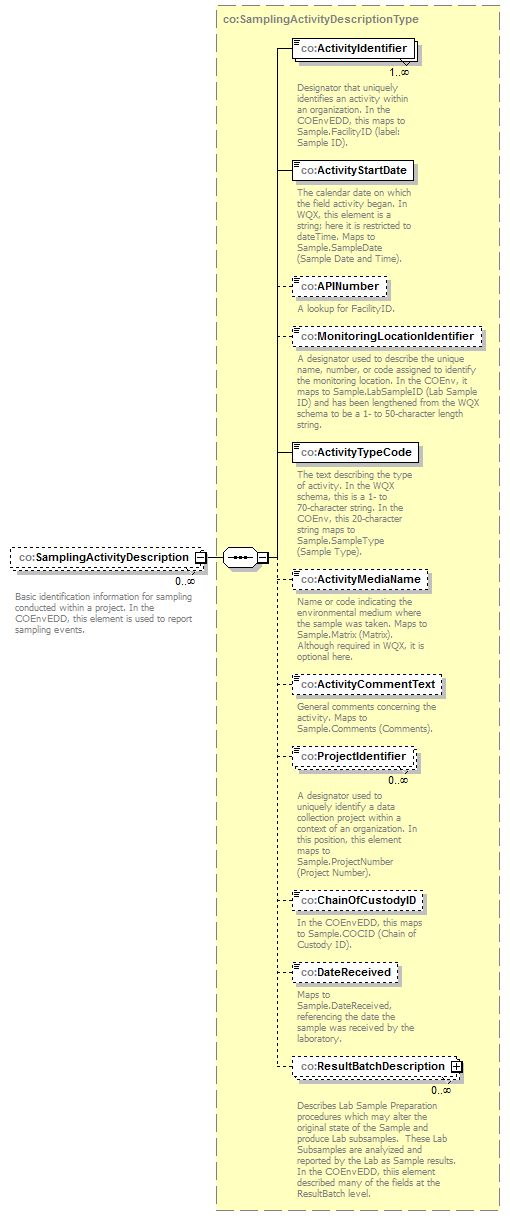

element OrganizationDescriptionType/SamplingActivityDescription

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:SamplingActivityDescriptionType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	co:ActivityIdentifier co:ActivityStartDate co:APINumber co:MonitoringLocationIdentifier co:ActivityTypeCode co:ActivityMediaName co:ActivityCommentText co:ProjectIdentifier co:ChainOfCustodyID co:DateReceived co:ResultBatchDescription
annotation	documentation Basic identification information for sampling conducted within a project. In the COEnvEDD, this element is used to report sampling events.
source	<xs:element name="SamplingActivityDescription" type="co:SamplingActivityDescriptionType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Basic identification information for sampling conducted within a project. In the COEnvEDD, this element is used to report sampling events.</xs:documentation>   </xs:annotation> </xs:element>

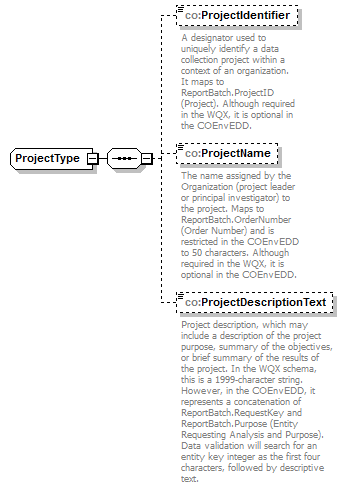

complexType ProjectType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:ProjectIdentifier co:ProjectName co:ProjectDescriptionText
used by	element  OrganizationDescriptionType/Project
source	<xs:complexType name="ProjectType">   <xs:sequence>     <xs:element name="ProjectIdentifier" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>A designator used to uniquely identify a data collection project within a context of an organization.  It maps to ReportBatch.ProjectID (Project). Although required in the WQX, it is optional in the COEnvEDD.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ProjectName" minOccurs="0">       <xs:annotation>         <xs:documentation>The name assigned by the Organization (project leader or principal investigator) to the project. Maps to ReportBatch.OrderNumber (Order Number) and is restricted in the COEnvEDD to 50 characters. Although required in the WQX, it is optional in the COEnvEDD.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:minLength value="0"/>           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ProjectDescriptionText" minOccurs="0">       <xs:annotation>         <xs:documentation>Project description, which may include a description of the project purpose, summary of the objectives, or brief summary of the results of the project. In the WQX schema, this is a 1999-character string. However, in the COEnvEDD, it represents a concatenation of ReportBatch.RequestKey and ReportBatch.Purpose (Entity Requesting Analysis and Purpose). Data validation will search for an entity key integer as the first four characters, followed by descriptive text. </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="1999"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element ProjectType/ProjectIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation A designator used to uniquely identify a data collection project within a context of an organization.  It maps to ReportBatch.ProjectID (Project). Although required in the WQX, it is optional in the COEnvEDD.
source	<xs:element name="ProjectIdentifier" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>A designator used to uniquely identify a data collection project within a context of an organization.  It maps to ReportBatch.ProjectID (Project). Although required in the WQX, it is optional in the COEnvEDD.</xs:documentation>   </xs:annotation> </xs:element>

element ProjectType/ProjectName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  minLength  0  maxLength  50
annotation	documentation The name assigned by the Organization (project leader or principal investigator) to the project. Maps to ReportBatch.OrderNumber (Order Number) and is restricted in the COEnvEDD to 50 characters. Although required in the WQX, it is optional in the COEnvEDD.
source	<xs:element name="ProjectName" minOccurs="0">   <xs:annotation>     <xs:documentation>The name assigned by the Organization (project leader or principal investigator) to the project. Maps to ReportBatch.OrderNumber (Order Number) and is restricted in the COEnvEDD to 50 characters. Although required in the WQX, it is optional in the COEnvEDD.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="0"/>       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ProjectType/ProjectDescriptionText

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1999
annotation	documentation Project description, which may include a description of the project purpose, summary of the objectives, or brief summary of the results of the project. In the WQX schema, this is a 1999-character string. However, in the COEnvEDD, it represents a concatenation of ReportBatch.RequestKey and ReportBatch.Purpose (Entity Requesting Analysis and Purpose). Data validation will search for an entity key integer as the first four characters, followed by descriptive text.
source	<xs:element name="ProjectDescriptionText" minOccurs="0">   <xs:annotation>     <xs:documentation>Project description, which may include a description of the project purpose, summary of the objectives, or brief summary of the results of the project. In the WQX schema, this is a 1999-character string. However, in the COEnvEDD, it represents a concatenation of ReportBatch.RequestKey and ReportBatch.Purpose (Entity Requesting Analysis and Purpose). Data validation will search for an entity key integer as the first four characters, followed by descriptive text. </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="1999"/>     </xs:restriction>   </xs:simpleType> </xs:element>

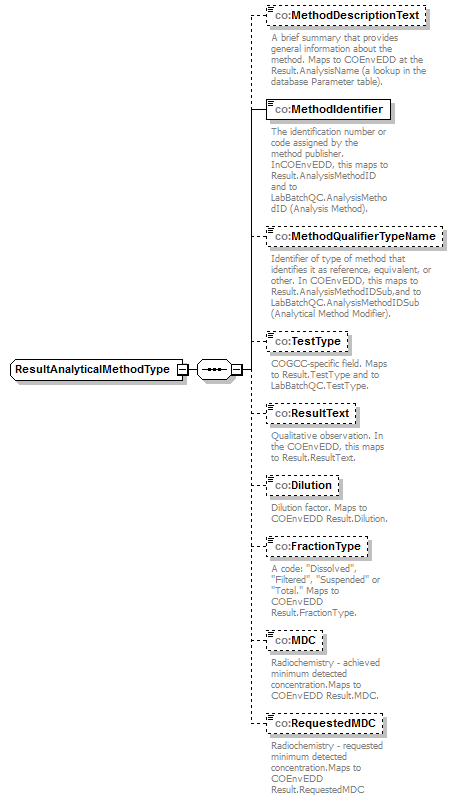

complexType ResultAnalyticalMethodType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:MethodDescriptionText co:MethodIdentifier co:MethodQualifierTypeName co:TestType co:ResultText co:Dilution co:FractionType co:MDC co:RequestedMDC
used by	element  ResultDescriptionType/ResultAnalyticalMethod
source	<xs:complexType name="ResultAnalyticalMethodType">   <xs:sequence>     <xs:element name="MethodDescriptionText" minOccurs="0">       <xs:annotation>         <xs:documentation>A brief summary that provides general information about the method. Maps to COEnvEDD at the Result.AnalysisName (a lookup in the database Parameter table). </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="500"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="MethodIdentifier" type="xs:string">       <xs:annotation>         <xs:documentation>The identification number or code assigned by the method publisher. InCOEnvEDD, this maps to Result.AnalysisMethodID and to LabBatchQC.AnalysisMethodID (Analysis Method).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MethodQualifierTypeName" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Identifier of type of method that identifies it as reference, equivalent, or other. In COEnvEDD, this maps to Result.AnalysisMethodIDSub,and to LabBatchQC.AnalysisMethodIDSub (Analytical Method Modifier).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TestType" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>COGCC-specific field. Maps to Result.TestType and to LabBatchQC.TestType.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ResultText" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>Qualitative observation. In the COEnvEDD, this maps to Result.ResultText.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Dilution" type="co:float-or-empty" minOccurs="0">       <xs:annotation>         <xs:documentation>Dilution factor. Maps to COEnvEDD Result.Dilution. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FractionType" minOccurs="0">       <xs:annotation>         <xs:documentation>A code: "Dissolved", "Filtered", "Suspended" or "Total." Maps to COEnvEDD Result.FractionType.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="20"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="MDC" type="co:float-or-empty" minOccurs="0">       <xs:annotation>         <xs:documentation>Radiochemistry - achieved minimum detected concentration.Maps to COEnvEDD Result.MDC.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="RequestedMDC" type="co:float-or-empty" minOccurs="0">       <xs:annotation>         <xs:documentation>Radiochemistry - requested minimum detected concentration.Maps to COEnvEDD Result.RequestedMDC</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ResultAnalyticalMethodType/MethodDescriptionText

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  500
annotation	documentation A brief summary that provides general information about the method. Maps to COEnvEDD at the Result.AnalysisName (a lookup in the database Parameter table).
source	<xs:element name="MethodDescriptionText" minOccurs="0">   <xs:annotation>     <xs:documentation>A brief summary that provides general information about the method. Maps to COEnvEDD at the Result.AnalysisName (a lookup in the database Parameter table). </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="500"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultAnalyticalMethodType/MethodIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 content  simple
annotation	documentation The identification number or code assigned by the method publisher. InCOEnvEDD, this maps to Result.AnalysisMethodID and to LabBatchQC.AnalysisMethodID (Analysis Method).
source	<xs:element name="MethodIdentifier" type="xs:string">   <xs:annotation>     <xs:documentation>The identification number or code assigned by the method publisher. InCOEnvEDD, this maps to Result.AnalysisMethodID and to LabBatchQC.AnalysisMethodID (Analysis Method).</xs:documentation>   </xs:annotation> </xs:element>

element ResultAnalyticalMethodType/MethodQualifierTypeName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Identifier of type of method that identifies it as reference, equivalent, or other. In COEnvEDD, this maps to Result.AnalysisMethodIDSub,and to LabBatchQC.AnalysisMethodIDSub (Analytical Method Modifier).
source	<xs:element name="MethodQualifierTypeName" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Identifier of type of method that identifies it as reference, equivalent, or other. In COEnvEDD, this maps to Result.AnalysisMethodIDSub,and to LabBatchQC.AnalysisMethodIDSub (Analytical Method Modifier).</xs:documentation>   </xs:annotation> </xs:element>

element ResultAnalyticalMethodType/TestType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  annotation  maxLength  50
annotation	documentation COGCC-specific field. Maps to Result.TestType and to LabBatchQC.TestType.
source	<xs:element name="TestType" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>COGCC-specific field. Maps to Result.TestType and to LabBatchQC.TestType.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultAnalyticalMethodType/ResultText

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  annotation  maxLength  50
annotation	documentation Qualitative observation. In the COEnvEDD, this maps to Result.ResultText.
source	<xs:element name="ResultText" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>Qualitative observation. In the COEnvEDD, this maps to Result.ResultText.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultAnalyticalMethodType/Dilution

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:float-or-empty
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Dilution factor. Maps to COEnvEDD Result.Dilution.
source	<xs:element name="Dilution" type="co:float-or-empty" minOccurs="0">   <xs:annotation>     <xs:documentation>Dilution factor. Maps to COEnvEDD Result.Dilution. </xs:documentation>   </xs:annotation> </xs:element>

element ResultAnalyticalMethodType/FractionType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation A code: "Dissolved", "Filtered", "Suspended" or "Total." Maps to COEnvEDD Result.FractionType.
source	<xs:element name="FractionType" minOccurs="0">   <xs:annotation>     <xs:documentation>A code: "Dissolved", "Filtered", "Suspended" or "Total." Maps to COEnvEDD Result.FractionType.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultAnalyticalMethodType/MDC

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:float-or-empty
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Radiochemistry - achieved minimum detected concentration.Maps to COEnvEDD Result.MDC.
source	<xs:element name="MDC" type="co:float-or-empty" minOccurs="0">   <xs:annotation>     <xs:documentation>Radiochemistry - achieved minimum detected concentration.Maps to COEnvEDD Result.MDC.</xs:documentation>   </xs:annotation> </xs:element>

element ResultAnalyticalMethodType/RequestedMDC

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:float-or-empty
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Radiochemistry - requested minimum detected concentration.Maps to COEnvEDD Result.RequestedMDC
source	<xs:element name="RequestedMDC" type="co:float-or-empty" minOccurs="0">   <xs:annotation>     <xs:documentation>Radiochemistry - requested minimum detected concentration.Maps to COEnvEDD Result.RequestedMDC</xs:documentation>   </xs:annotation> </xs:element>

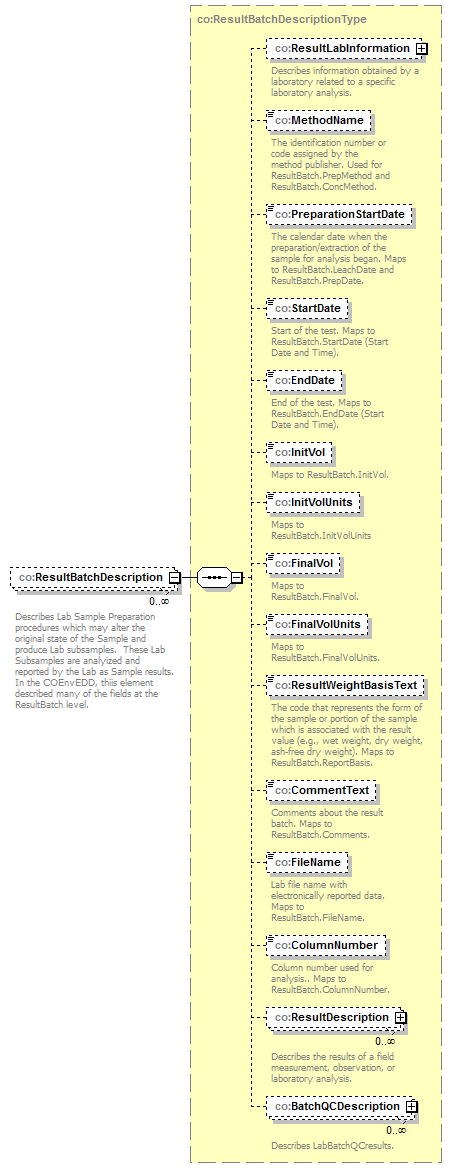

complexType ResultBatchDescriptionType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:ResultLabInformation co:MethodName co:PreparationStartDate co:StartDate co:EndDate co:InitVol co:InitVolUnits co:FinalVol co:FinalVolUnits co:ResultWeightBasisText co:CommentText co:FileName co:ColumnNumber co:ResultDescription co:BatchQCDescription
used by	element  SamplingActivityDescriptionType/ResultBatchDescription
source	<xs:complexType name="ResultBatchDescriptionType">   <xs:sequence>     <xs:element name="ResultLabInformation" type="co:ResultLabInformationType" minOccurs="0">       <xs:annotation>         <xs:documentation>Describes information obtained by a laboratory related to a specific laboratory analysis.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MethodName" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>The identification number or code assigned by the method publisher. Used for  ResultBatch.PrepMethod and ResultBatch.ConcMethod.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PreparationStartDate" type="xs:dateTime" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>The calendar date when the preparation/extraction of the sample for analysis began. Maps to ResultBatch.LeachDate and ResultBatch.PrepDate.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="StartDate" type="xs:dateTime" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>Start of the test. Maps to ResultBatch.StartDate (Start Date and Time).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="EndDate" type="xs:dateTime" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>End of the test. Maps to ResultBatch.EndDate (Start Date and Time).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="InitVol" type="co:float-or-empty" minOccurs="0">       <xs:annotation>         <xs:documentation>Maps to ResultBatch.InitVol.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="InitVolUnits" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>Maps to ResultBatch.InitVolUnits</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FinalVol" type="co:float-or-empty" minOccurs="0">       <xs:annotation>         <xs:documentation>Maps to ResultBatch.FinalVol.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="FinalVolUnits" minOccurs="0">       <xs:annotation>         <xs:documentation>Maps to ResultBatch.FinalVolUnits.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ResultWeightBasisText" minOccurs="0">       <xs:annotation>         <xs:documentation>The code that represents the form of the sample or portion of the sample which is associated with the result value (e.g., wet weight, dry weight, ash-free dry weight). Maps to ResultBatch.ReportBasis. </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="CommentText" minOccurs="0">       <xs:annotation>         <xs:documentation>Comments about the result batch. Maps to ResultBatch.Comments.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="1999"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="FileName" minOccurs="0">       <xs:annotation>         <xs:documentation>Lab file name with electronically reported data. Maps to ResultBatch.FileName.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="100"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ColumnNumber" minOccurs="0">       <xs:annotation>         <xs:documentation>Column number used for analysis.. Maps to ResultBatch.ColumnNumber.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ResultDescription" type="co:ResultDescriptionType" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Describes the results of a field measurement, observation, or laboratory analysis.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BatchQCDescription" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Describes LabBatchQCresults.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="co:BatchQCDescriptionType"/>         </xs:complexContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

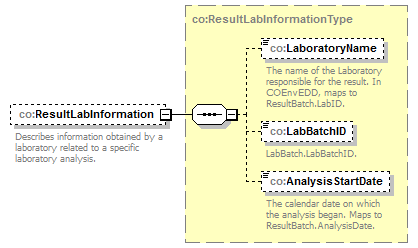

element ResultBatchDescriptionType/ResultLabInformation

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:ResultLabInformationType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	co:LaboratoryName co:LabBatchID co:AnalysisStartDate
annotation	documentation Describes information obtained by a laboratory related to a specific laboratory analysis.
source	<xs:element name="ResultLabInformation" type="co:ResultLabInformationType" minOccurs="0">   <xs:annotation>     <xs:documentation>Describes information obtained by a laboratory related to a specific laboratory analysis.</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/MethodName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The identification number or code assigned by the method publisher. Used for  ResultBatch.PrepMethod and ResultBatch.ConcMethod.
source	<xs:element name="MethodName" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>The identification number or code assigned by the method publisher. Used for  ResultBatch.PrepMethod and ResultBatch.ConcMethod.</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/PreparationStartDate

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The calendar date when the preparation/extraction of the sample for analysis began. Maps to ResultBatch.LeachDate and ResultBatch.PrepDate.
source	<xs:element name="PreparationStartDate" type="xs:dateTime" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>The calendar date when the preparation/extraction of the sample for analysis began. Maps to ResultBatch.LeachDate and ResultBatch.PrepDate.</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/StartDate

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Start of the test. Maps to ResultBatch.StartDate (Start Date and Time).
source	<xs:element name="StartDate" type="xs:dateTime" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>Start of the test. Maps to ResultBatch.StartDate (Start Date and Time).</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/EndDate

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation End of the test. Maps to ResultBatch.EndDate (Start Date and Time).
source	<xs:element name="EndDate" type="xs:dateTime" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>End of the test. Maps to ResultBatch.EndDate (Start Date and Time).</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/InitVol

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:float-or-empty
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Maps to ResultBatch.InitVol.
source	<xs:element name="InitVol" type="co:float-or-empty" minOccurs="0">   <xs:annotation>     <xs:documentation>Maps to ResultBatch.InitVol.</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/InitVolUnits

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Maps to ResultBatch.InitVolUnits
source	<xs:element name="InitVolUnits" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>Maps to ResultBatch.InitVolUnits</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/FinalVol

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:float-or-empty
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation Maps to ResultBatch.FinalVol.
source	<xs:element name="FinalVol" type="co:float-or-empty" minOccurs="0">   <xs:annotation>     <xs:documentation>Maps to ResultBatch.FinalVol.</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/FinalVolUnits

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
properties	isRef  0 minOcc  0 maxOcc  1
annotation	documentation Maps to ResultBatch.FinalVolUnits.
source	<xs:element name="FinalVolUnits" minOccurs="0">   <xs:annotation>     <xs:documentation>Maps to ResultBatch.FinalVolUnits.</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/ResultWeightBasisText

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  50
annotation	documentation The code that represents the form of the sample or portion of the sample which is associated with the result value (e.g., wet weight, dry weight, ash-free dry weight). Maps to ResultBatch.ReportBasis.
source	<xs:element name="ResultWeightBasisText" minOccurs="0">   <xs:annotation>     <xs:documentation>The code that represents the form of the sample or portion of the sample which is associated with the result value (e.g., wet weight, dry weight, ash-free dry weight). Maps to ResultBatch.ReportBasis. </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultBatchDescriptionType/CommentText

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  1999
annotation	documentation Comments about the result batch. Maps to ResultBatch.Comments.
source	<xs:element name="CommentText" minOccurs="0">   <xs:annotation>     <xs:documentation>Comments about the result batch. Maps to ResultBatch.Comments.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="1999"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultBatchDescriptionType/FileName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  100
annotation	documentation Lab file name with electronically reported data. Maps to ResultBatch.FileName.
source	<xs:element name="FileName" minOccurs="0">   <xs:annotation>     <xs:documentation>Lab file name with electronically reported data. Maps to ResultBatch.FileName.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="100"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultBatchDescriptionType/ColumnNumber

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  50
annotation	documentation Column number used for analysis.. Maps to ResultBatch.ColumnNumber.
source	<xs:element name="ColumnNumber" minOccurs="0">   <xs:annotation>     <xs:documentation>Column number used for analysis.. Maps to ResultBatch.ColumnNumber.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultBatchDescriptionType/ResultDescription

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:ResultDescriptionType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	co:CharacteristicName co:ResultAnalyticalMethod co:ResultMeasure co:ResultDetectionQuantitationLimit co:ResultCommentText co:ResultBatchIdentifier
annotation	documentation Describes the results of a field measurement, observation, or laboratory analysis.
source	<xs:element name="ResultDescription" type="co:ResultDescriptionType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Describes the results of a field measurement, observation, or laboratory analysis.</xs:documentation>   </xs:annotation> </xs:element>

element ResultBatchDescriptionType/BatchQCDescription

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	extension of co:BatchQCDescriptionType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	co:QCActivityIdentifier co:QCActivityTypeCode co:ResultDescription
annotation	documentation Describes LabBatchQCresults.
source	<xs:element name="BatchQCDescription" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Describes LabBatchQCresults.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="co:BatchQCDescriptionType"/>     </xs:complexContent>   </xs:complexType> </xs:element>

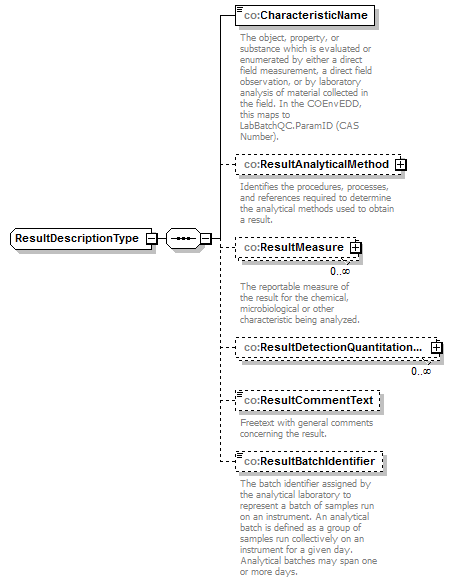

complexType ResultDescriptionType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:CharacteristicName co:ResultAnalyticalMethod co:ResultMeasure co:ResultDetectionQuantitationLimit co:ResultCommentText co:ResultBatchIdentifier
used by	elements  ResultBatchDescriptionType/ResultDescription BatchQCDescriptionType/ResultDescription
source	<xs:complexType name="ResultDescriptionType">   <xs:sequence>     <xs:element name="CharacteristicName" type="xs:string">       <xs:annotation>         <xs:documentation>The object, property, or substance which is evaluated or enumerated by either a direct field measurement, a direct field observation, or by laboratory analysis of material collected in the field. In the COEnvEDD, this maps to LabBatchQC.ParamID (CAS Number).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ResultAnalyticalMethod" minOccurs="0">       <xs:annotation>         <xs:documentation>Identifies the procedures, processes, and references required to determine the analytical methods used to obtain a result.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="co:ResultAnalyticalMethodType"/>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="ResultMeasure" type="co:ResultMeasureType" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>The reportable measure of the result for the chemical, microbiological or other characteristic being analyzed.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ResultDetectionQuantitationLimit" type="co:ResultDetectionQuantitationLimitType" minOccurs="0" maxOccurs="unbounded"/>     <xs:element name="ResultCommentText" minOccurs="0">       <xs:annotation>         <xs:documentation>Freetext with general comments concerning the result. </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="500"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ResultBatchIdentifier" minOccurs="0">       <xs:annotation>         <xs:documentation>The batch identifier assigned by the analytical laboratory to represent a batch of samples run on an instrument. An analytical batch is defined as a group of samples run collectively on an instrument for a given day.  Analytical batches may span one or more days.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element ResultDescriptionType/CharacteristicName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 content  simple
annotation	documentation The object, property, or substance which is evaluated or enumerated by either a direct field measurement, a direct field observation, or by laboratory analysis of material collected in the field. In the COEnvEDD, this maps to LabBatchQC.ParamID (CAS Number).
source	<xs:element name="CharacteristicName" type="xs:string">   <xs:annotation>     <xs:documentation>The object, property, or substance which is evaluated or enumerated by either a direct field measurement, a direct field observation, or by laboratory analysis of material collected in the field. In the COEnvEDD, this maps to LabBatchQC.ParamID (CAS Number).</xs:documentation>   </xs:annotation> </xs:element>

element ResultDescriptionType/ResultAnalyticalMethod

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	extension of co:ResultAnalyticalMethodType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	co:MethodDescriptionText co:MethodIdentifier co:MethodQualifierTypeName co:TestType co:ResultText co:Dilution co:FractionType co:MDC co:RequestedMDC
annotation	documentation Identifies the procedures, processes, and references required to determine the analytical methods used to obtain a result.
source	<xs:element name="ResultAnalyticalMethod" minOccurs="0">   <xs:annotation>     <xs:documentation>Identifies the procedures, processes, and references required to determine the analytical methods used to obtain a result.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="co:ResultAnalyticalMethodType"/>     </xs:complexContent>   </xs:complexType> </xs:element>

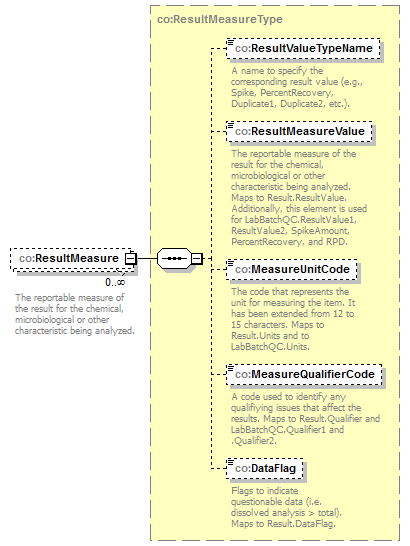

element ResultDescriptionType/ResultMeasure

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:ResultMeasureType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	co:ResultValueTypeName co:ResultMeasureValue co:MeasureUnitCode co:MeasureQualifierCode co:DataFlag
annotation	documentation The reportable measure of the result for the chemical, microbiological or other characteristic being analyzed.
source	<xs:element name="ResultMeasure" type="co:ResultMeasureType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>The reportable measure of the result for the chemical, microbiological or other characteristic being analyzed.</xs:documentation>   </xs:annotation> </xs:element>

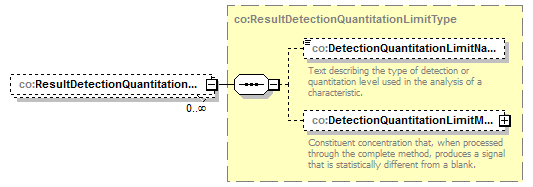

element ResultDescriptionType/ResultDetectionQuantitationLimit

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:ResultDetectionQuantitationLimitType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	co:DetectionQuantitationLimitName co:DetectionQuantitationLimitMeasure
source	<xs:element name="ResultDetectionQuantitationLimit" type="co:ResultDetectionQuantitationLimitType" minOccurs="0" maxOccurs="unbounded"/>

element ResultDescriptionType/ResultCommentText

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  500
annotation	documentation Freetext with general comments concerning the result.
source	<xs:element name="ResultCommentText" minOccurs="0">   <xs:annotation>     <xs:documentation>Freetext with general comments concerning the result. </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="500"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultDescriptionType/ResultBatchIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  50
annotation	documentation The batch identifier assigned by the analytical laboratory to represent a batch of samples run on an instrument. An analytical batch is defined as a group of samples run collectively on an instrument for a given day.  Analytical batches may span one or more days.
source	<xs:element name="ResultBatchIdentifier" minOccurs="0">   <xs:annotation>     <xs:documentation>The batch identifier assigned by the analytical laboratory to represent a batch of samples run on an instrument. An analytical batch is defined as a group of samples run collectively on an instrument for a given day.  Analytical batches may span one or more days.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

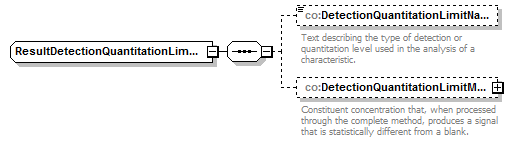

complexType ResultDetectionQuantitationLimitType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:DetectionQuantitationLimitName co:DetectionQuantitationLimitMeasure
used by	element  ResultDescriptionType/ResultDetectionQuantitationLimit
source	<xs:complexType name="ResultDetectionQuantitationLimitType">   <xs:sequence>     <xs:element name="DetectionQuantitationLimitName" minOccurs="0">       <xs:annotation>         <xs:documentation>Text describing the type of detection or quantitation level used in the analysis of a characteristic.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="DetectionQuantitationLimitMeasure" type="co:DetectionQuantitationLimitMeasureType" minOccurs="0">       <xs:annotation>         <xs:documentation>Constituent concentration that, when processed through the complete method, produces a signal that is statistically different from a blank.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ResultDetectionQuantitationLimitType/DetectionQuantitationLimitName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
properties	isRef  0 minOcc  0 maxOcc  1
annotation	documentation Text describing the type of detection or quantitation level used in the analysis of a characteristic.
source	<xs:element name="DetectionQuantitationLimitName" minOccurs="0">   <xs:annotation>     <xs:documentation>Text describing the type of detection or quantitation level used in the analysis of a characteristic.</xs:documentation>   </xs:annotation> </xs:element>

element ResultDetectionQuantitationLimitType/DetectionQuantitationLimitMeasure

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:DetectionQuantitationLimitMeasureType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	co:MeasureValue co:MeasureUnitCode
annotation	documentation Constituent concentration that, when processed through the complete method, produces a signal that is statistically different from a blank.
source	<xs:element name="DetectionQuantitationLimitMeasure" type="co:DetectionQuantitationLimitMeasureType" minOccurs="0">   <xs:annotation>     <xs:documentation>Constituent concentration that, when processed through the complete method, produces a signal that is statistically different from a blank.</xs:documentation>   </xs:annotation> </xs:element>

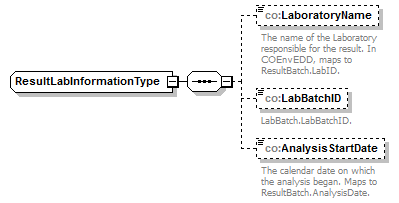

complexType ResultLabInformationType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:LaboratoryName co:LabBatchID co:AnalysisStartDate
used by	element  ResultBatchDescriptionType/ResultLabInformation
source	<xs:complexType name="ResultLabInformationType">   <xs:sequence>     <xs:element name="LaboratoryName" type="xs:integer" minOccurs="0">       <xs:annotation>         <xs:documentation>The name of the Laboratory responsible for the result. In COEnvEDD, maps to ResultBatch.LabID.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="LabBatchID" type="xs:string" minOccurs="0">       <xs:annotation>         <xs:documentation>LabBatch.LabBatchID.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="AnalysisStartDate" type="xs:dateTime" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>The calendar date on which the analysis began. Maps to ResultBatch.AnalysisDate.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element ResultLabInformationType/LaboratoryName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:integer
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The name of the Laboratory responsible for the result. In COEnvEDD, maps to ResultBatch.LabID.
source	<xs:element name="LaboratoryName" type="xs:integer" minOccurs="0">   <xs:annotation>     <xs:documentation>The name of the Laboratory responsible for the result. In COEnvEDD, maps to ResultBatch.LabID.</xs:documentation>   </xs:annotation> </xs:element>

element ResultLabInformationType/LabBatchID

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation LabBatch.LabBatchID.
source	<xs:element name="LabBatchID" type="xs:string" minOccurs="0">   <xs:annotation>     <xs:documentation>LabBatch.LabBatchID.</xs:documentation>   </xs:annotation> </xs:element>

element ResultLabInformationType/AnalysisStartDate

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The calendar date on which the analysis began. Maps to ResultBatch.AnalysisDate.
source	<xs:element name="AnalysisStartDate" type="xs:dateTime" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>The calendar date on which the analysis began. Maps to ResultBatch.AnalysisDate.</xs:documentation>   </xs:annotation> </xs:element>

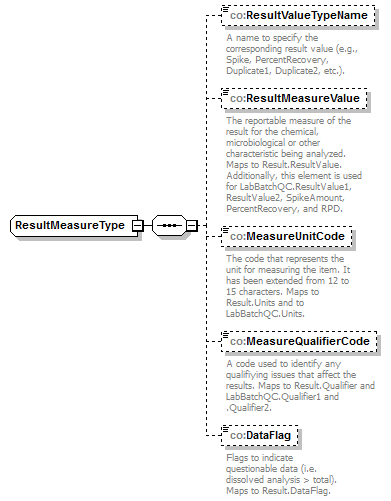

complexType ResultMeasureType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:ResultValueTypeName co:ResultMeasureValue co:MeasureUnitCode co:MeasureQualifierCode co:DataFlag
used by	element  ResultDescriptionType/ResultMeasure
source	<xs:complexType name="ResultMeasureType">   <xs:sequence>     <xs:element name="ResultValueTypeName" minOccurs="0">       <xs:annotation>         <xs:documentation>A name to specify the corresponding result value (e.g., Spike, PercentRecovery, Duplicate1, Duplicate2, etc.).</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="20"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ResultMeasureValue" type="co:float-or-empty" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>The reportable measure of the result for the chemical, microbiological or other characteristic being analyzed. Maps to Result.ResultValue. Additionally, this element is used for LabBatchQC.ResultValue1, ResultValue2, SpikeAmount, PercentRecovery, and RPD.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="MeasureUnitCode" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>The code that represents the unit for measuring the item. It has been extended from 12 to 15 characters. Maps to Result.Units and to LabBatchQC.Units.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="15"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="MeasureQualifierCode" minOccurs="0">       <xs:annotation>         <xs:documentation>A code used to identify any qualifiying issues that affect the results. Maps to Result.Qualifier and LabBatchQC.Qualifier1 and .Qualifier2.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="5"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="DataFlag" minOccurs="0">       <xs:annotation>         <xs:documentation>Flags to indicate questionable data (i.e. dissolved analysis > total). Maps to Result.DataFlag.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:sequence> </xs:complexType>

element ResultMeasureType/ResultValueTypeName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation A name to specify the corresponding result value (e.g., Spike, PercentRecovery, Duplicate1, Duplicate2, etc.).
source	<xs:element name="ResultValueTypeName" minOccurs="0">   <xs:annotation>     <xs:documentation>A name to specify the corresponding result value (e.g., Spike, PercentRecovery, Duplicate1, Duplicate2, etc.).</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultMeasureType/ResultMeasureValue

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:float-or-empty
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation The reportable measure of the result for the chemical, microbiological or other characteristic being analyzed. Maps to Result.ResultValue. Additionally, this element is used for LabBatchQC.ResultValue1, ResultValue2, SpikeAmount, PercentRecovery, and RPD.
source	<xs:element name="ResultMeasureValue" type="co:float-or-empty" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>The reportable measure of the result for the chemical, microbiological or other characteristic being analyzed. Maps to Result.ResultValue. Additionally, this element is used for LabBatchQC.ResultValue1, ResultValue2, SpikeAmount, PercentRecovery, and RPD.</xs:documentation>   </xs:annotation> </xs:element>

element ResultMeasureType/MeasureUnitCode

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  annotation  maxLength  15
annotation	documentation The code that represents the unit for measuring the item. It has been extended from 12 to 15 characters. Maps to Result.Units and to LabBatchQC.Units.
source	<xs:element name="MeasureUnitCode" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>The code that represents the unit for measuring the item. It has been extended from 12 to 15 characters. Maps to Result.Units and to LabBatchQC.Units.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="15"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultMeasureType/MeasureQualifierCode

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  5
annotation	documentation A code used to identify any qualifiying issues that affect the results. Maps to Result.Qualifier and LabBatchQC.Qualifier1 and .Qualifier2.
source	<xs:element name="MeasureQualifierCode" minOccurs="0">   <xs:annotation>     <xs:documentation>A code used to identify any qualifiying issues that affect the results. Maps to Result.Qualifier and LabBatchQC.Qualifier1 and .Qualifier2.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="5"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element ResultMeasureType/DataFlag

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  50
annotation	documentation Flags to indicate questionable data (i.e. dissolved analysis > total). Maps to Result.DataFlag.
source	<xs:element name="DataFlag" minOccurs="0">   <xs:annotation>     <xs:documentation>Flags to indicate questionable data (i.e. dissolved analysis > total). Maps to Result.DataFlag.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

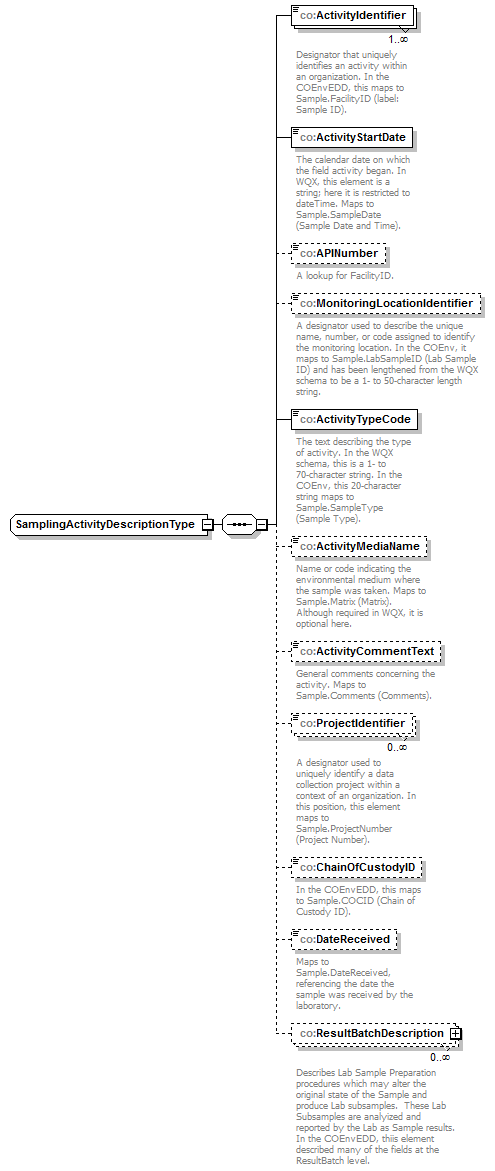

complexType SamplingActivityDescriptionType

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
children	co:ActivityIdentifier co:ActivityStartDate co:APINumber co:MonitoringLocationIdentifier co:ActivityTypeCode co:ActivityMediaName co:ActivityCommentText co:ProjectIdentifier co:ChainOfCustodyID co:DateReceived co:ResultBatchDescription
used by	element  OrganizationDescriptionType/SamplingActivityDescription
source	<xs:complexType name="SamplingActivityDescriptionType">   <xs:sequence>     <xs:element name="ActivityIdentifier" type="xs:string" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Designator that uniquely identifies an activity within an organization. In the COEnvEDD, this maps to Sample.FacilityID (label: Sample ID). </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ActivityStartDate" type="xs:dateTime">       <xs:annotation>         <xs:documentation>The calendar date on which the field activity began. In WQX, this element is a string; here it is restricted to dateTime. Maps to Sample.SampleDate (Sample Date and Time). </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="APINumber" minOccurs="0">       <xs:annotation>         <xs:documentation>A lookup for FacilityID.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="14"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="MonitoringLocationIdentifier" minOccurs="0">       <xs:annotation>         <xs:documentation>A designator used to describe the unique name, number, or code assigned to identify the monitoring location. In the COEnv, it maps to Sample.LabSampleID (Lab Sample ID) and has been lengthened from the WQX schema to be a 1- to 50-character length string.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="50"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ActivityTypeCode">       <xs:annotation>         <xs:documentation>The text describing the type of activity. In the WQX schema, this is a 1- to 70-character string. In the COEnv, this 20-character string maps to Sample.SampleType (Sample Type).   </xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="20"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ActivityMediaName" minOccurs="0">       <xs:annotation>         <xs:documentation>Name or code indicating the environmental medium where the sample was taken. Maps to Sample.Matrix (Matrix).  Although required in WQX, it is optional here.</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="20"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ActivityCommentText" minOccurs="0">       <xs:annotation>         <xs:documentation>General comments concerning the activity. Maps to Sample.Comments (Comments).</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="4000"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="ProjectIdentifier" type="xs:string" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>A designator used to uniquely identify a data collection project within a context of an organization. In this position, this element maps to Sample.ProjectNumber (Project Number).</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ChainOfCustodyID" minOccurs="0">       <xs:annotation>         <xs:documentation>In the COEnvEDD, this maps to Sample.COCID (Chain of Custody ID).</xs:documentation>       </xs:annotation>       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:maxLength value="20"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="DateReceived" type="xs:dateTime" nillable="true" minOccurs="0">       <xs:annotation>         <xs:documentation>Maps to Sample.DateReceived, referencing the date the sample was received by the laboratory.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="ResultBatchDescription" type="co:ResultBatchDescriptionType" minOccurs="0" maxOccurs="unbounded">       <xs:annotation>         <xs:documentation>Describes Lab Sample Preparation procedures which may alter the original state of the Sample and produce Lab subsamples.  These Lab Subsamples are analyized and reported by the Lab as Sample results. In the COEnvEDD, thiis element described many of the fields at the ResultBatch level.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element SamplingActivityDescriptionType/ActivityIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  1 maxOcc  unbounded content  simple
annotation	documentation Designator that uniquely identifies an activity within an organization. In the COEnvEDD, this maps to Sample.FacilityID (label: Sample ID).
source	<xs:element name="ActivityIdentifier" type="xs:string" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Designator that uniquely identifies an activity within an organization. In the COEnvEDD, this maps to Sample.FacilityID (label: Sample ID). </xs:documentation>   </xs:annotation> </xs:element>

element SamplingActivityDescriptionType/ActivityStartDate

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:dateTime
properties	isRef  0 content  simple
annotation	documentation The calendar date on which the field activity began. In WQX, this element is a string; here it is restricted to dateTime. Maps to Sample.SampleDate (Sample Date and Time).
source	<xs:element name="ActivityStartDate" type="xs:dateTime">   <xs:annotation>     <xs:documentation>The calendar date on which the field activity began. In WQX, this element is a string; here it is restricted to dateTime. Maps to Sample.SampleDate (Sample Date and Time). </xs:documentation>   </xs:annotation> </xs:element>

element SamplingActivityDescriptionType/APINumber

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  14
annotation	documentation A lookup for FacilityID.
source	<xs:element name="APINumber" minOccurs="0">   <xs:annotation>     <xs:documentation>A lookup for FacilityID.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="14"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SamplingActivityDescriptionType/MonitoringLocationIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  50
annotation	documentation A designator used to describe the unique name, number, or code assigned to identify the monitoring location. In the COEnv, it maps to Sample.LabSampleID (Lab Sample ID) and has been lengthened from the WQX schema to be a 1- to 50-character length string.
source	<xs:element name="MonitoringLocationIdentifier" minOccurs="0">   <xs:annotation>     <xs:documentation>A designator used to describe the unique name, number, or code assigned to identify the monitoring location. In the COEnv, it maps to Sample.LabSampleID (Lab Sample ID) and has been lengthened from the WQX schema to be a 1- to 50-character length string.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="50"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SamplingActivityDescriptionType/ActivityTypeCode

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation The text describing the type of activity. In the WQX schema, this is a 1- to 70-character string. In the COEnv, this 20-character string maps to Sample.SampleType (Sample Type).
source	<xs:element name="ActivityTypeCode">   <xs:annotation>     <xs:documentation>The text describing the type of activity. In the WQX schema, this is a 1- to 70-character string. In the COEnv, this 20-character string maps to Sample.SampleType (Sample Type).   </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SamplingActivityDescriptionType/ActivityMediaName

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation Name or code indicating the environmental medium where the sample was taken. Maps to Sample.Matrix (Matrix).  Although required in WQX, it is optional here.
source	<xs:element name="ActivityMediaName" minOccurs="0">   <xs:annotation>     <xs:documentation>Name or code indicating the environmental medium where the sample was taken. Maps to Sample.Matrix (Matrix).  Although required in WQX, it is optional here.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SamplingActivityDescriptionType/ActivityCommentText

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  4000
annotation	documentation General comments concerning the activity. Maps to Sample.Comments (Comments).
source	<xs:element name="ActivityCommentText" minOccurs="0">   <xs:annotation>     <xs:documentation>General comments concerning the activity. Maps to Sample.Comments (Comments).</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="4000"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SamplingActivityDescriptionType/ProjectIdentifier

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	documentation A designator used to uniquely identify a data collection project within a context of an organization. In this position, this element maps to Sample.ProjectNumber (Project Number).
source	<xs:element name="ProjectIdentifier" type="xs:string" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>A designator used to uniquely identify a data collection project within a context of an organization. In this position, this element maps to Sample.ProjectNumber (Project Number).</xs:documentation>   </xs:annotation> </xs:element>

element SamplingActivityDescriptionType/ChainOfCustodyID

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	restriction of xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  annotation  maxLength  20
annotation	documentation In the COEnvEDD, this maps to Sample.COCID (Chain of Custody ID).
source	<xs:element name="ChainOfCustodyID" minOccurs="0">   <xs:annotation>     <xs:documentation>In the COEnvEDD, this maps to Sample.COCID (Chain of Custody ID).</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:maxLength value="20"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element SamplingActivityDescriptionType/DateReceived

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	xs:dateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple nillable  true
annotation	documentation Maps to Sample.DateReceived, referencing the date the sample was received by the laboratory.
source	<xs:element name="DateReceived" type="xs:dateTime" nillable="true" minOccurs="0">   <xs:annotation>     <xs:documentation>Maps to Sample.DateReceived, referencing the date the sample was received by the laboratory.</xs:documentation>   </xs:annotation> </xs:element>

element SamplingActivityDescriptionType/ResultBatchDescription

diagram
namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	co:ResultBatchDescriptionType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	co:ResultLabInformation co:MethodName co:PreparationStartDate co:StartDate co:EndDate co:InitVol co:InitVolUnits co:FinalVol co:FinalVolUnits co:ResultWeightBasisText co:CommentText co:FileName co:ColumnNumber co:ResultDescription co:BatchQCDescription
annotation	documentation Describes Lab Sample Preparation procedures which may alter the original state of the Sample and produce Lab subsamples.  These Lab Subsamples are analyized and reported by the Lab as Sample results. In the COEnvEDD, thiis element described many of the fields at the ResultBatch level.
source	<xs:element name="ResultBatchDescription" type="co:ResultBatchDescriptionType" minOccurs="0" maxOccurs="unbounded">   <xs:annotation>     <xs:documentation>Describes Lab Sample Preparation procedures which may alter the original state of the Sample and produce Lab subsamples.  These Lab Subsamples are analyized and reported by the Lab as Sample results. In the COEnvEDD, thiis element described many of the fields at the ResultBatch level.</xs:documentation>   </xs:annotation> </xs:element>

simpleType float-or-empty

namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	union of (xs:float, restriction of xs:string)
used by	elements  ResultAnalyticalMethodType/Dilution ResultBatchDescriptionType/FinalVol ResultBatchDescriptionType/InitVol ResultAnalyticalMethodType/MDC DetectionQuantitationLimitMeasureType/MeasureValue ResultAnalyticalMethodType/RequestedMDC ResultMeasureType/ResultMeasureValue
source	<xs:simpleType name="float-or-empty">   <xs:union memberTypes="xs:float">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:enumeration value=""/>       </xs:restriction>     </xs:simpleType>   </xs:union>   <!--<xs:union memberTypes="xs:float empty-string" />--> </xs:simpleType>

simpleType integer-or-empty

namespace	http://www.rbdmsonline.org/xml/COEnvEDD.xsd
type	union of (xs:integer, restriction of xs:string)
source	<xs:simpleType name="integer-or-empty">   <xs:union memberTypes="xs:integer">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:enumeration value=""/>       </xs:restriction>     </xs:simpleType>   </xs:union>   <!--<xs:union memberTypes="xs:integer empty-string" />--> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
